Linear Interconnect Network (LIN)

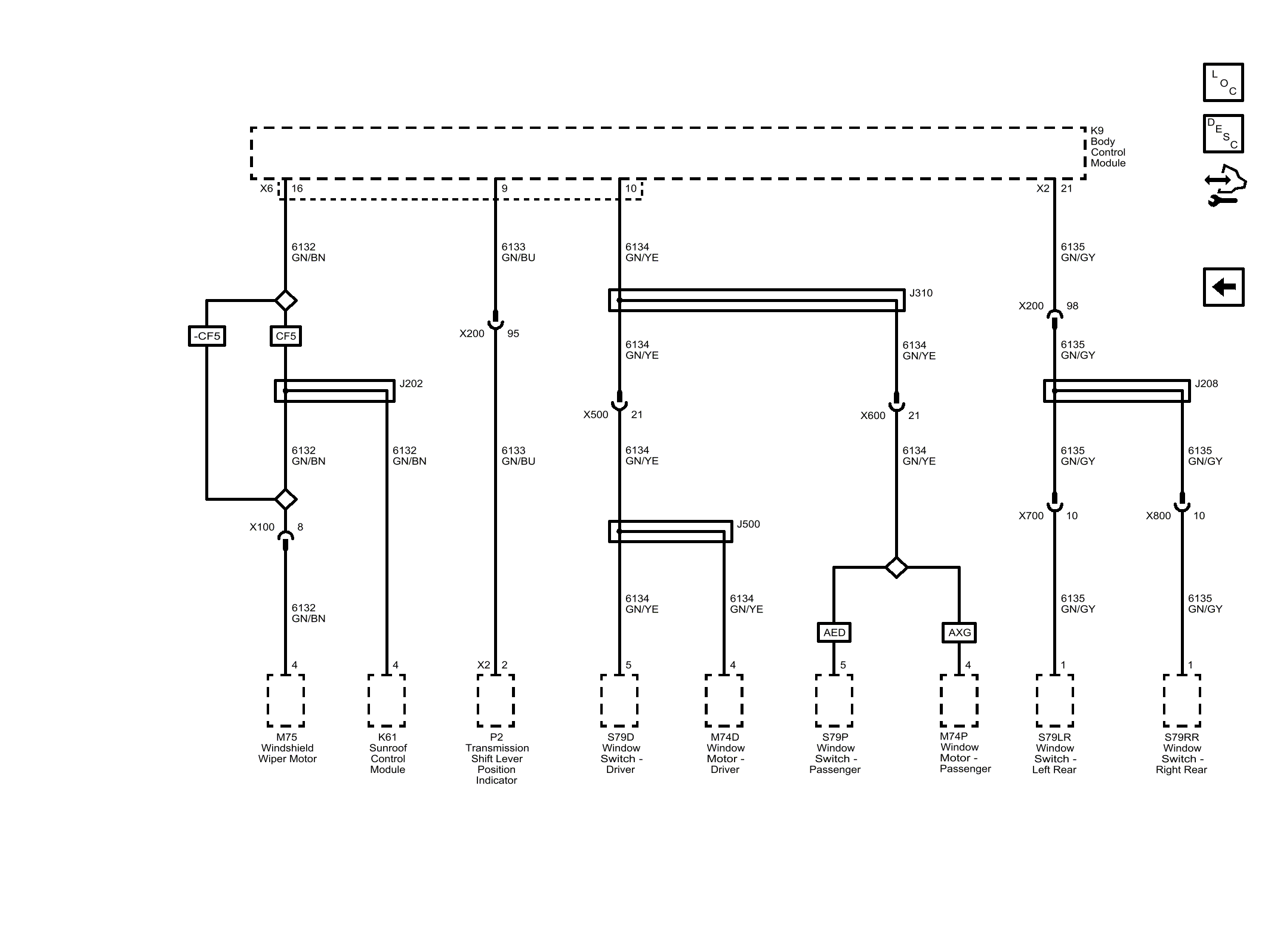

Fig 1: Linear Interconnect Network Wiring Schematic (LIN)
GM2852674Courtesy of GENERAL MOTORS COMPANY
