Cam Chain Installation

WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Keep the cam chain away from magnetic fields.
  1. Set the crankshaft to top dead center (TDC). Align the TDC mark (A) on the crankshaft sprocket with the pointer (B) on the oil pump.
    Fig 1: Aligning TDC Mark On Crankshaft Sprocket With Pointer On Oil Pump
    G06428873
  2. Set the No. 1 piston at TDC. The UP mark (A) on the camshaft sprocket should be at the top, and the TDC grooves (B) on the camshaft sprocket should line up with the top edge of the cylinder head.
    Fig 2: Identifying Camshaft Sprocket Mark Location
    G06428874
  3. Install the cam chain on the crankshaft sprocket with the colored piece (A) aligned with the TDC mark (B) on the crankshaft sprocket.
    Fig 3: Aligning Mark Cam Chain And Crankshaft Sprocket
    G06428875
  4. Install the cam chain on the camshaft sprocket with the pointer (A) centered between the two colored pieces (B).
    Fig 4: Identifying Cam Chain On Camshaft Sprocket With Pointer
    G06428876
  5. Apply new engine oil to the threads of the cam chain tensioner mounting bolt (A).

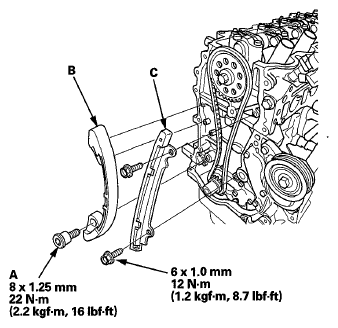

    Fig 5: Cam Chain Tensioner With Torque Specifications And Cam Chain Guide
    G06428877
  6. Install the cam chain tensioner (B) and the cam chain guide (C).
  7. Install the cam chain tensioner slider, and tighten the lower side bolt loosely.
    Fig 6: Identifying Cam Chain Tensioner Slider
    G06428878
  8. Apply new engine oil to the sliding surface of the cam chain tensioner slider (A).
    Fig 7: Sliding Surface Of Cam Chain Tensioner Slider And Bolts With Torque Specifications
    G06428879
  9. Rotate the cam chain tensioner slider clockwise to compress the cam chain tensioner, and install the remaining bolt, then tighten the two bolts.
  10. Check the cam chain case oil seal for damage. If the oil seal is damaged, replace the cam chain case oil seal (see CAM CHAIN CASE OIL SEAL INSTALLATION  ).
  11. Remove all of the old liquid gasket from the cam chain case mating surfaces, the bolts, and the bolt holes.
  12. Clean and dry the cam chain case mating surfaces.
  13. Apply liquid gasket (P/N 08717-0004,08718-0003, or 08718-0009) to the cylinder head and the engine block mating surfaces of the cam chain case and to the inside edge of the bolt holes. Install the component within 5 minutes of applying the liquid gasket.
    NOTE:
    • Apply a 1.5 mm (0.059 in) diameter bead of liquid gasket along the broken line (A).
    • Apply a 3.0 mm (0.118 in) diameter bead of liquid gasket to the upper surface contact areas of the engine block (B).
    • If you apply liquid gasket P/N 08718-0012, the component must be installed within 4 minutes.
    • If too much time has passed after applying the liquid gasket, remove the old liquid gasket and residue, then reapply new liquid gasket.
    Fig 8: Identifying Liquid Gasket Applying Area
    G06428880
  14. Apply liquid gasket (P/N 08717-0004,08718-0003, or 08718-0009) to the oil pan mating surface of the cam chain case and to the inside edge of the bolt holes. Install the component within 5 minutes of applying the liquid gasket.
    NOTE:
    • Apply a 2.5 mm (0.098 in) diameter bead of liquid gasket along the broken line (A).
    • Apply a 5.0 mm (0.20 in) diameter bead of liquid gasket to the shaded area (B).
    • If you apply liquid gasket P/N 08718-0012, the component must be installed within 4 minutes.
    • If too much time has passed after applying the liquid gasket, remove the old liquid gasket and residue, then reapply new liquid gasket.
    Fig 9: Identifying Liquid Gasket Applying Area
    G06428881
  15. Set the edge of the cam chain case (A) on the edge of the oil pan (B), then install the cam chain case on the engine block (C).
    NOTE:
    • When installing the cam chain case, do not slide the bottom surface onto the oil pan mounting surface.
    • Wait at least 30 minutes before filling the engine with oil.
    • Do not run the engine for at least 3 hours after installing the cam chain case.
    Fig 10: Identifying Cam Chain Case On Engine Block
    G06428882
  16. Tighten the cam chain case mounting bolts. Wipe off the excess liquid gasket from the oil pan and the cam chain case mating area.

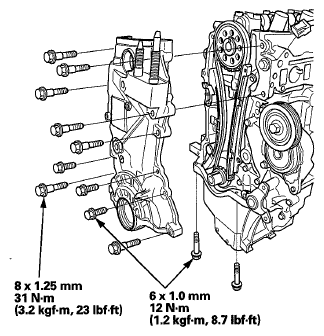

    Fig 11: Cam Chain Case Mounting Bolts With Torque Specifications
    G06428883
  17. Install the cylinder head cover (see CYLINDER HEAD COVER INSTALLATION .)
  18. Install the side engine mount/bracket assembly (A), then tighten the new side engine mount/bracket assembly mounting bolts (B).

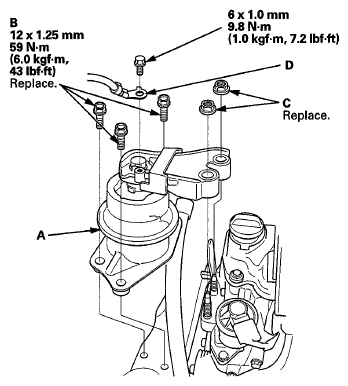

    Fig 12: Engine Mount/Bracket, Assembly Mounting Bolts With Torque Specifications And Ground Cable
    G06428884
  19. Loosely tighten the new side engine mount/bracket assembly mounting nuts (C).
  20. Connect the ground cable (D).
  21. Remove the jack and the wood block.
  22. Remove the air cleaner (see AIR CLEANER REMOVAL/INSTALLATION ).
  23. Loosen the transmission mount bracket mounting bolts and nuts (A).

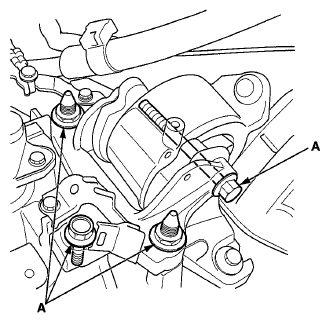

    Fig 13: Identifying Transmission Mount Bracket Mounting Bolts And Nuts
    G06428885
  24. Raise the vehicle on the lift to full height.
  25. Loosen the torque rod mounting bolt and nut (A).
    Fig 14: Identifying Torque Rod Mounting Bolt And Nut
    G06428886
  26. Lower the vehicle on the lift.
  27. Tighten the side engine mount/bracket assembly mounting nuts.

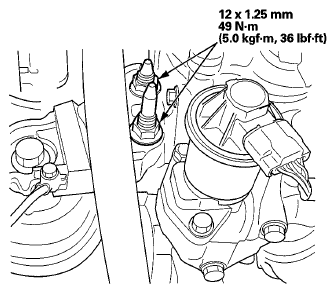

    Fig 15: Engine Mount/Bracket Assembly Mounting Nuts With Torque Specifications
    G06428887
  28. Tighten the transmission mount mounting bolts and nuts in the numbered sequence shown.

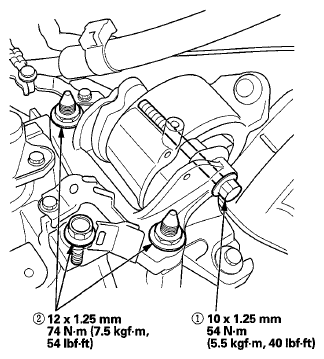

    Fig 16: Transmission Mount Mounting Bolts And Nuts With Torque Specifications
    G06428888
  29. Raise the vehicle on the lift to full height.
  30. Tighten the torque rod mounting bolt and nut in the numbered sequence shown.
    Fig 17: Torque Rod Mounting Bolt And Nut With Torque Specifications
    G06428889
  31. Lower the vehicle on the lift.
  32. Install the air cleaner (see AIR CLEANER REMOVAL/INSTALLATION ).
  33. Install the crankshaft pulley (see CRANKSHAFT PULLEY REMOVAL AND INSTALLATION  ).
  34. Install the water pump pulley (see step 11 WATER PUMP REPLACEMENT ).
  35. Install the drive belt (see DRIVE BELT INSPECTION ).
  36. Tighten water pump pulley mounting bolts (see WATER PUMP REPLACEMENT .)
  37. Install the splash shields (see step 29 ENGINE INSTALLATION ).
  38. Install the front wheel.
  39. Do the crankshaft position (CKP) pattern clear/CKP pattern learn procedure (see CKP PATTERN CLEAR/CKP PATTERN LEARN ).
