Front Fog Lamp Replacement
WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.
Front Fog Lamp Replacement

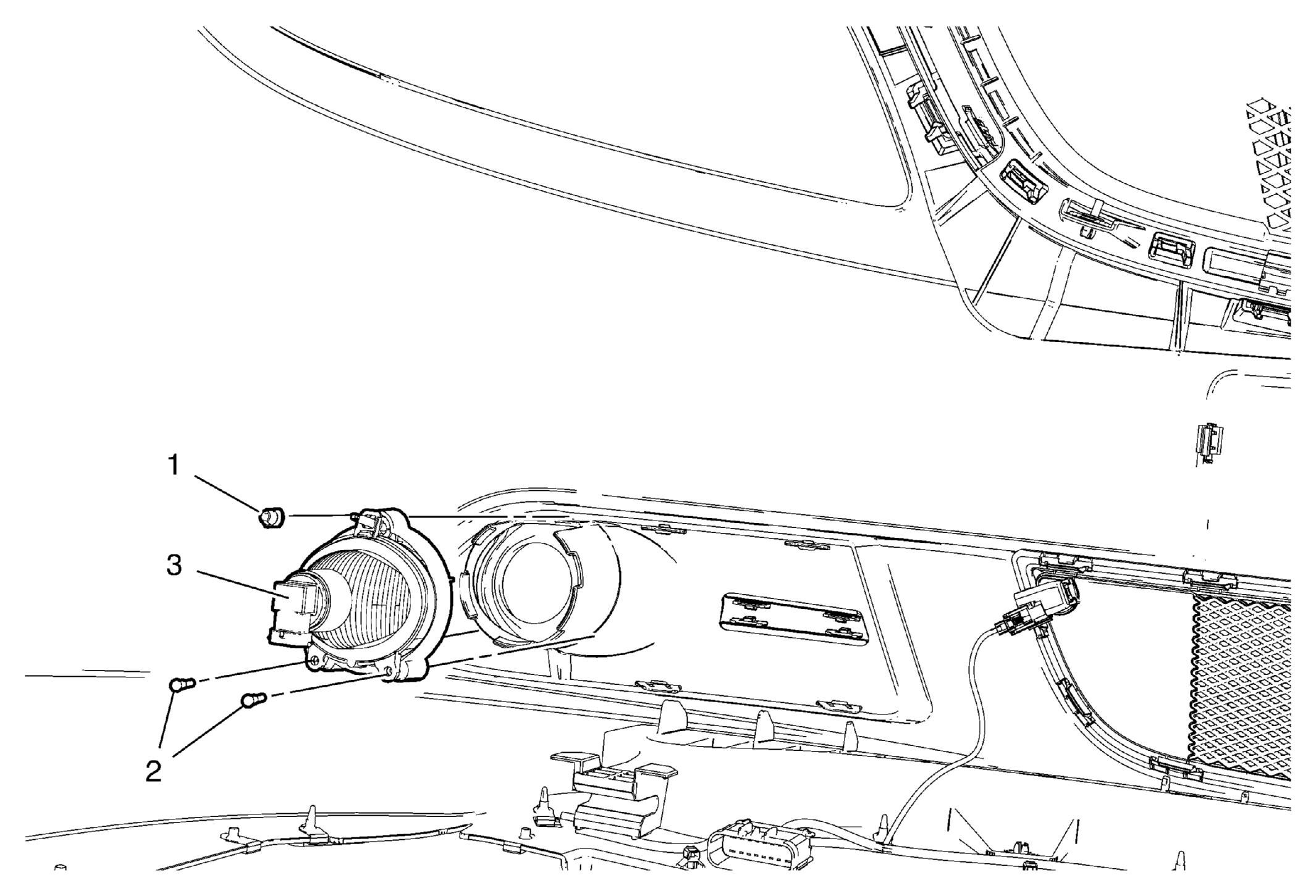

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove front bumper fascia. Refer to Front Bumper Fascia Replacement . |
|
| 1 | Front Fog Lamp Nut
CAUTION:
Refer to Fastener Caution . |
| 2 | Front Fog Lamp Bolt (Qty: 2) |
| 3 | Front Fog Lamp Procedure
|
