Installation Procedure

WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the headlamp leveling actuator to the headlamp and connect the wiring harness connector.

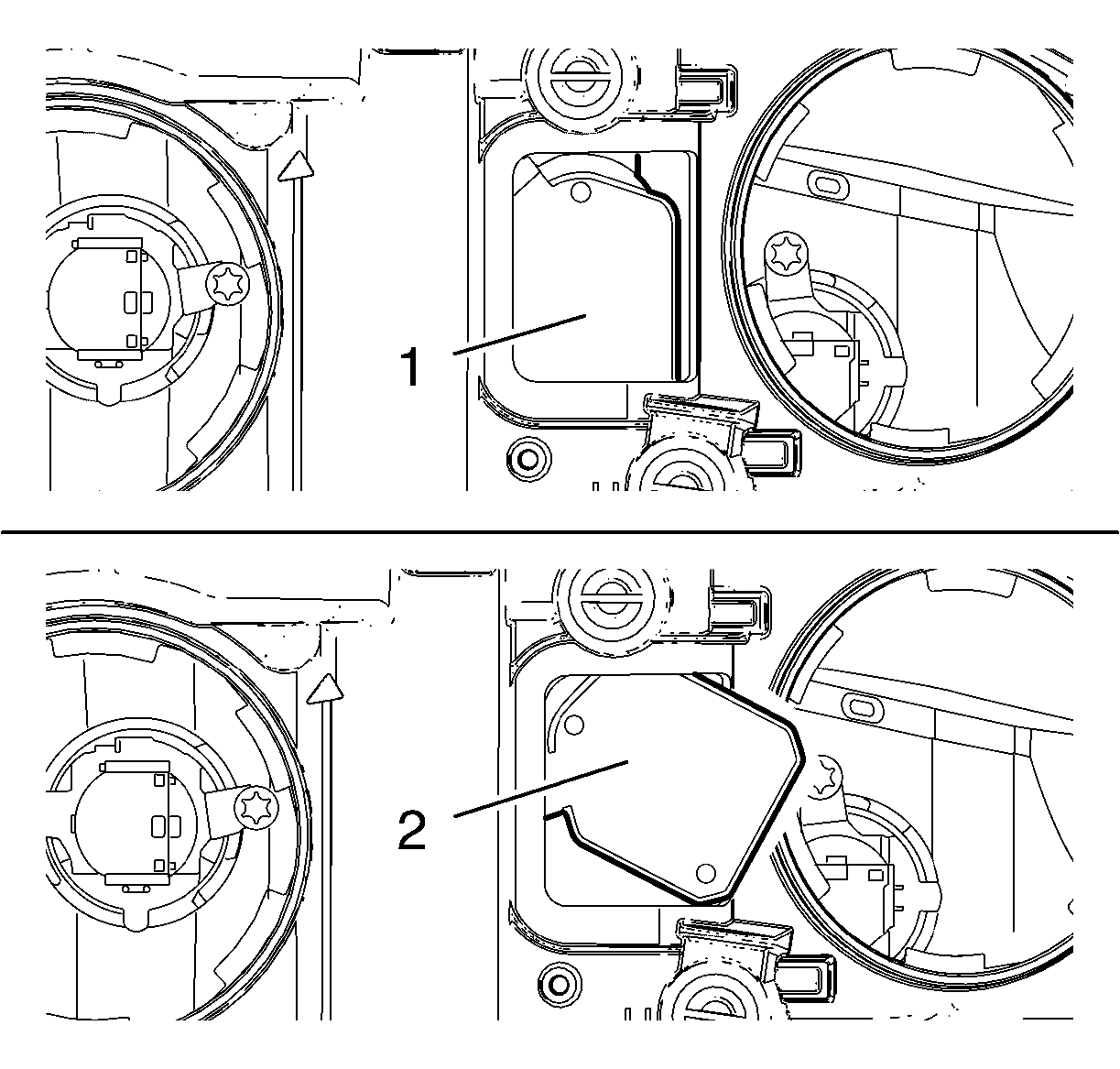

    2. Fig 1: Identifying Original Position And Headlamp Leveling Actuator In Unlocked Position
    GM2190344Courtesy of GENERAL MOTORS COMPANY
  2. Rotate the headlamp leveling actuator from the unlocked position (2) clockwise on the left headlamp (or counter-clockwise on the right one) until the headlamp leveling actuator locks (1).

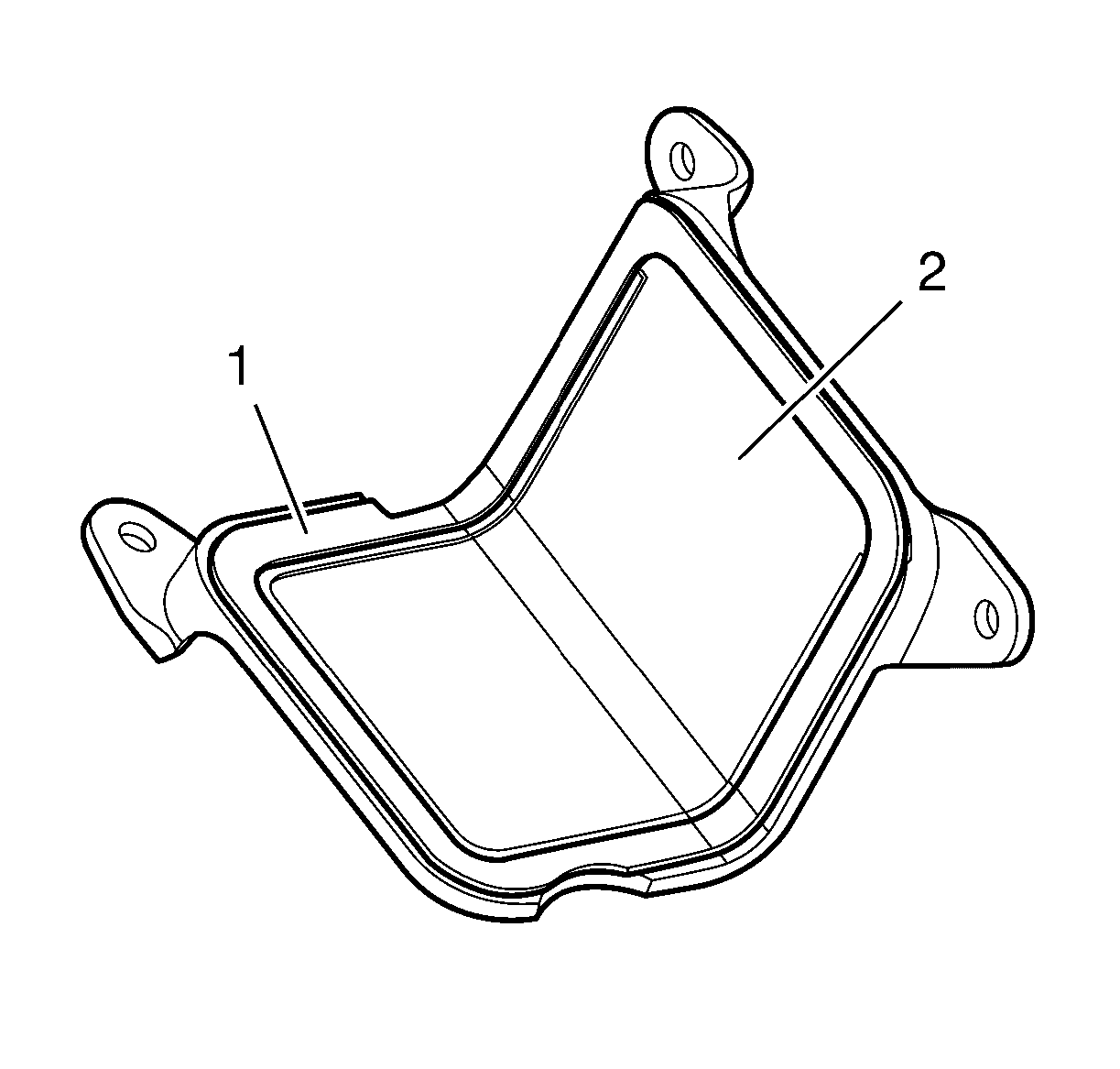

    3. Fig 2: Repair Kit Headlamp Leveling Actuator Cover And Rubber Seal
    GM2190345Courtesy of GENERAL MOTORS COMPANY
  3. Place the rubber seal (1) on the repair kit headlamp leveling actuator cover (2).

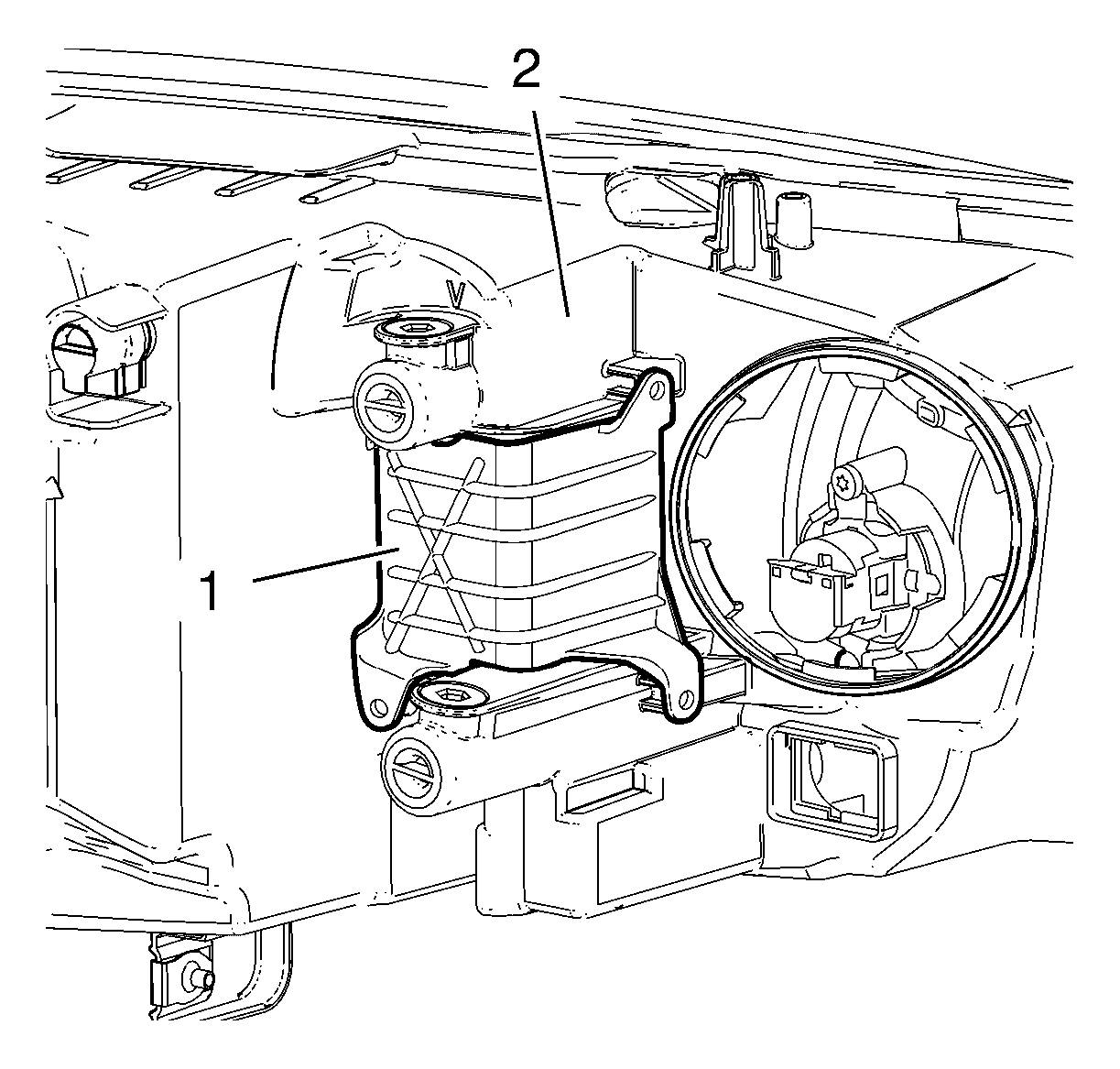

    4. Fig 3: Headlamp And Cover
    GM2190346Courtesy of GENERAL MOTORS COMPANY
  4. Carefully position the cover (1) on the headlamp (2).

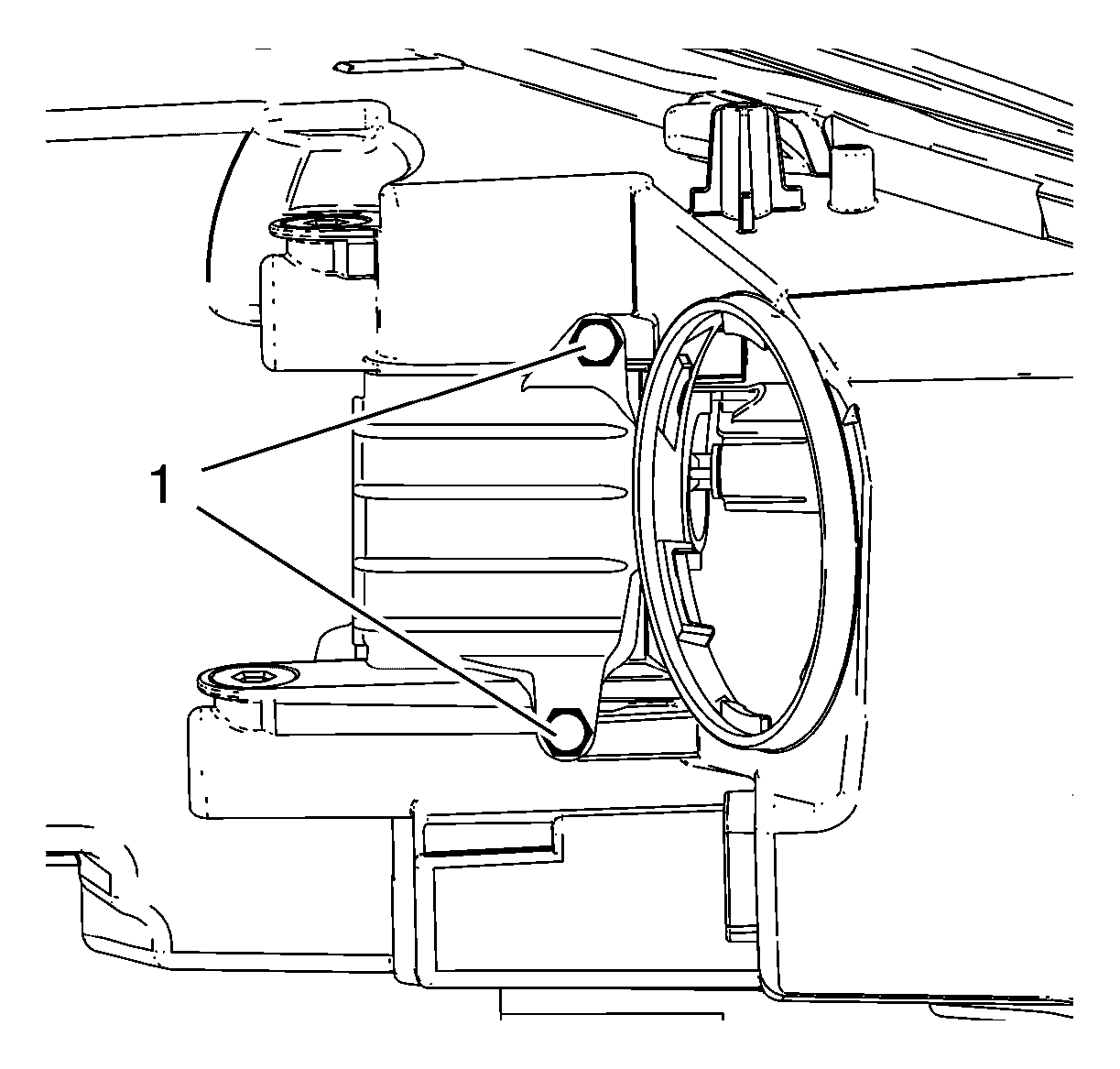

    5. Fig 4: Marked Holes
    GM2190348Courtesy of GENERAL MOTORS COMPANY
  5. Drill two holes through the marked holes (1) on the cover
    • 6 mm (0.24 in) deep
    • 3.7 mm (0.15 in) in diameter

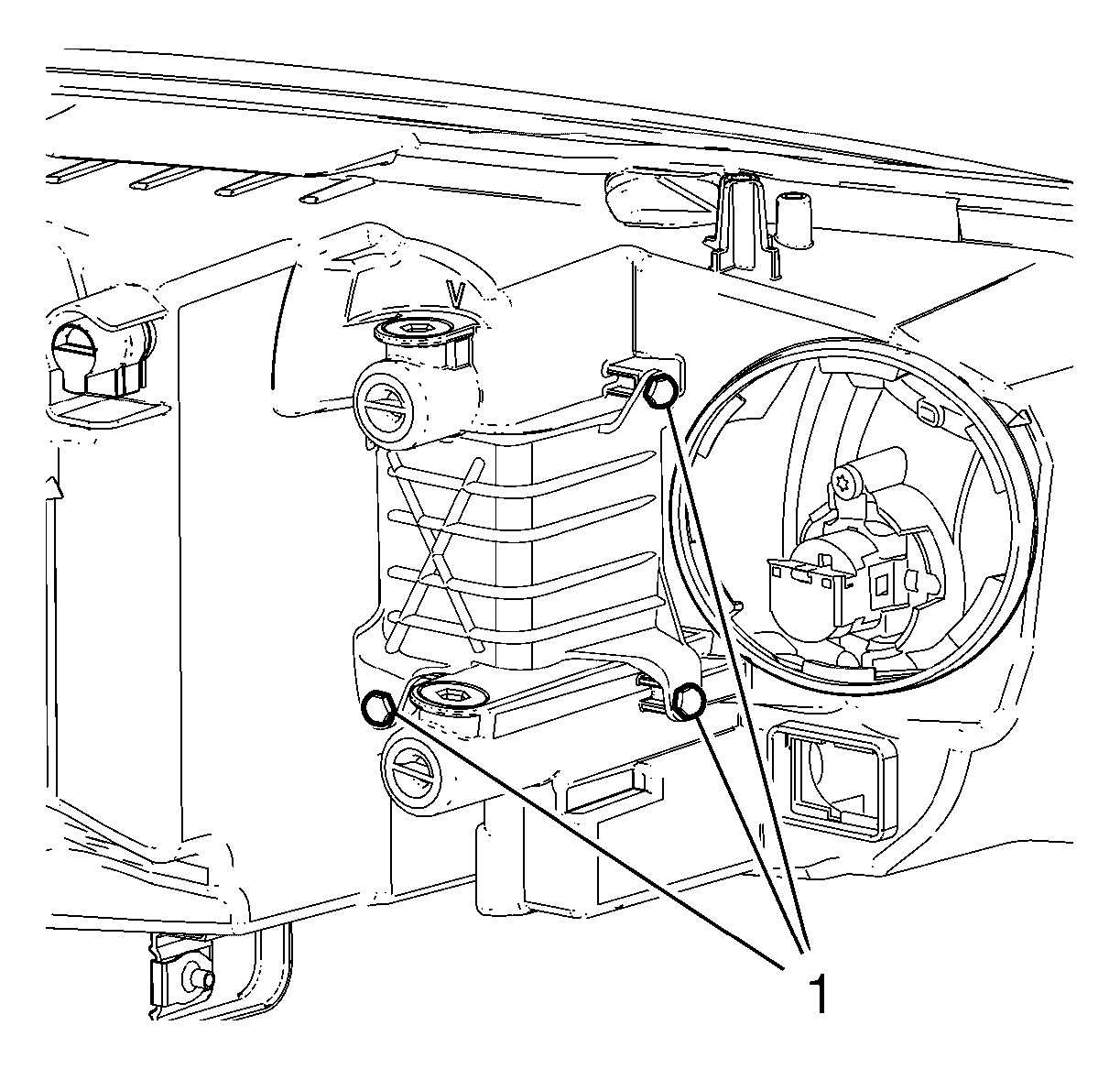

    6. Fig 5: Marked Holes
    GM2190349Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  6. Screw three 4x14 screws into all marked holes (1).
  7. Replace the low beam cap.
  8. Install the headlamp. Refer to Headlamp Replacement (Halogen) .
