Tail Lamp Bulb Replacement
WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.
Tail Lamp Bulb Replacement

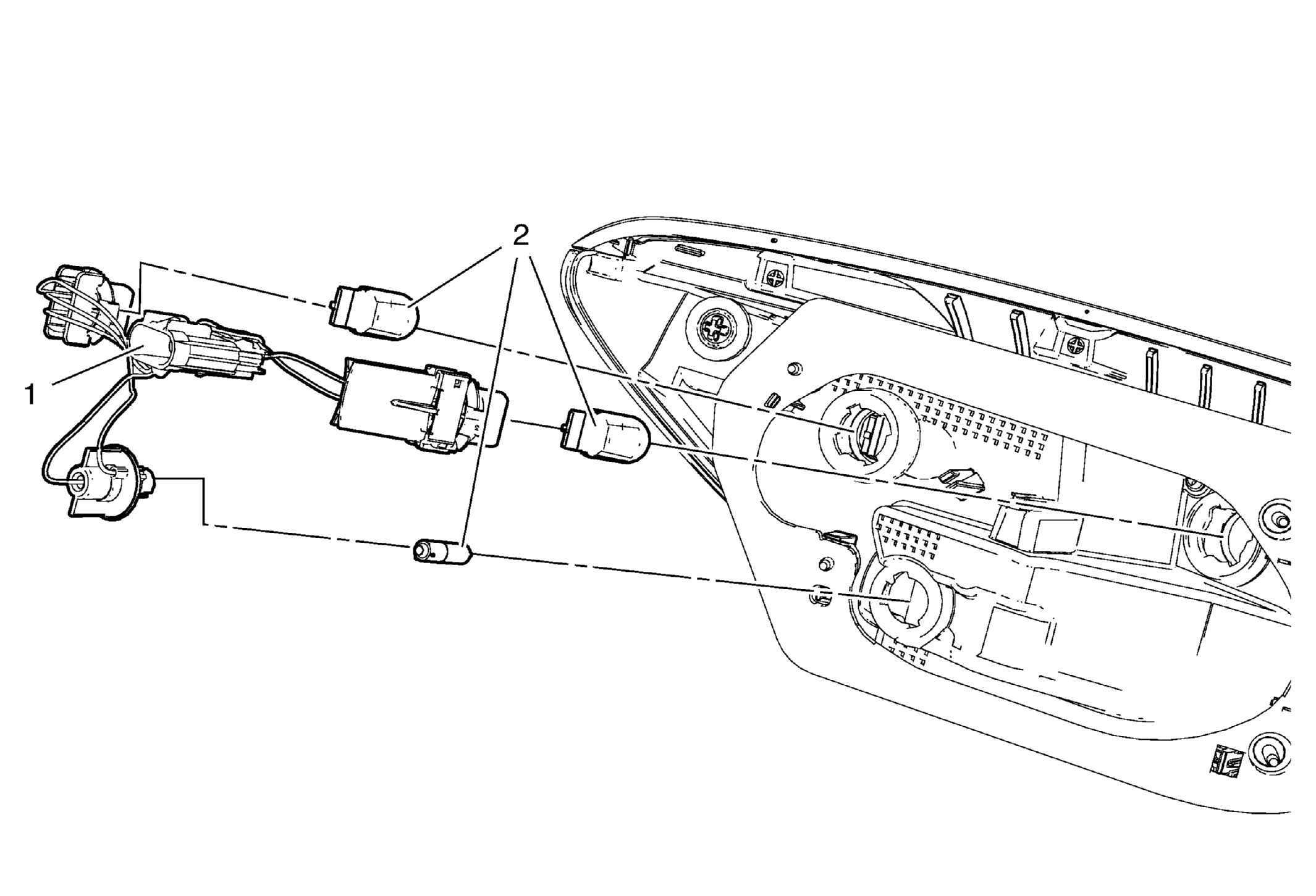

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the rear compartment side trim. Refer to Rear Compartment Side Trim Replacement - Right Side , or Rear Compartment Side Trim Replacement - Left Side . |
|
| 1 | Tail Lamp Wiring Harness |
| 2 | Tail Lamp Bulb (Qty: 3) |
