Combination Light Switch Test/Replacement

WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.

Remove the steering column covers (see GLOVE BOX STRIKER REPLACEMENT ).
Disconnect the 12P connector (A) from the combination light switch (B).

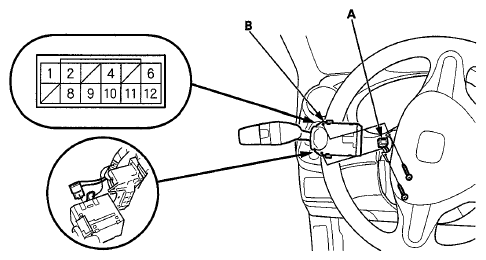

Fig 1: Identifying 12P Connector And Combination Light Switch
Remove the two screws, then slide out the combination light switch.
Inspect the connector terminals to be sure they are all making good contact.
- If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.
- If the terminals look OK, check for continuity between the terminals in each switch position according to the tables.
  - If the continuity is not as specified, replace the switch.
Fig 2: Continuity Chart (1 Of 2)

Fig 3: Continuity Chart (2 Of 2)
