Rear Seat Center Shoulder Belt Replacement

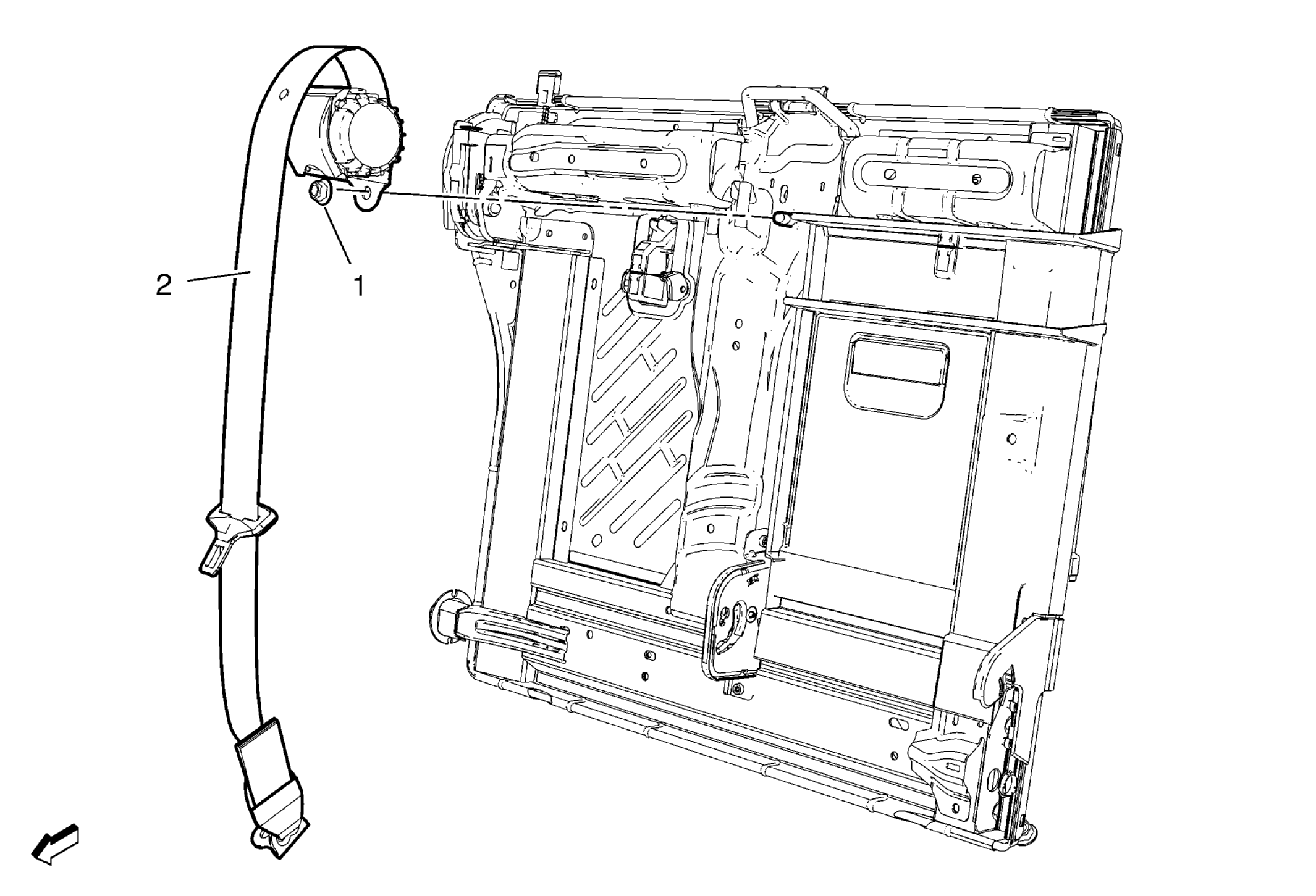

Fig 1: Rear Seat Center Shoulder Belt & Fastener

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear seat back cushion cover and pad. Refer to Rear Seat Back Cushion Cover and Pad Replacement - Right Side .
1	Rear Seat Center Shoulder Belt Fastener CAUTION: Refer to Fastener Caution . Tighten 45 N.m (33 lb ft)
2	Rear Seat Center Shoulder Belt
