Liftgate Components

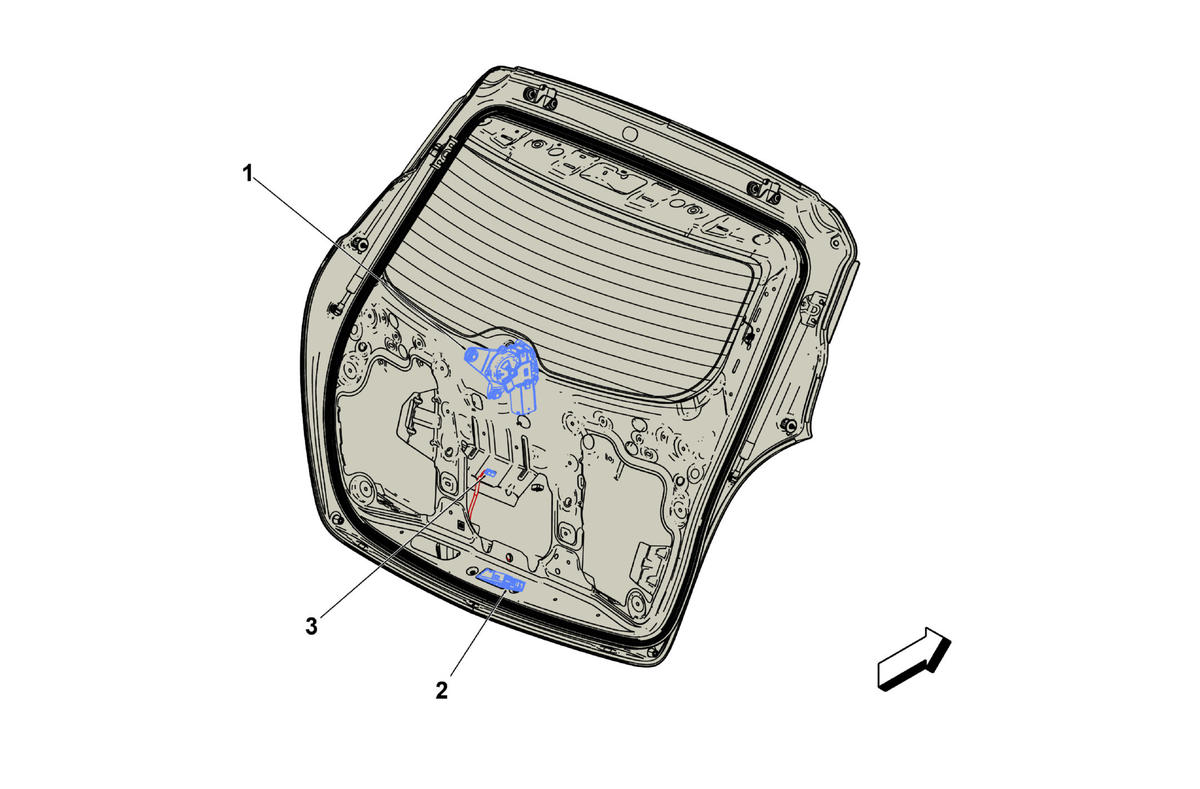

Fig 1: Liftgate Components
GM2840380Courtesy of GENERAL MOTORS COMPANY
Items
1:  M45 Rear Wiper Motor M45 Rear Wiper Motor
2:  M30 Liftgate Latch M30 Liftgate Latch
3:  S46B Liftgate Unlatch Switch S46B Liftgate Unlatch Switch
