Fuel Tank Components

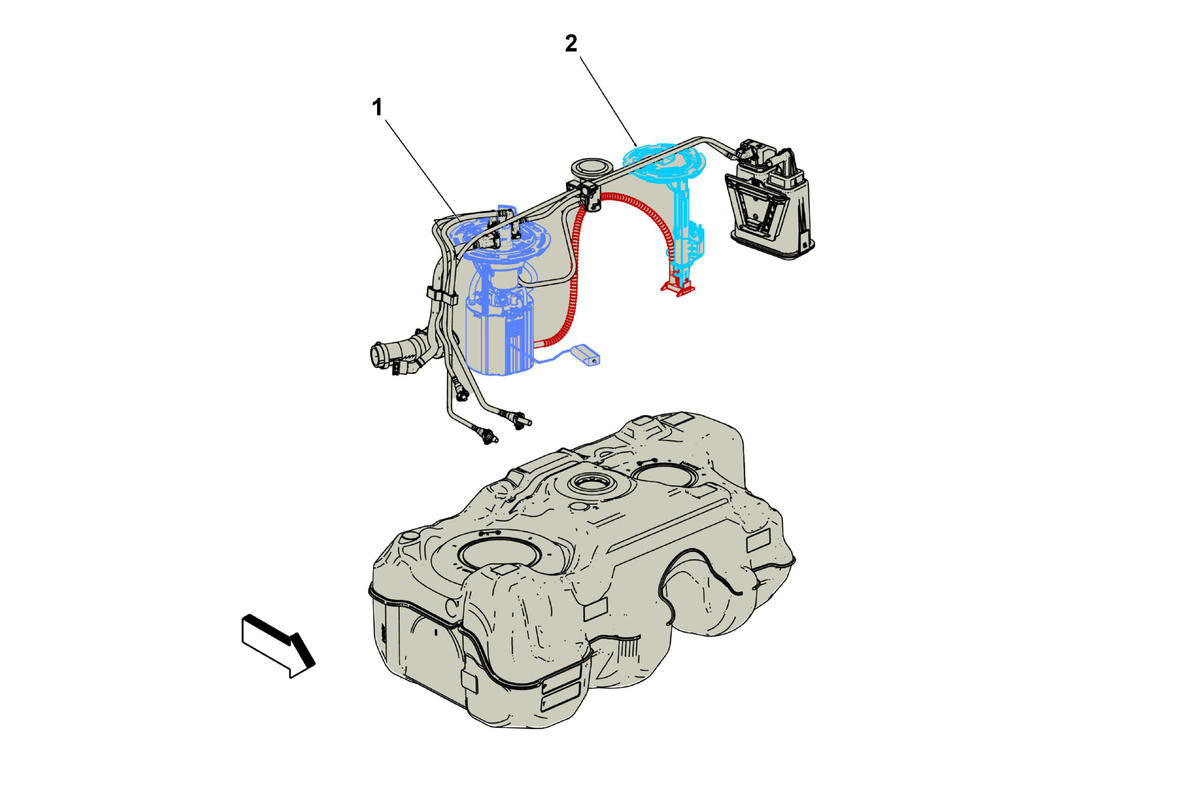

Fig 1: Fuel Tank Components
GM2840481Courtesy of GENERAL MOTORS COMPANY
Items
1:  A7 Fuel Pump and Level Sensor Assembly A7 FUEL PUMP AND LEVEL SENSOR ASSEMBLY
2:  B46B Fuel Level Sensor - Secondary B46B Fuel Level Sensor - Secondary (F46)
