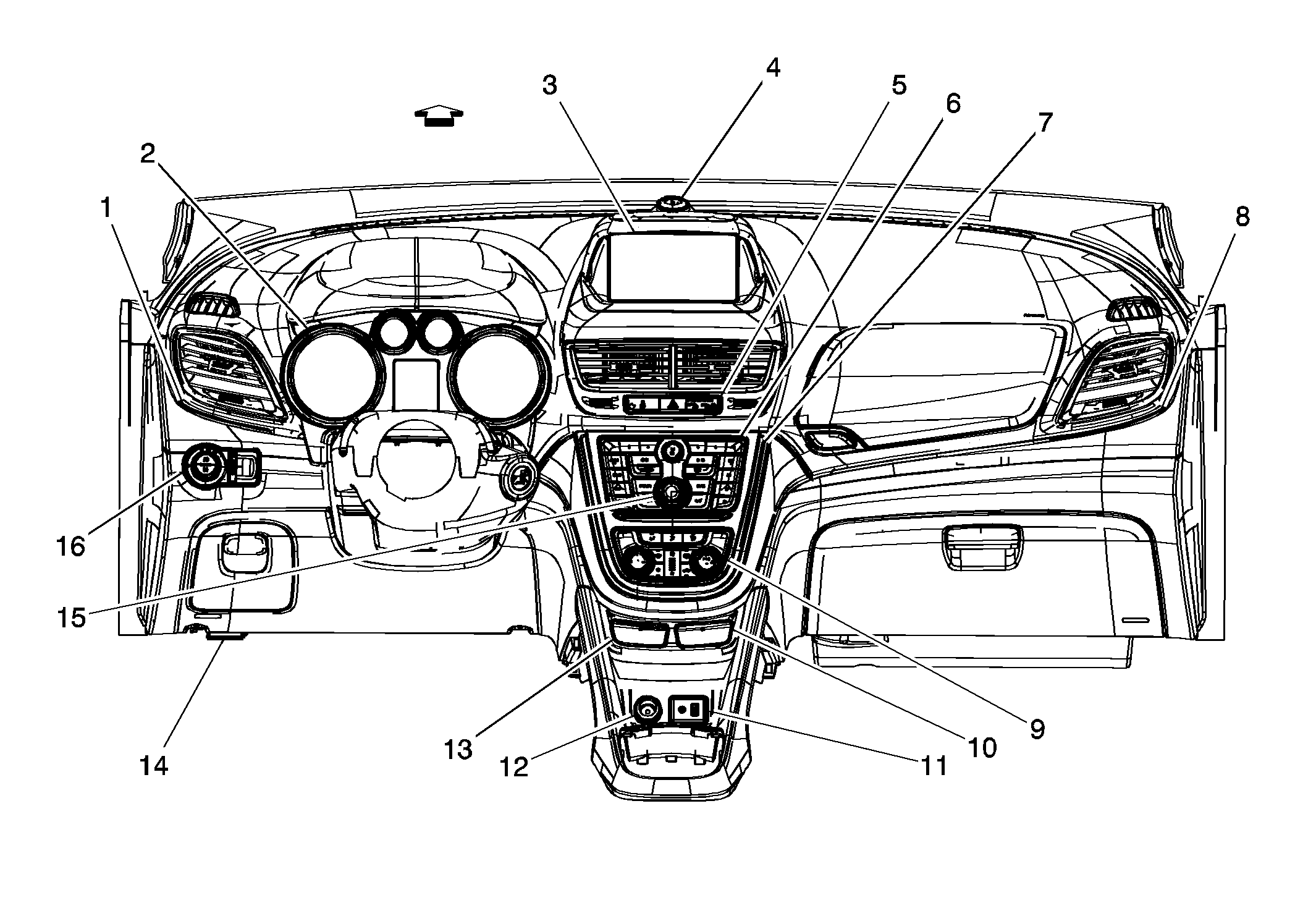

| 1:
E1G Accent Lamp - Left Instrument Panel |
| 2:
P16 Instrument Cluster P16 Instrument Cluster |
| 3:
P17 Info Display Module |
| 4:
B10B Ambient Light/Sunload Sensor B10B Ambient Light / Sunload Sensor |
| 5:
S48C Multifunction Switch 1 - Instrument Panel S48C Multifunction Switch 1 - Instrument Panel |
| 6:
A11 Radio A11 Radio X1A11 Radio X2 |
| 7:
E1W Accent Lamp - Instrument Panel |
| 8:
E1H Accent Lamp - Right Instrument Panel |
| 9:
A26 HVAC Controls |
| 10:
B272 Child Security Lock Switch |
| 11:
X83 Auxiliary Audio Input X83 Auxlliary Audio Input (UF7/USR) |
| 12:
E32 Cigarette Lighter Receptacle E32 Cigarette Lighter Receptacle |
| 13:
S112 Fuel Economy Mode Switch (KL9) |
| 14:
X84 Data Link Connector X84 Data Link Connector |
| 15:
A22 Radio Controls |
| 16:
S30 Headlamp Switch S30 Headlamp Switch |
