Right Rear of Engine Components (LFF)

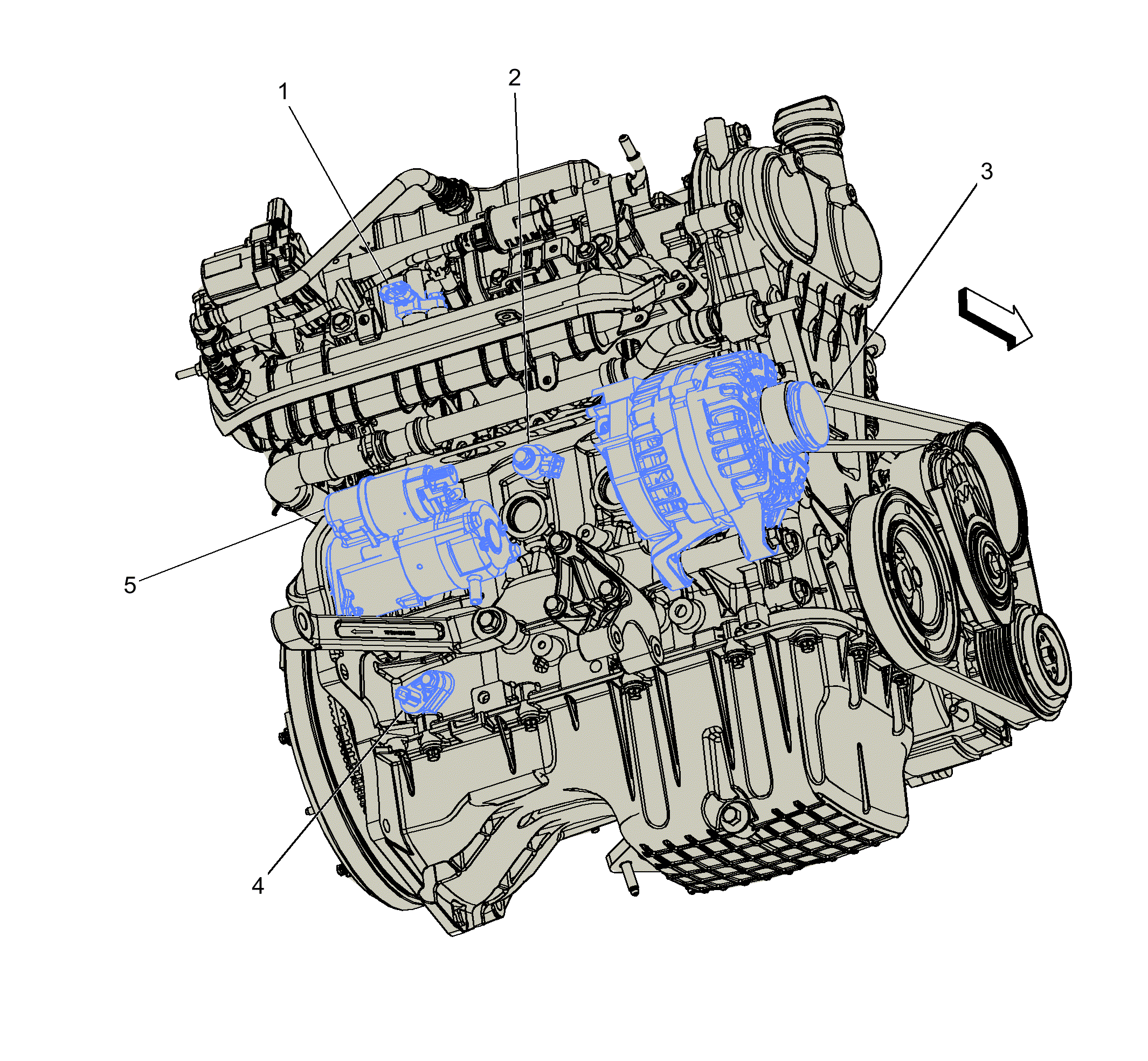

Fig 1: Right Rear of Engine Components (LFF)

Courtesy of GENERAL MOTORS COMPANY

Items
1:  B74 Manifold Absolute Pressure Sensor B74 Manifold Absolute Pressure Sensor
2:  B68 Knock Sensor B68 Knock Sensor
3:  G13 Generator G13 Generator X1
4:  B26 Crankshaft Position Sensor B26 Crankshaft Position Sensor
5:  M64 Starter Motor M64 Starter Motor X1
