LaCrosse Base, 2.4L Eng VIN R
›
Repair and Diagnosis
›
Body & Frame
›
Door Locks
›
Keyless Entry System And Remote Functions
›
Schematic Wiring Diagrams
›
Remote Function Wiring Schematics
›
Module Power, Ground, Data Communication, and Controls
Module Power, Ground, Data Communication, and Controls

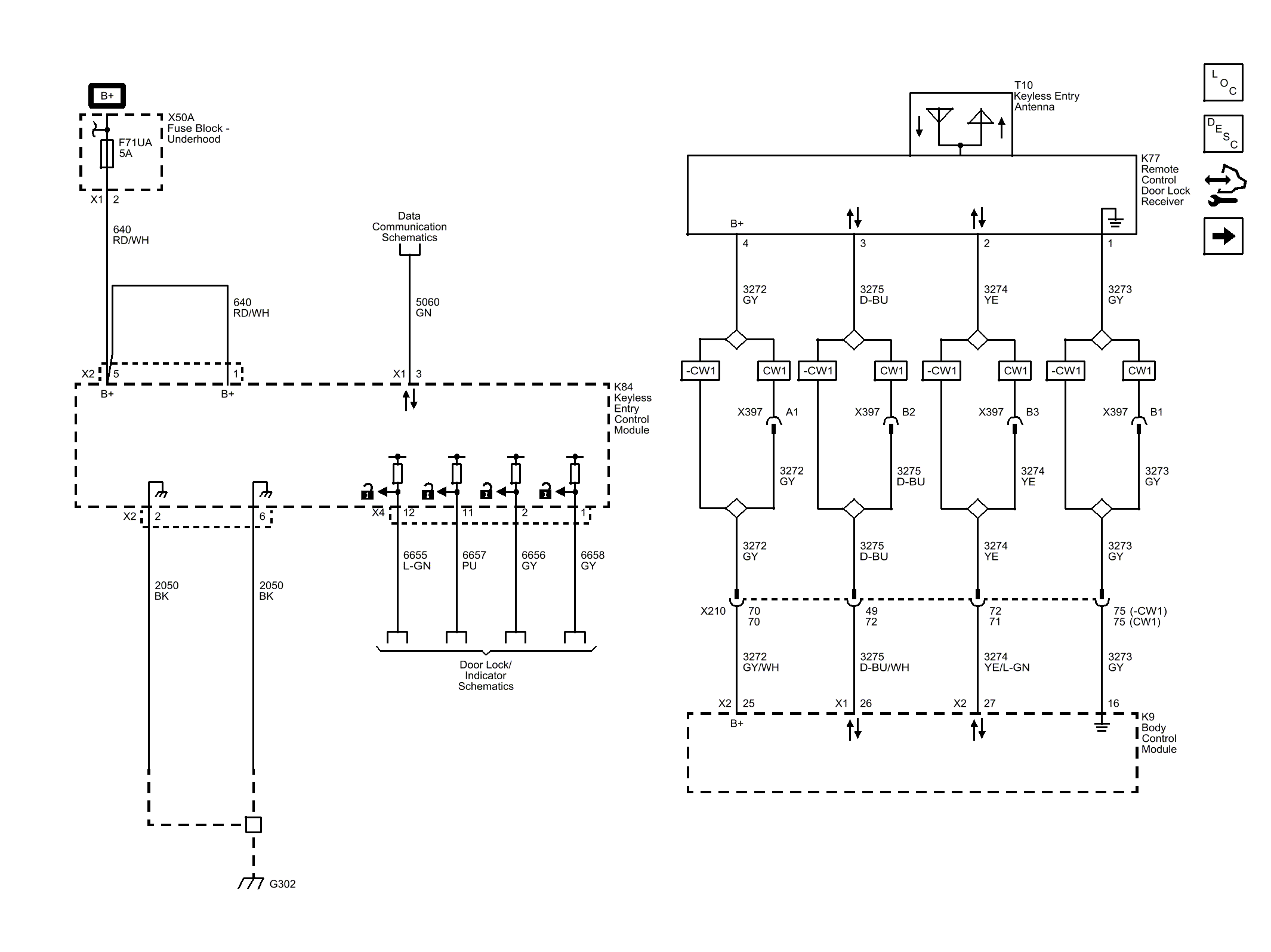

Fig 1: Module Power, Ground, Data Communication, and Controls Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
