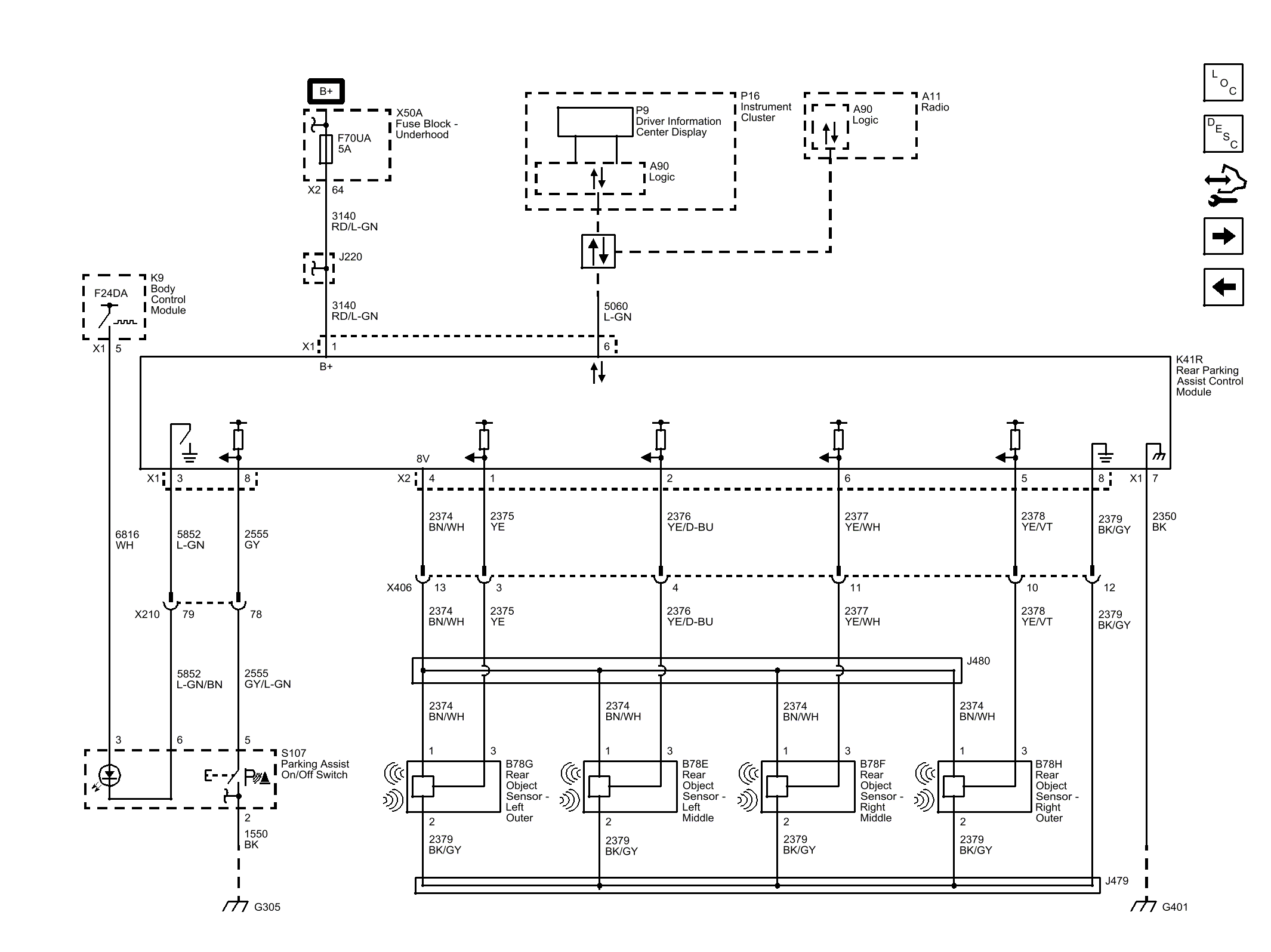

Home › Buick › 2014 › LaCrosse Premium, AWD › Repair and Diagnosis › Accessories & Equipment › Drivers Assistance Systems - ADAS › Object Detection System And Pedestrian Protection System › Schematic Wiring Diagrams › Object Detection Wiring Schematics › Rear Object Detection (UD7)
