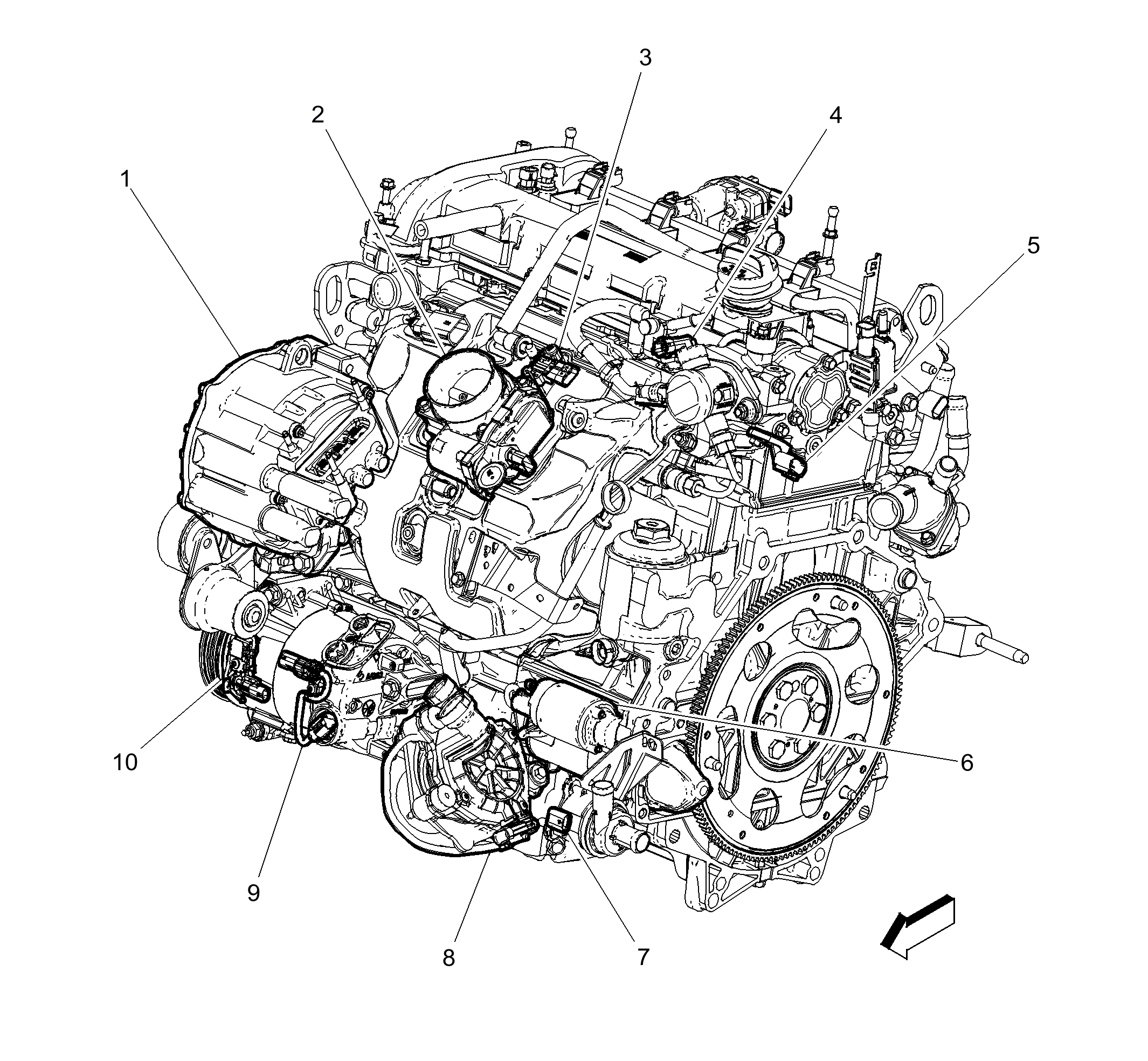

Engine Components - Left Front (LUK)
Engine Components - Left Front (LUK)
| Items |
|---|
| 1: A15 Starter/Generator (HP6) A15 Starter/Generator X1 (HP6) |
| 2: Q38 Throttle Body Q38 Throttle BodyQ38 Throttle Body |
| 3: B74 Manifold Absolute Pressure Sensor B74 Manifold Absolute Pressure Sensor |
| 4: G18 High Pressure Fuel Pump G18 High Pressure Fuel Pump |
| 5: B23F Camshaft Position Sensor - Intake (LUK) |
| 6: M64 Starter Motor M64 Starter Motor X1M64 Starter Motor X2 (LFX)M64 Starter Motor X2 (LUK) |
| 7: G22 Starter/Generator Control Module Coolant Pump (HP6) |
| 8: G21 Secondary Air Injection Pump (LUK) G21 Secondary Air Injection Pump (LUK) |
| 9: Q46 A/C Compressor Solenoid Valve Q46 A/C Compressor Solenoid Valve |
| 10: Q2 A/C Compressor Clutch Q2 A/C Compressor Clutch |
