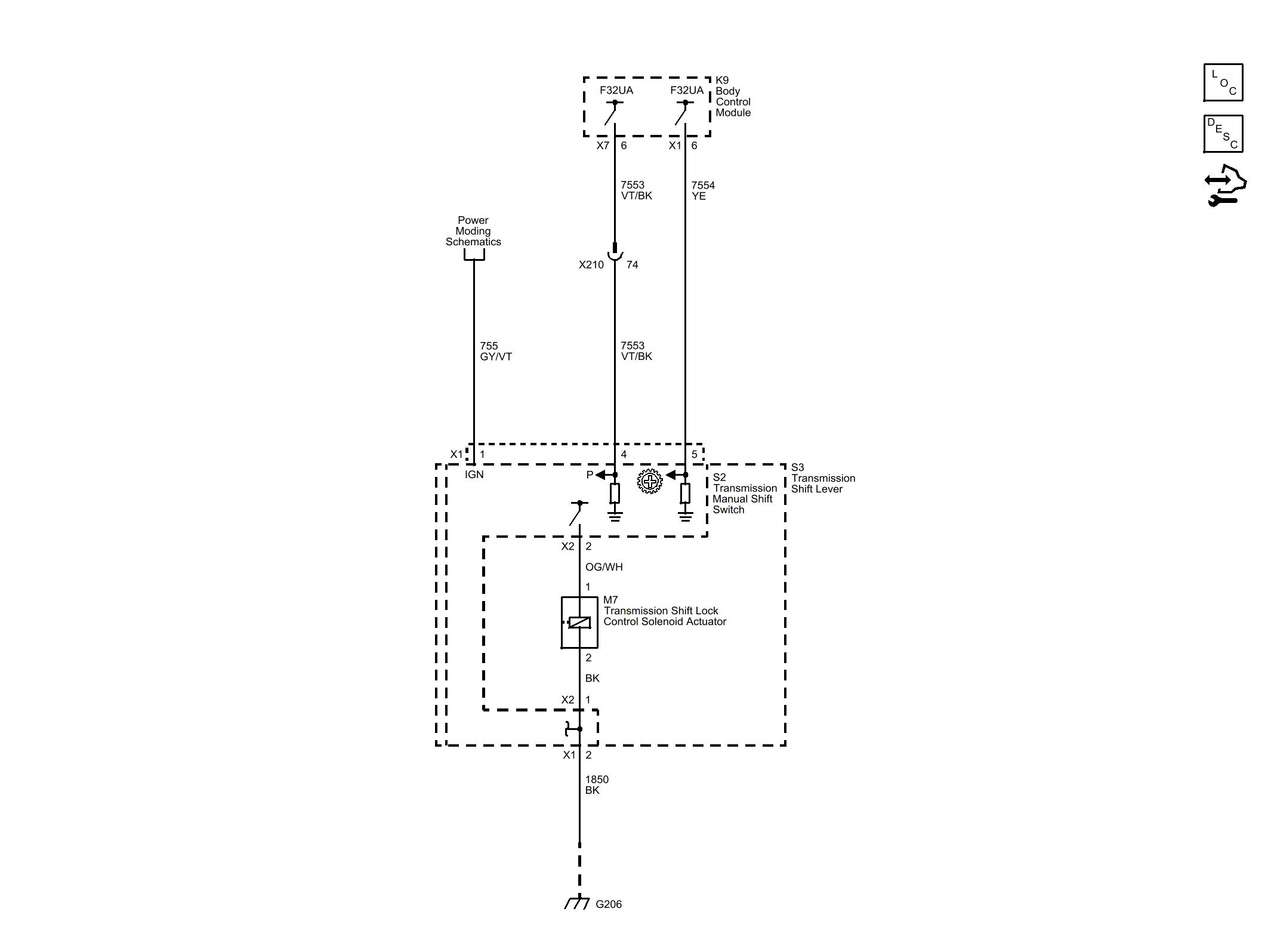

Home › Buick › 2014 › Regal Base, 2.0L Eng VIN X, AWD › Repair and Diagnosis › Transmission › Automatic Trans › Shift Lock Control System › Schematic Wiring Diagrams › Shift Lock Control Wiring Schematics › Shift Lock Control System
