Passive Entry (ATH with BTM) Wiring Schematics

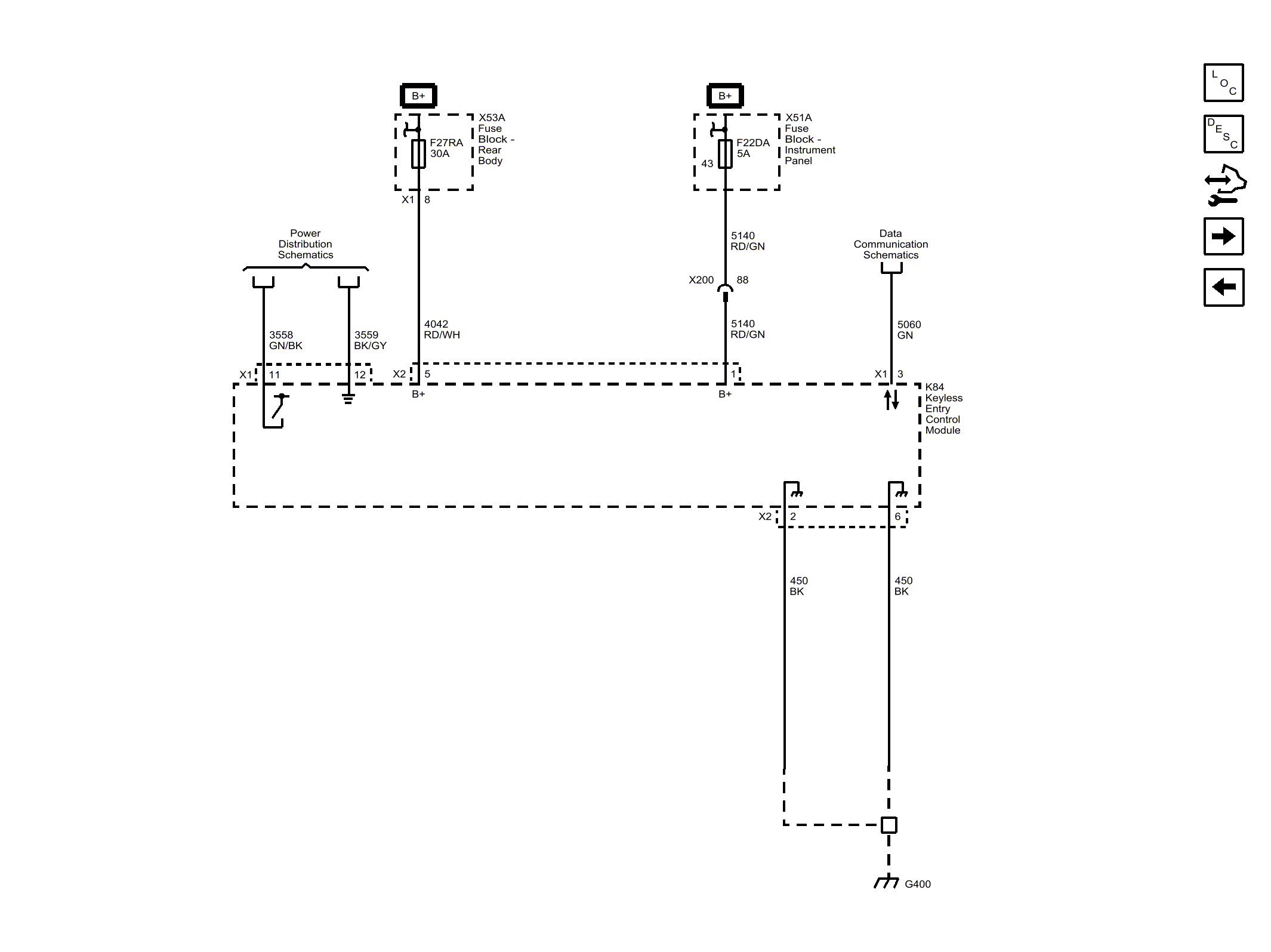

Fig 1: Passive Entry (ATH with BTM) Wiring Schematic
GM3337016Courtesy of GENERAL MOTORS COMPANY
