Front Side Door Window Regulator Motor Replacement

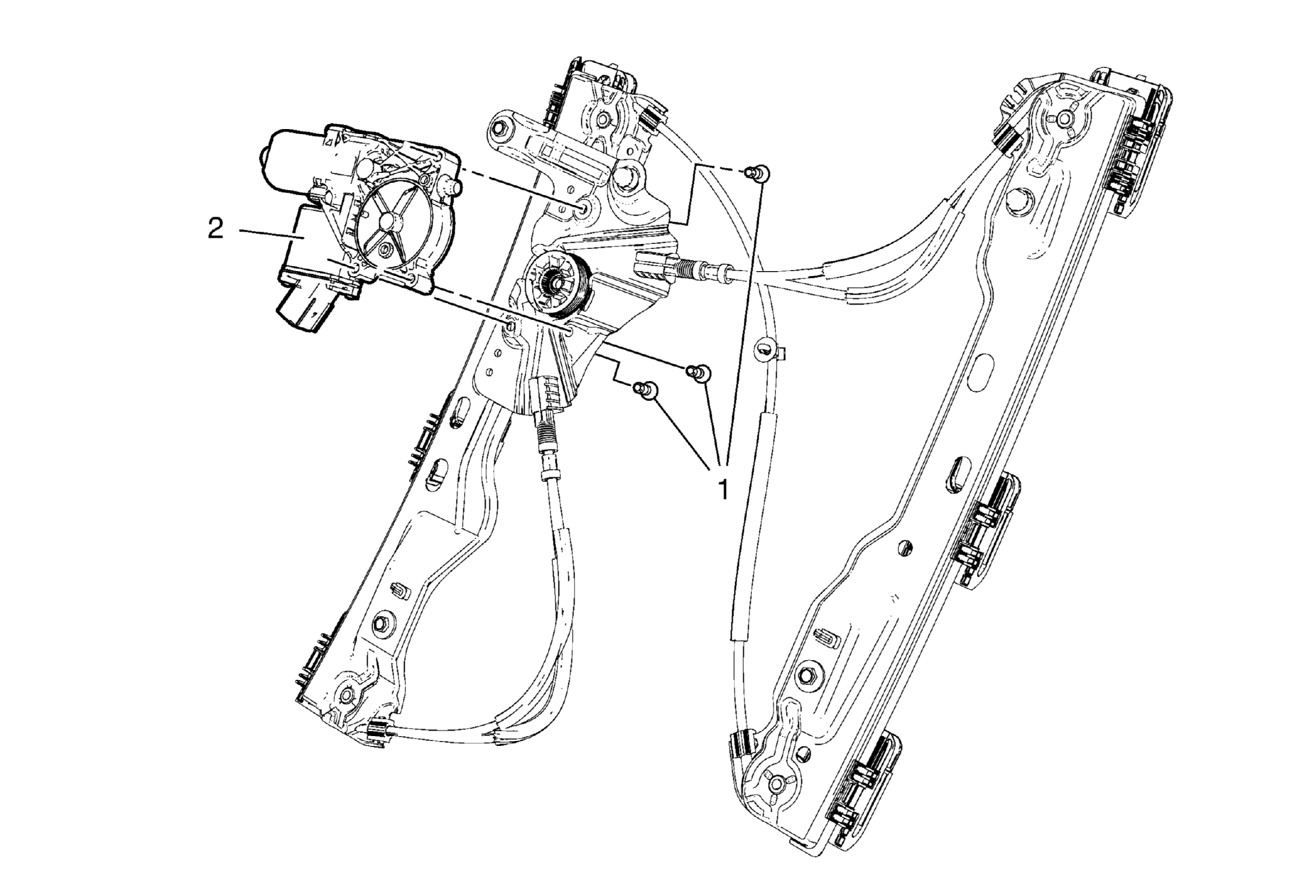

Fig 1: Front Side Door Window Regulator Motor Assembly & Screws

Courtesy of GENERAL MOTORS COMPANY

Front Side Door Window Regulator Motor Replacement

Callout	Component Name
Preliminary Procedure  Remove the front side door window regulator. Refer to Front Side Door Window Regulator Replacement .
1	Front Side Door Window Regulator Motor Screw (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten  9 N.m (80 lb in)
2	Front Side Door Window Regulator Motor Assembly
