Rear Side Door Window Regulator Motor Replacement

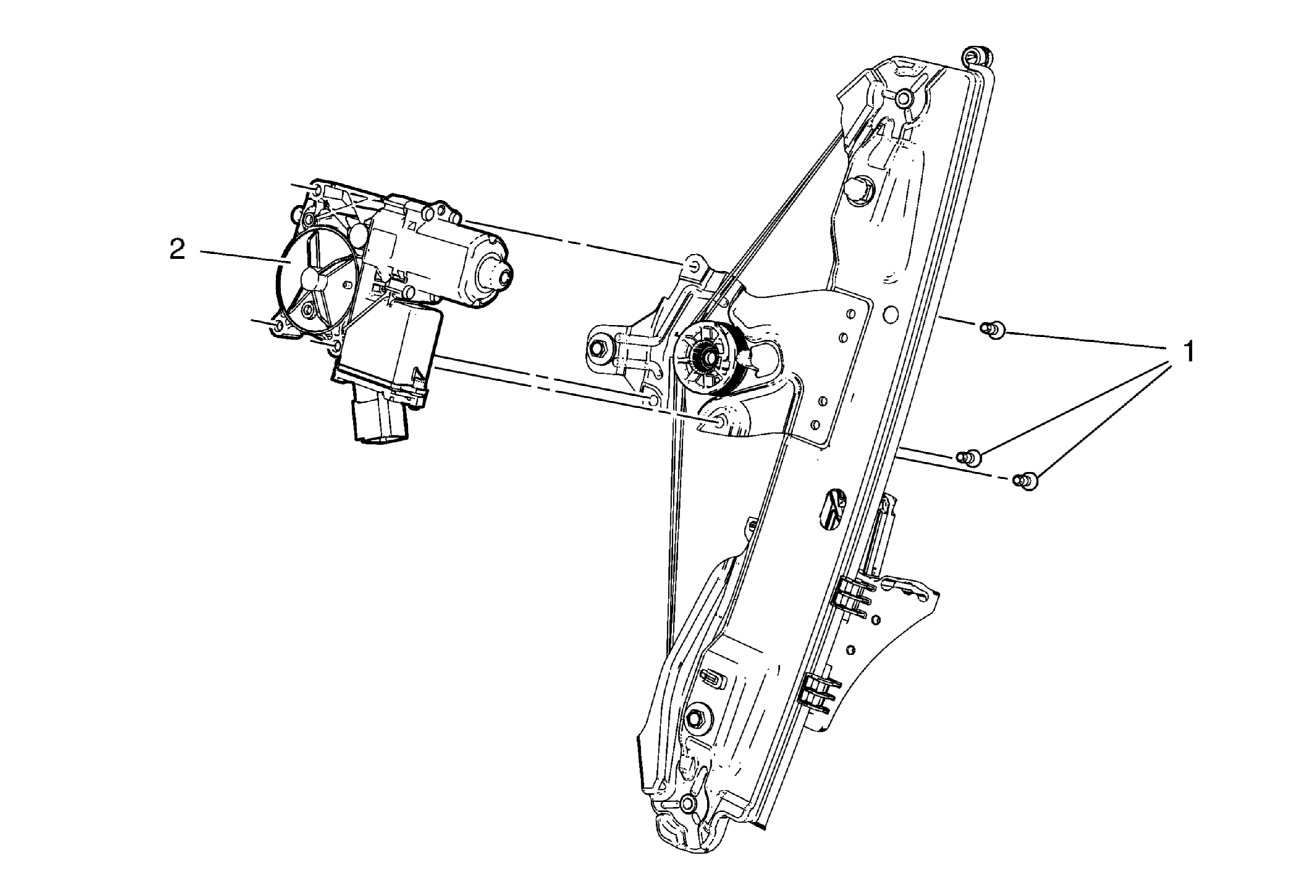

Fig 1: Rear Side Door Window Regulator Motor & Screws

Courtesy of GENERAL MOTORS COMPANY

Rear Side Door Window Regulator Motor Replacement

Callout	Component Name
Preliminary Procedure  Remove the rear side Door Window Regulator. Refer to Rear Side Door Window Regulator Replacement .
1	Rear Side Door Window Regulator Motor Screw (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten  9 N.m (80 lb in)
2	Rear Side Door Window Regulator Motor Assembly
