Rear Side Door Window Replacement

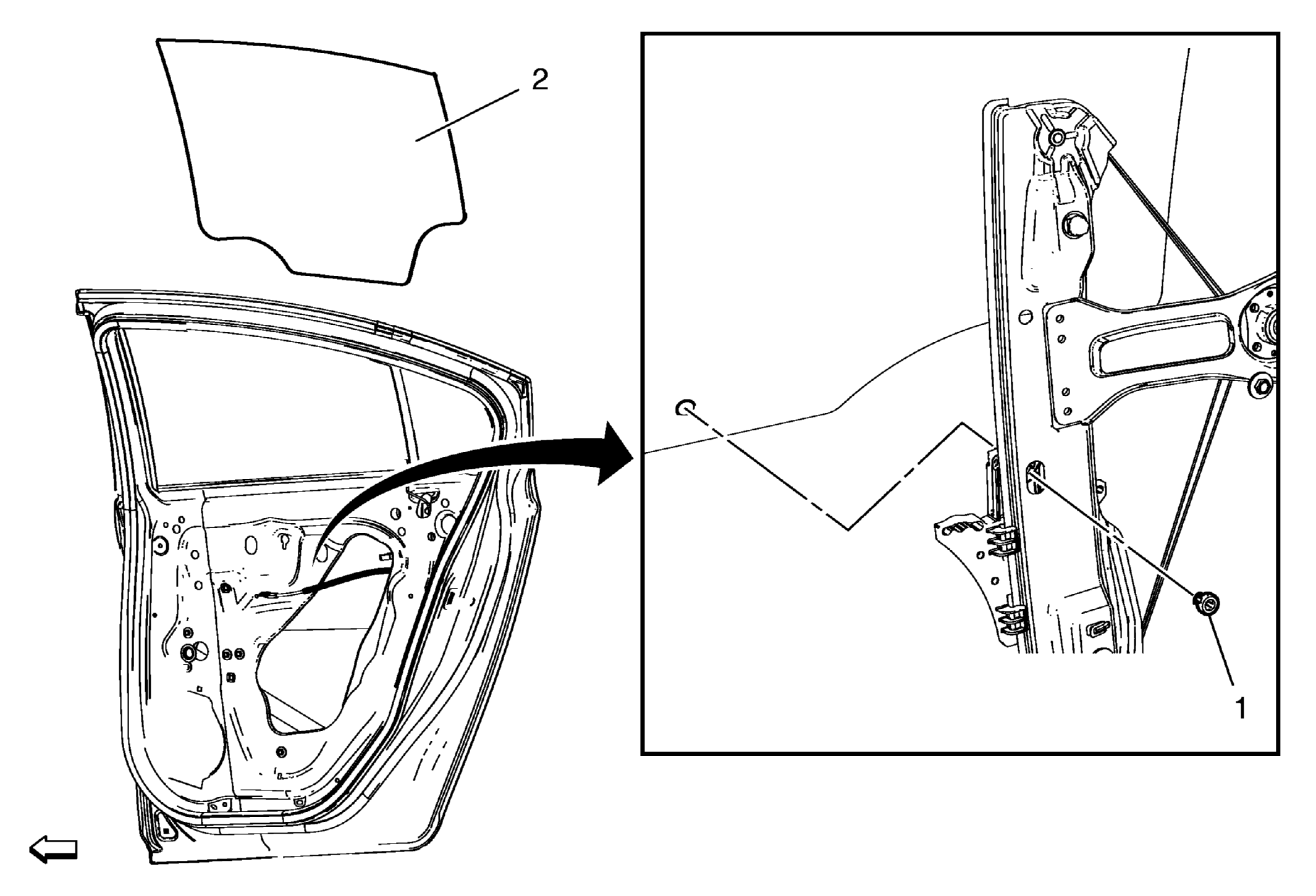

Fig 1: Rear Side Door Window & Regulator Sash Retainer
GM2189717Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Window Replacement

Callout Component Name

Preliminary Procedures

  1. Position the window approximately half way down in the door.
  2. Remove the water deflector. Refer to Rear Side Door Water Deflector Replacement .
  3. Remove the outer sealing Strip. Refer to Rear Side Door Window Outer Sealing Strip Replacement .
1 Rear Side Door Window Regulator Sash Retainer
Procedure
Replace the rear side door window regulator sash retainer.
2 Rear Side Door Window

Procedure

  1. Loosen the window regulator sash retainer, pull upward to release the window from the sash.
  2. Rotate the rear door window as necessary to remove it from the door.
