Rear Side Door Window Switch Replacement

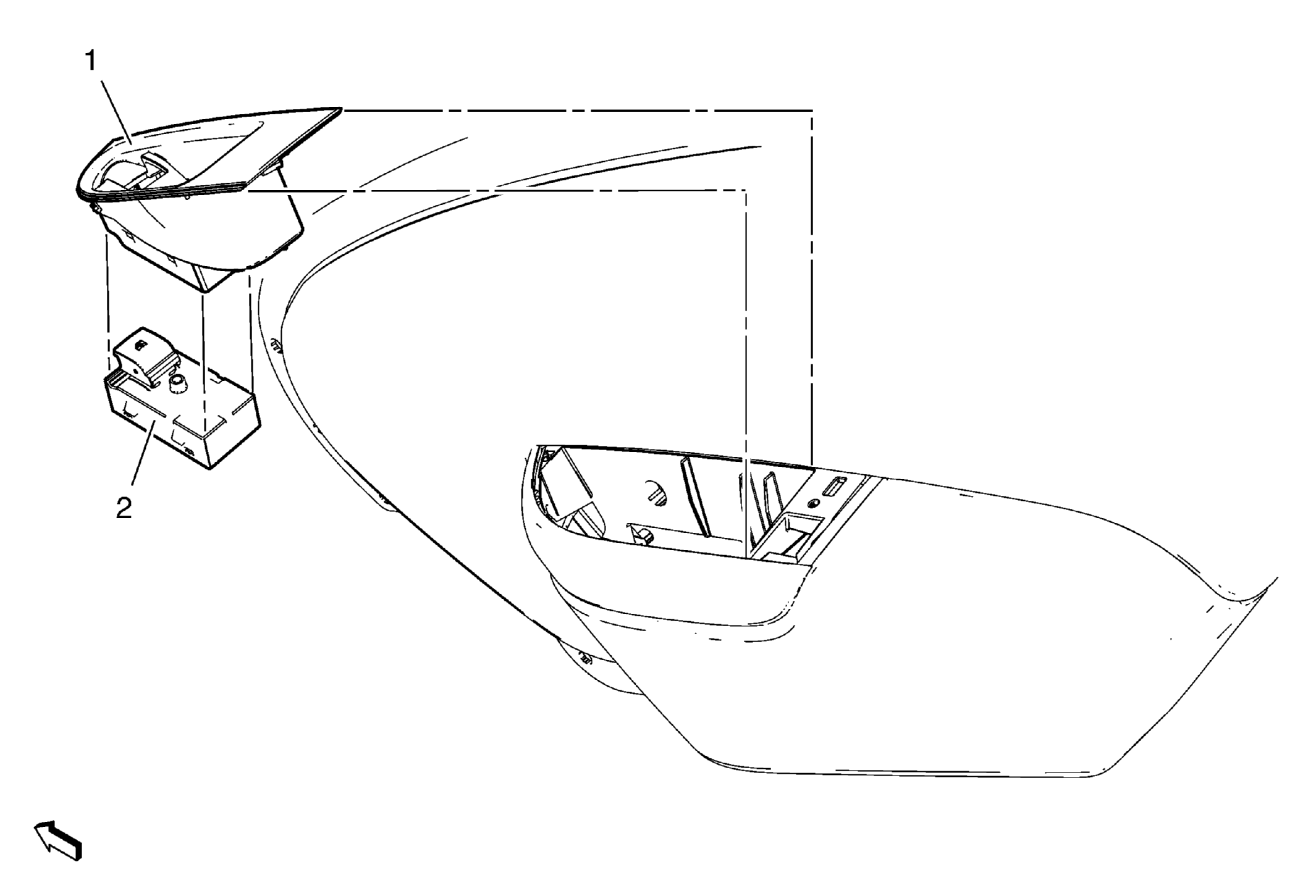

Fig 1: Rear Side Door Window Switch & Cover

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Rear Side Door Window Switch Opening Cover Procedure Unclip rear side door window switch opening cover (Qty: 4).
2	Rear Side Door Window Switch Assembly Procedure Unclip rear side door window switch (Qty: 4). Disconnect electrical connector.

Callout

Component Name

Rear Side Door Window Switch Opening Cover
Procedure
Unclip rear side door window switch opening cover (Qty: 4).

Rear Side Door Window Switch Assembly

Procedure
