Rear Side Door Window Weatherstrip Replacement

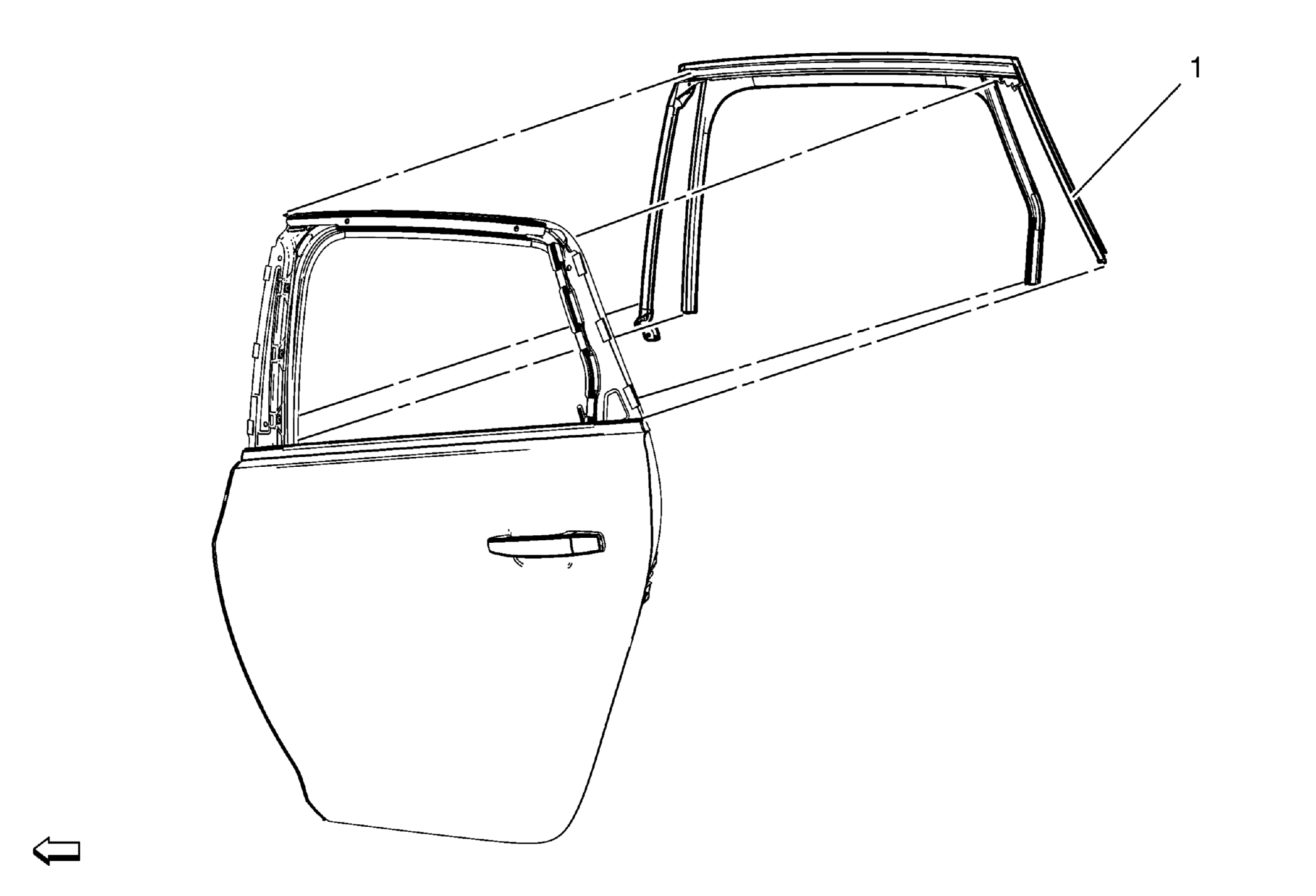

Fig 1: Rear Side Door Window Weatherstrip

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear side door window frame front cover. Refer to Rear Side Door Window Frame Front Cover Replacement . Remove the rear side door window frame rear cover. Refer to Rear Side Door Window Frame Rear Cover Replacement . Remove the rear side door window frame garnish molding. Refer to Rear Side Door Window Frame Garnish Molding Replacement .
1	Rear Side Door Window Weatherstrip Procedure Pull the rear side door window weatherstrip away from the outer window flange to remove.

Callout

Component Name

Preliminary Procedures

Remove the rear side door window frame front cover. Refer to Rear Side Door Window Frame Front Cover Replacement .
Remove the rear side door window frame rear cover. Refer to Rear Side Door Window Frame Rear Cover Replacement .
Remove the rear side door window frame garnish molding. Refer to Rear Side Door Window Frame Garnish Molding Replacement .

Rear Side Door Window Weatherstrip
Procedure
Pull the rear side door window weatherstrip away from the outer window flange to remove.
