Radiator Lower Bracket Replacement

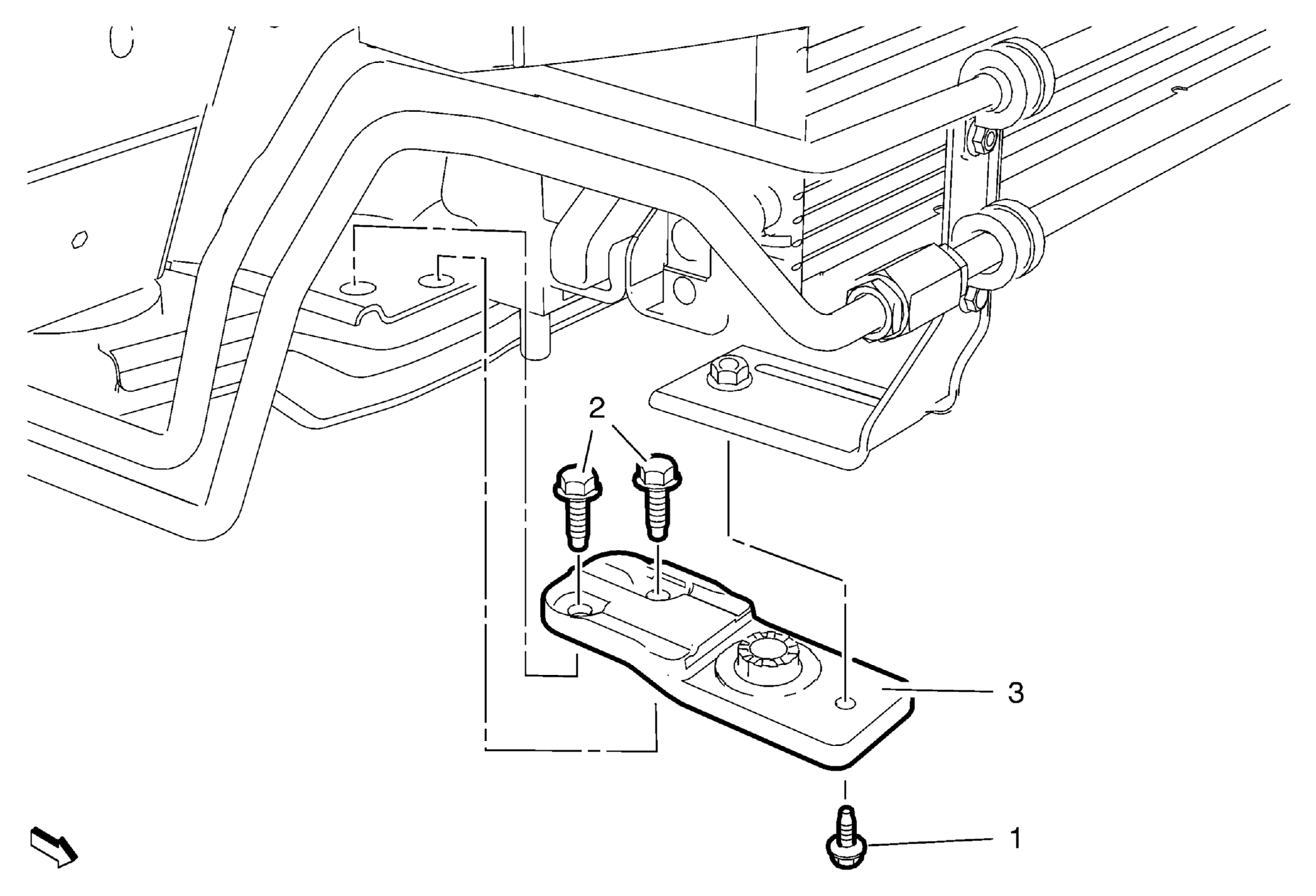

Fig 1: Radiator Lower Bracket & Bolts

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement . Remove the charge air cooler inlet and outlet hose from the charge air cooler.
1	Power Steering Fluid Cooling Pipe Bracket Bolt CAUTION: Refer to Fastener Caution . Procedure Remove the bolt if the power steering fluid cooling pipe is equipped. Tighten 9 N.m (80 lb in)
2	Radiator Lower Bracket Bolt (Qty: 2) Procedure Secure the radiator. Tighten 22 N.m (16 lb ft)
3	Radiator Lower Bracket
