Radiator Upper Bracket Replacement

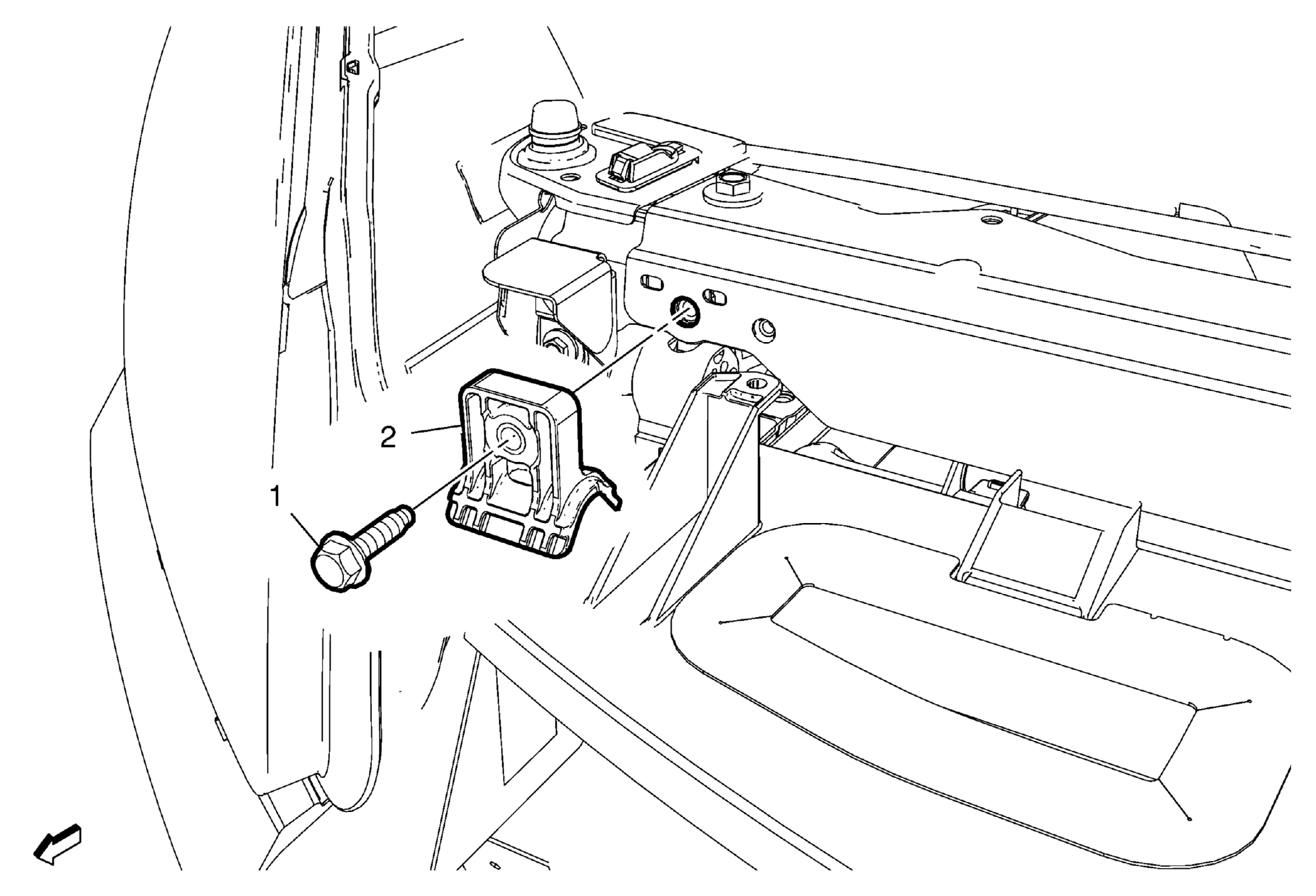

Fig 1: Radiator Upper Bracket & Bolts

Courtesy of GENERAL MOTORS COMPANY

Radiator Upper Bracket Replacement

Callout	Component Name
Preliminary Procedures  Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .
1	Radiator Support Bracket Bolt CAUTION: Refer to Fastener Caution . Tighten  22 N.m (16 lb ft)
2	Radiator Support Bracket Procedure  Pull the radiator forward until the bracket is reachable.
