Power, Ground and Subsystem References (1 of 4) Wiring Schematics

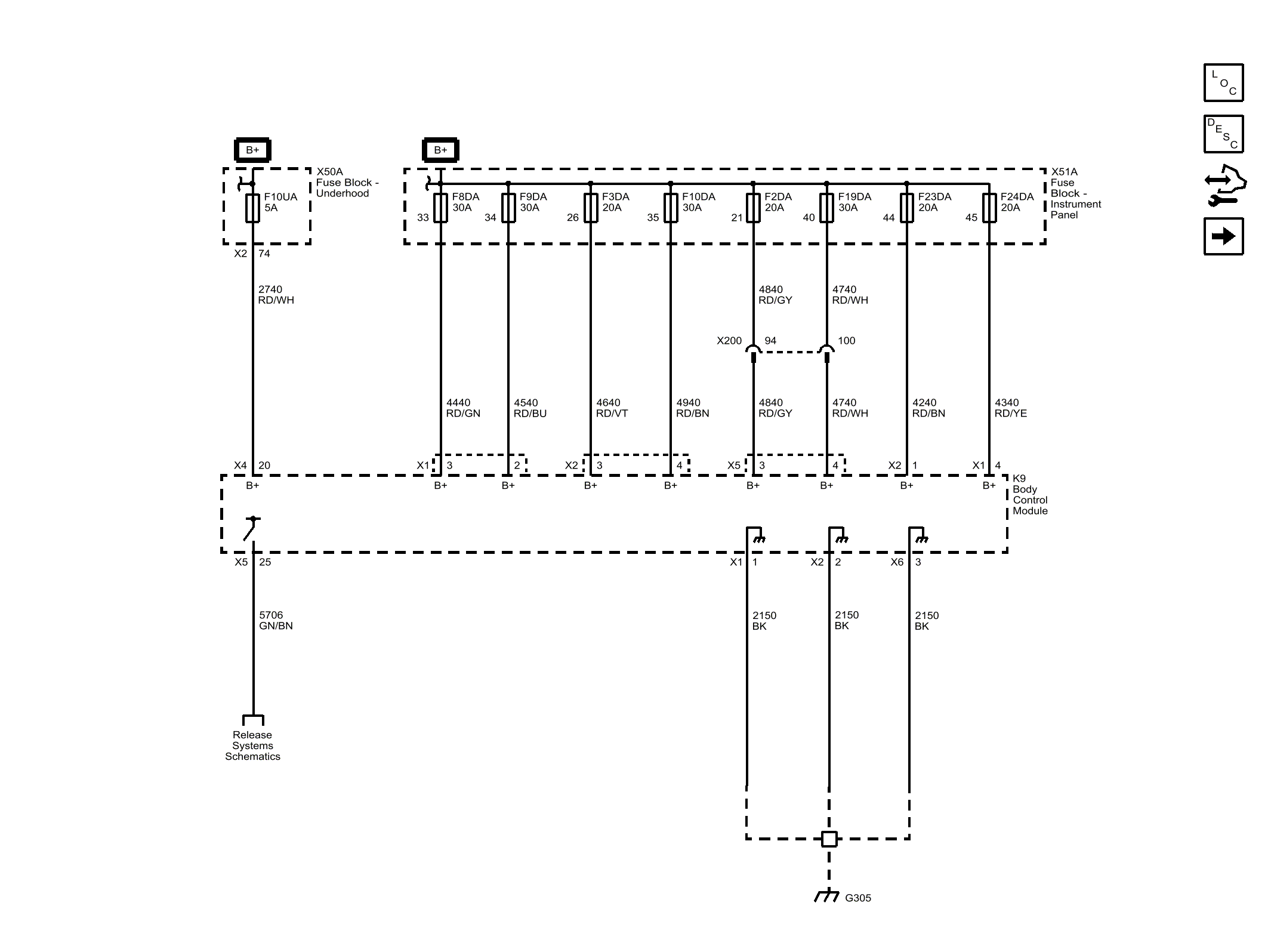

Fig 1: Power, Ground and Subsystem References (1 of 4) Wiring Schematic
GM3336871Courtesy of GENERAL MOTORS COMPANY
