Subsystem References (2 of 4) Wiring Schematics
Subsystem References (2 of 4) Wiring Schematics

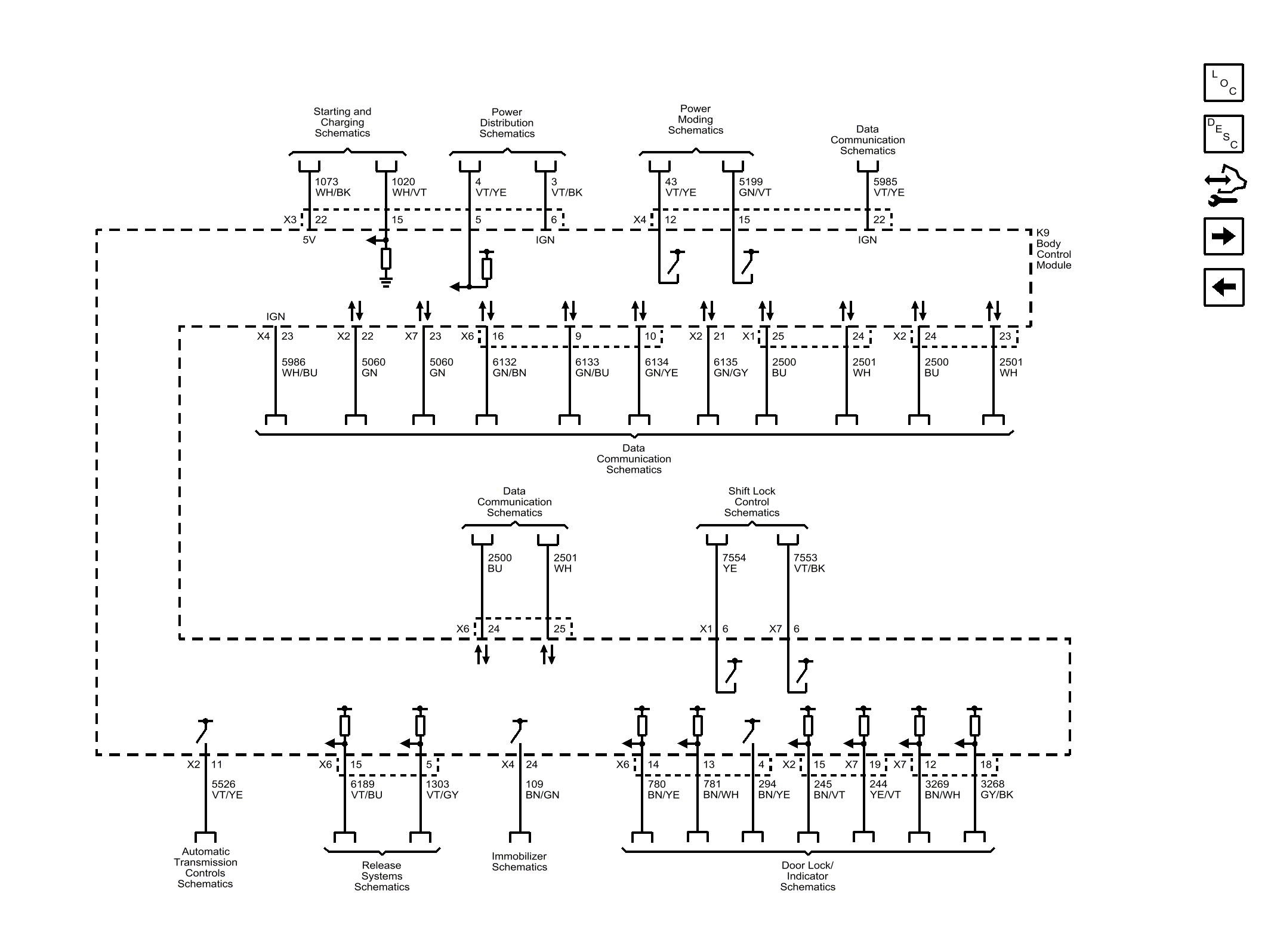

Fig 1: Subsystem References (2 of 4) Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
