High Speed Bus 1 Wiring Schematics

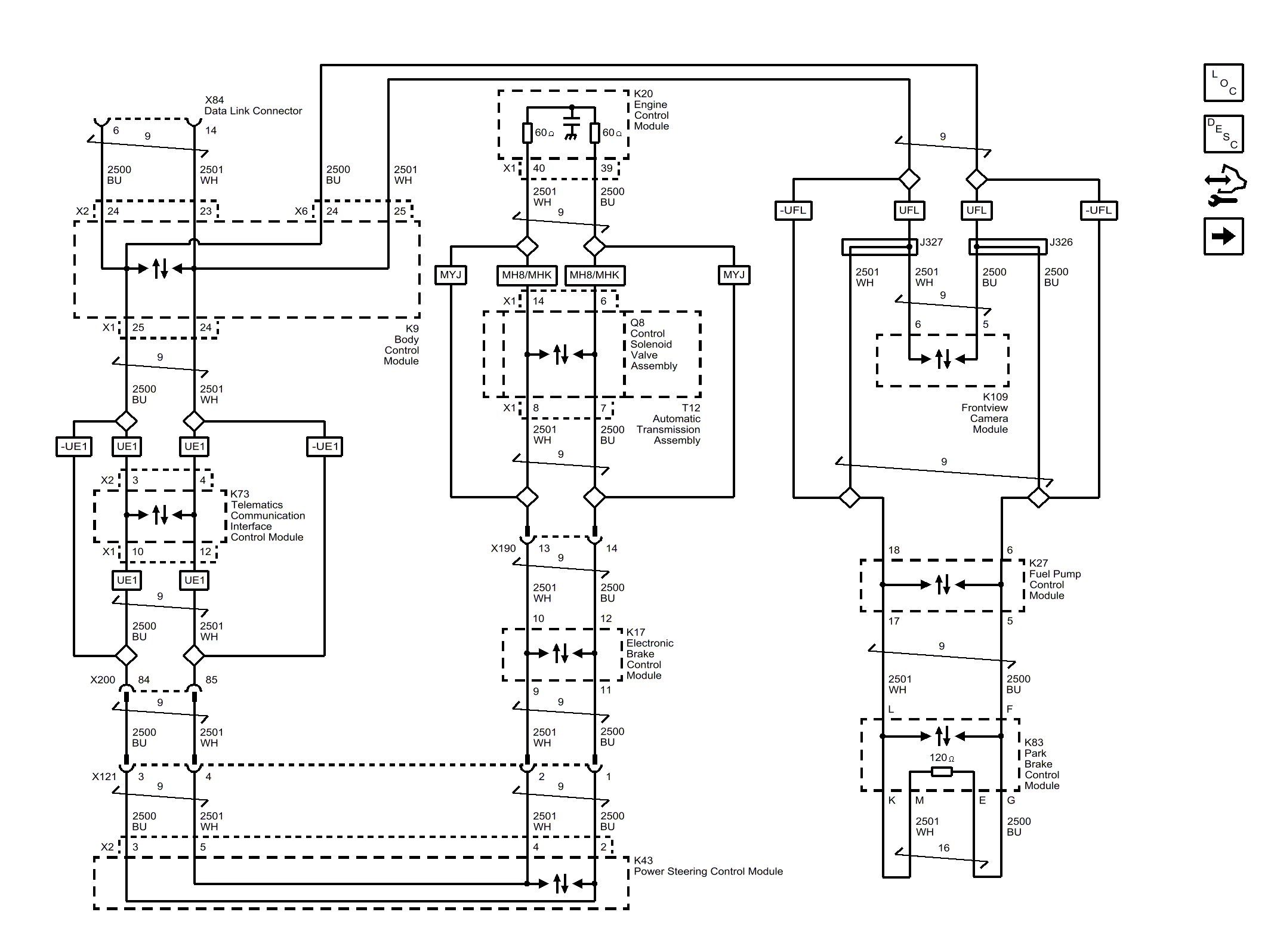

Fig 1: High Speed Bus 1 Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
