Data Communication Wiring Schematics
›
Low Speed Bus Wiring Schematics
Low Speed Bus Wiring Schematics

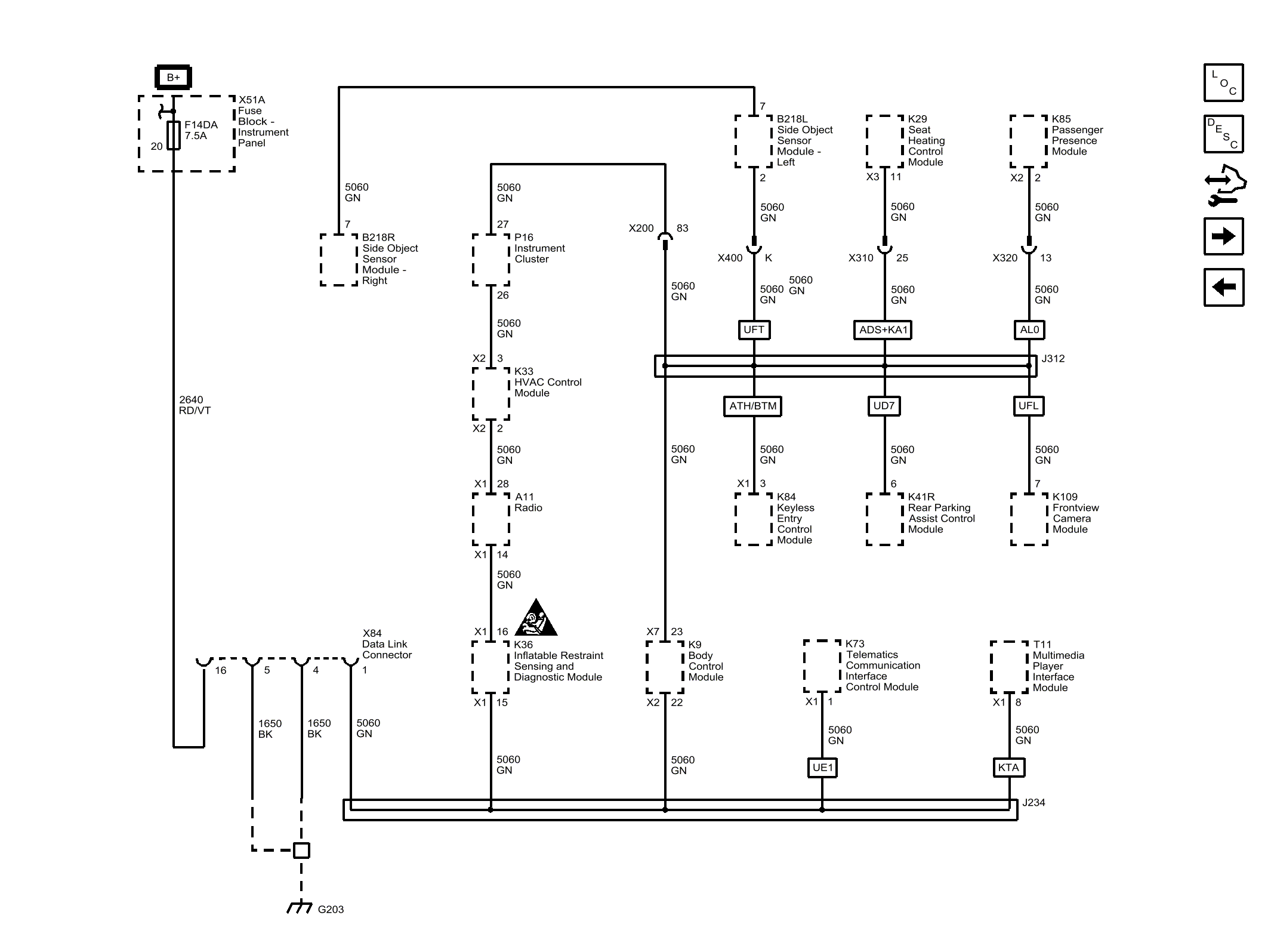

Fig 1: Low Speed Bus Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
