Serial Data Communication Enable Wiring Schematics

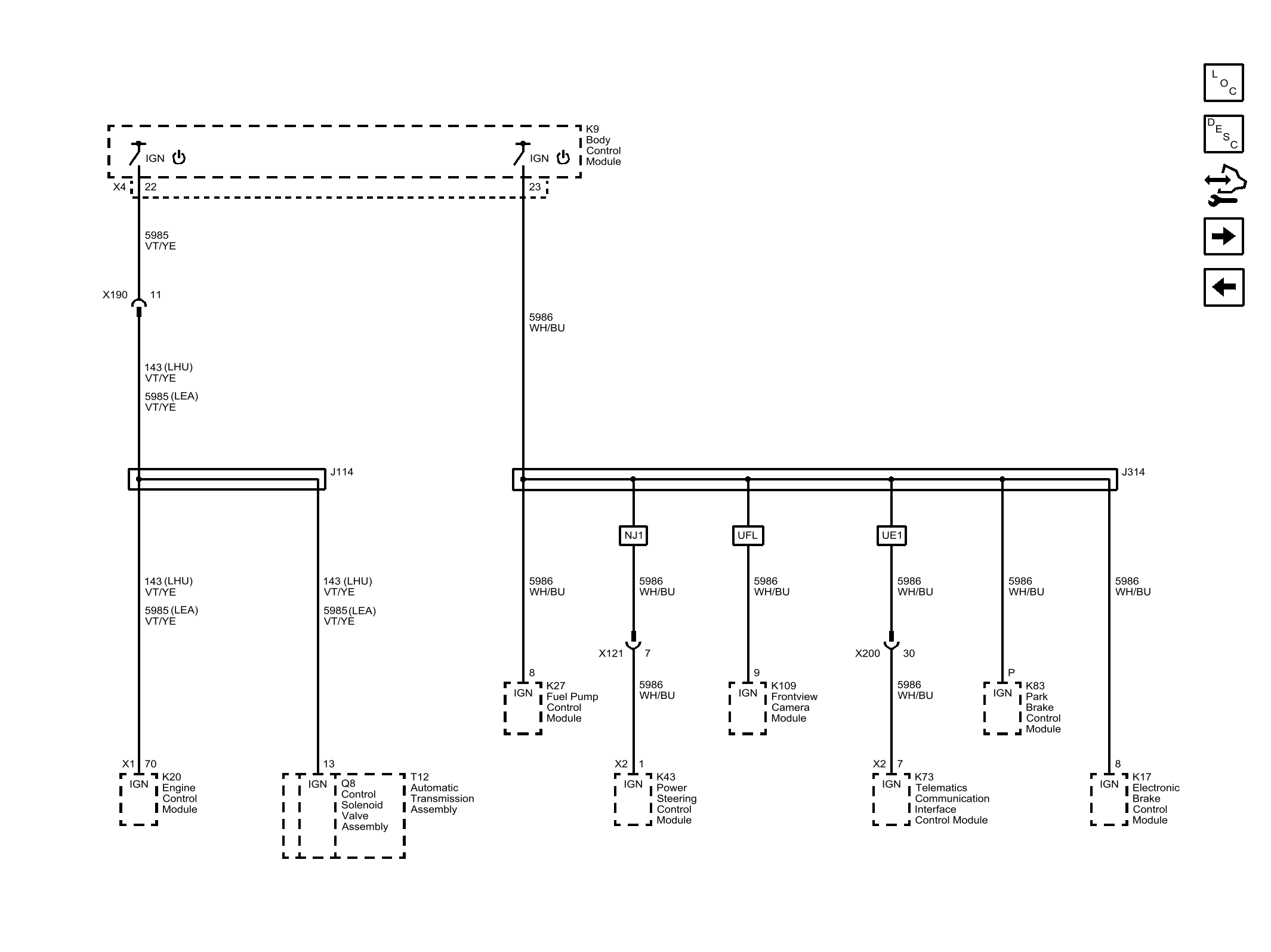

Fig 1: Serial Data Communication Enable Wiring Schematic
GM3336858Courtesy of GENERAL MOTORS COMPANY
