Installation Procedure
WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

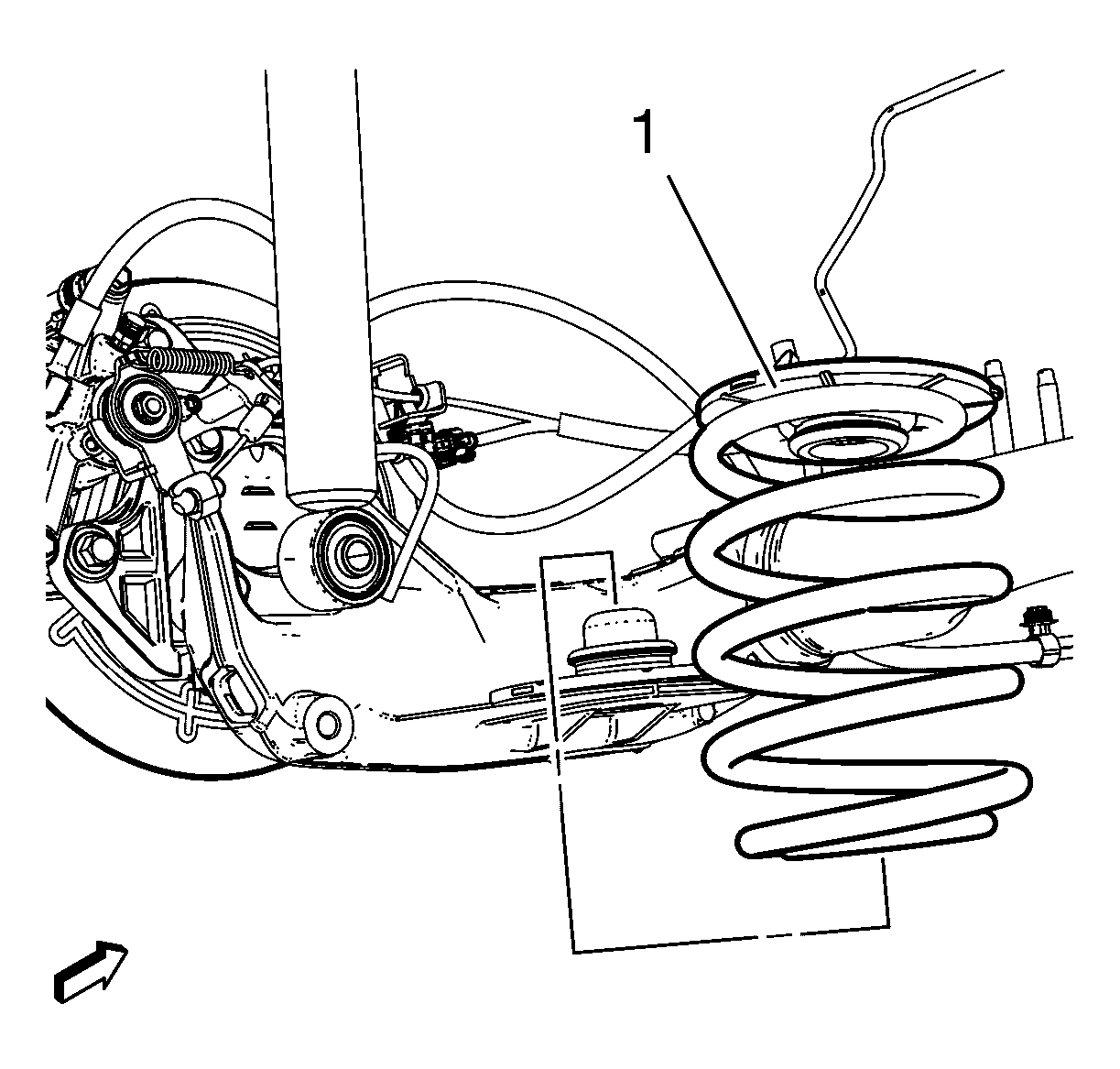

- Install the upper spring seat/jounce bumper (1) on the spring.
- Install the spring (1) making sure the lower coil is seated into the lower spring seat.
- Using the jack stands, raise the rear axle in order to compress the rear springs.
- Install the lower shock absorber bolts. Refer to Shock Absorber Replacement .
- Lower the vehicle.
