Rear Seat Belt Buckle Replacement

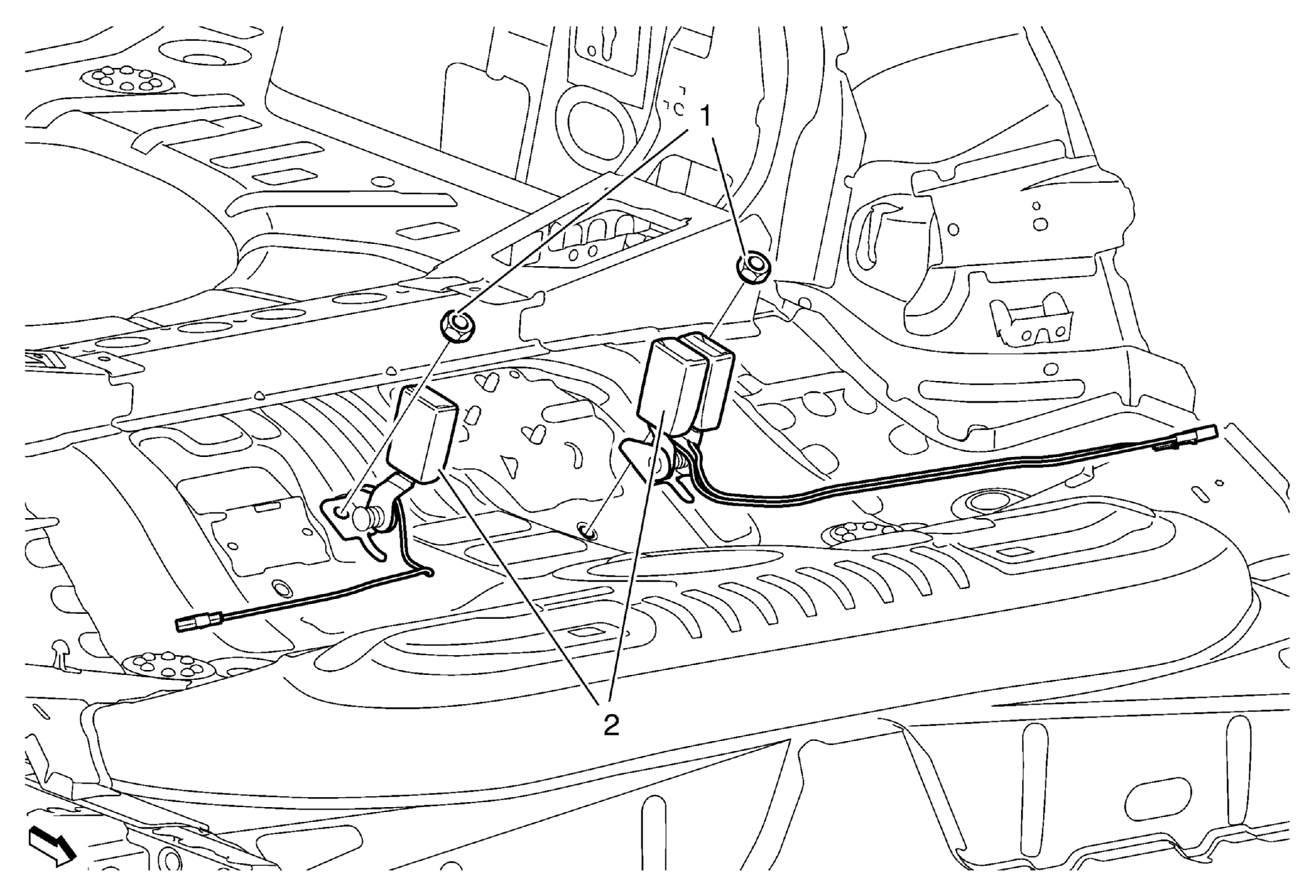

Fig 1: Rear Seat Belt Buckle

Courtesy of GENERAL MOTORS COMPANY

Rear Seat Belt Buckle Replacement

Callout	Component Name
Preliminary Procedure  Remove the rear seat cushion. Refer to Rear Seat Cushion Removal and Installation .
1	Rear Seat Belt Buckle Bracket Fastener (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten  45 (33 lb ft)
2	Rear Seat Belt Buckle Procedure  Disconnect the electrical connector, if equipped.
