Steering Column Lower Trim Cover Replacement
Steering Column Lower Trim Cover Replacement

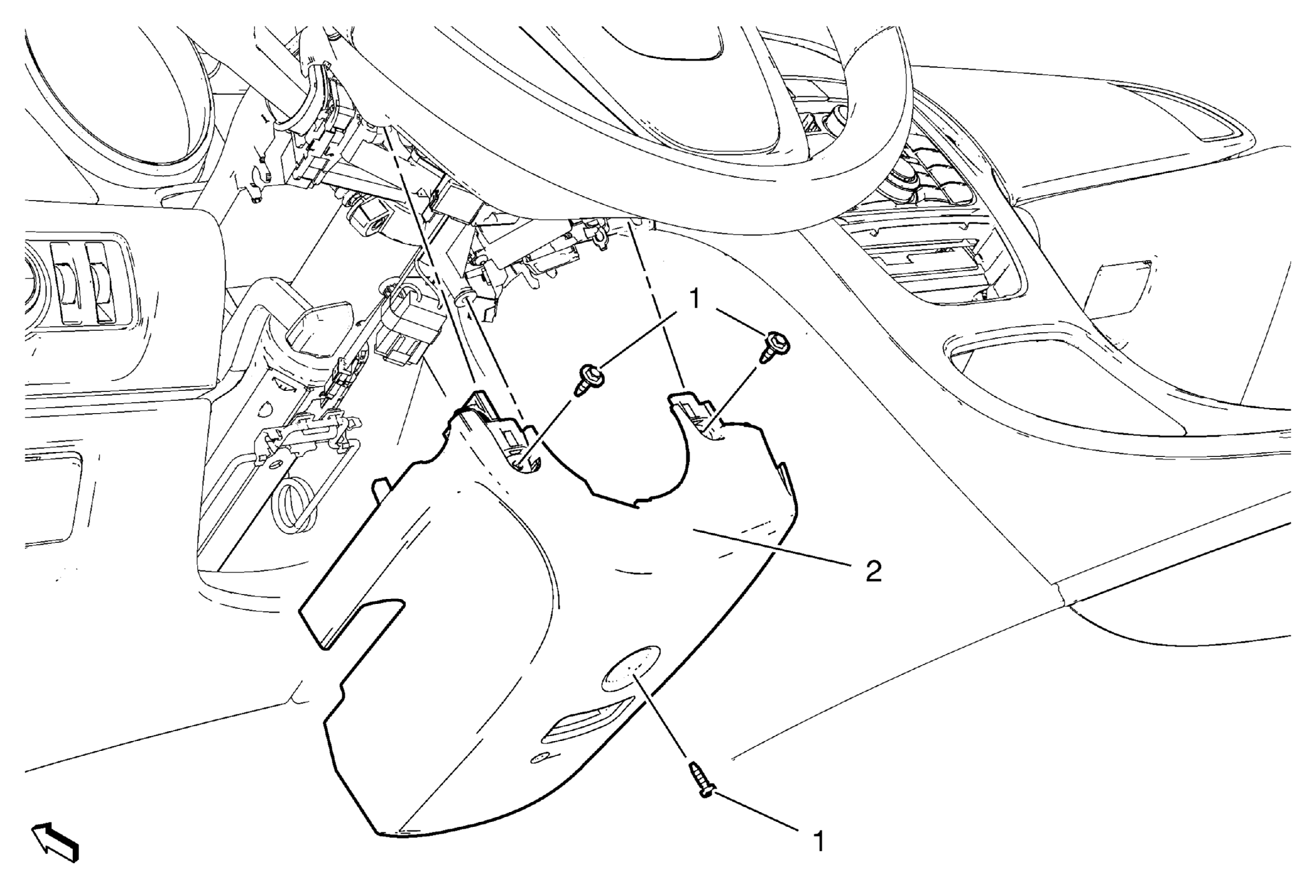

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the steering column upper trim cover. Refer to Steering Column Upper Trim Cover Replacement . |
|
| 1 | Steering Column Lower Trim Cover Bolt (Qty: 3)
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 2 | Steering Column Lower Trim Cover Procedure Turn the steering wheel until the bolts are reachable. |
