Transmission Housing Components

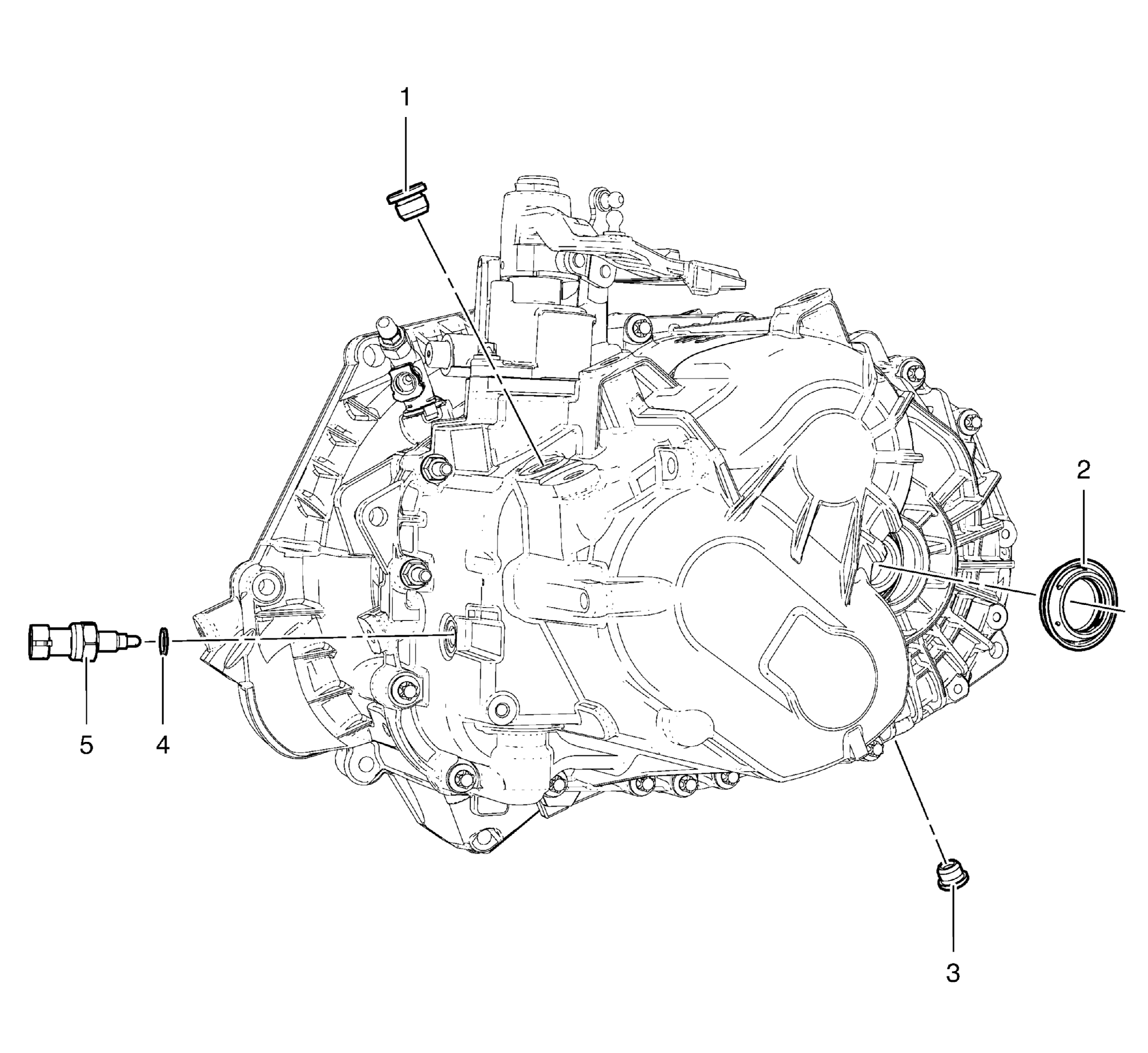

Fig 1: Transmission Housing Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Transmission Oil Filler Plug
2	Front Wheel Drive Shaft Oil Seal
3	Transmission Oil Drain Plug
4	Backup Lamp Switch Washer
5	Backup Lamp Switch
