Shift Lock Control Wiring Schematics
›
Shift Lock Control Wiring Schematics
Shift Lock Control Wiring Schematics

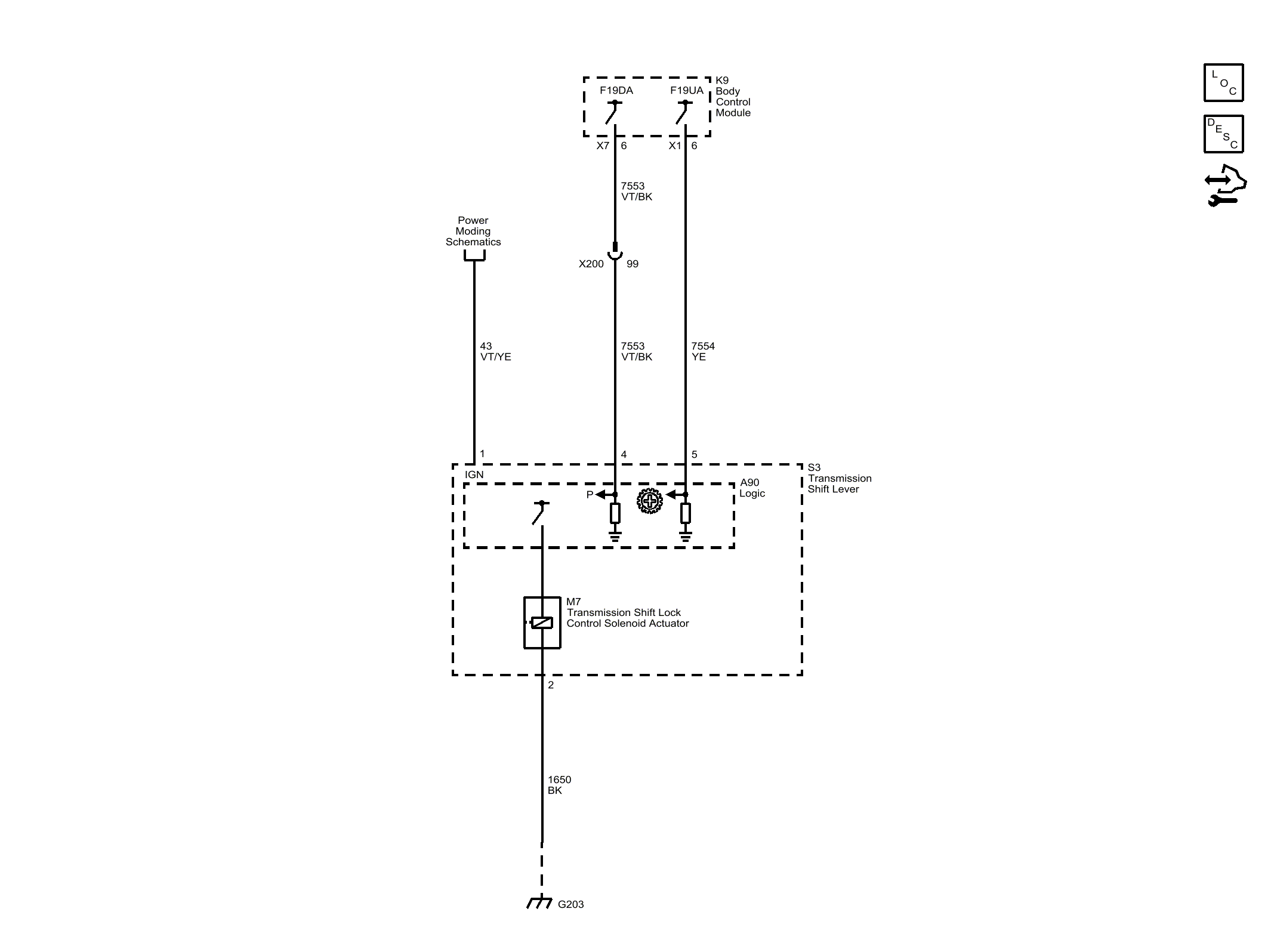

Fig 1: Shift Lock Control Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
