Air Cleaner Outlet Duct Replacement

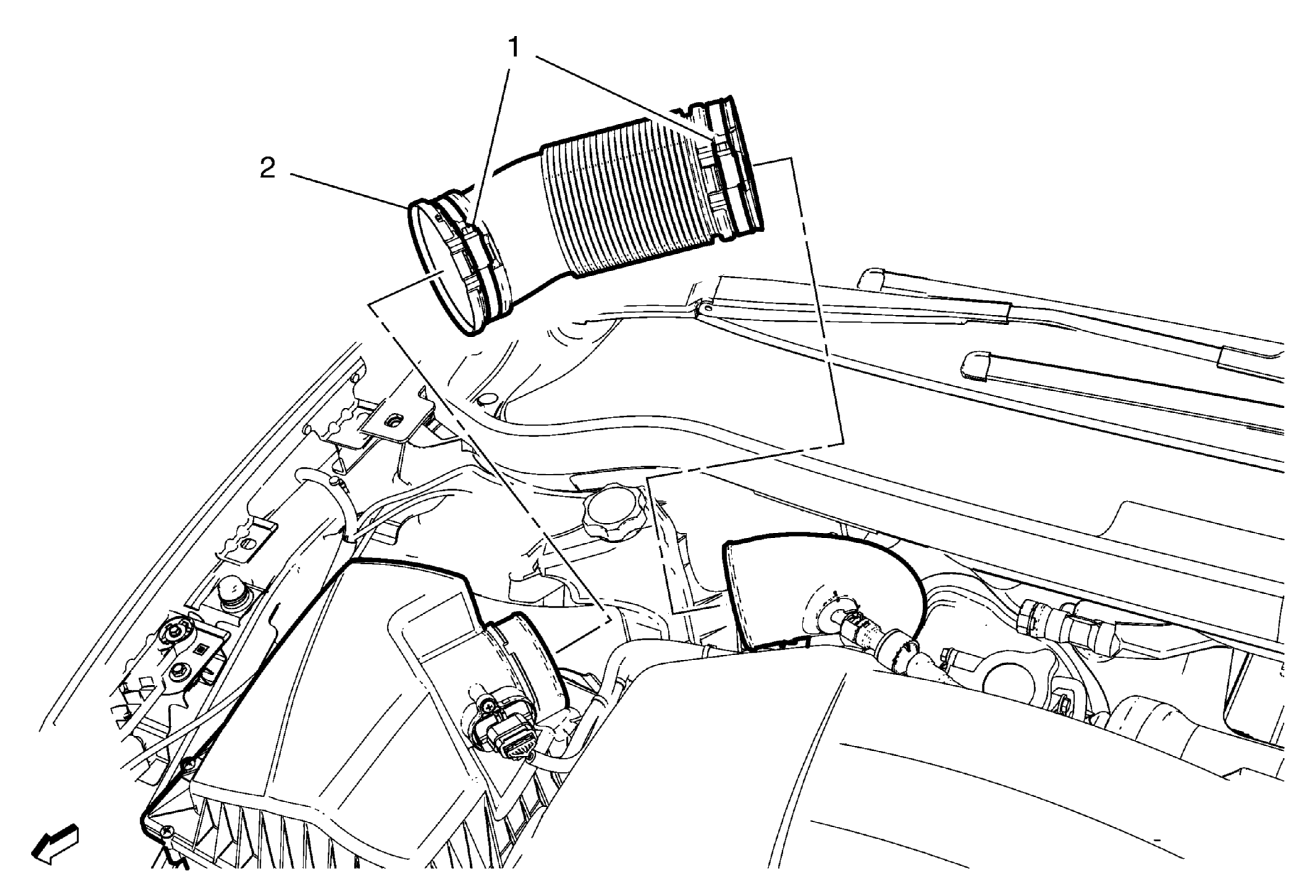

Fig 1: Air Cleaner Outlet Duct

Courtesy of GENERAL MOTORS COMPANY

Air Cleaner Outlet Duct Replacement

Callout	Component Name
Preliminary Procedure  Remove the engine sight shield. Refer to Engine Sight Shield Replacement .
1	Air Cleaner Outlet Duct Clamp (Qty: 2)
2	Air Cleaner Outlet Duct
