Linear Interconnect Network (LIN) Wiring Schematics

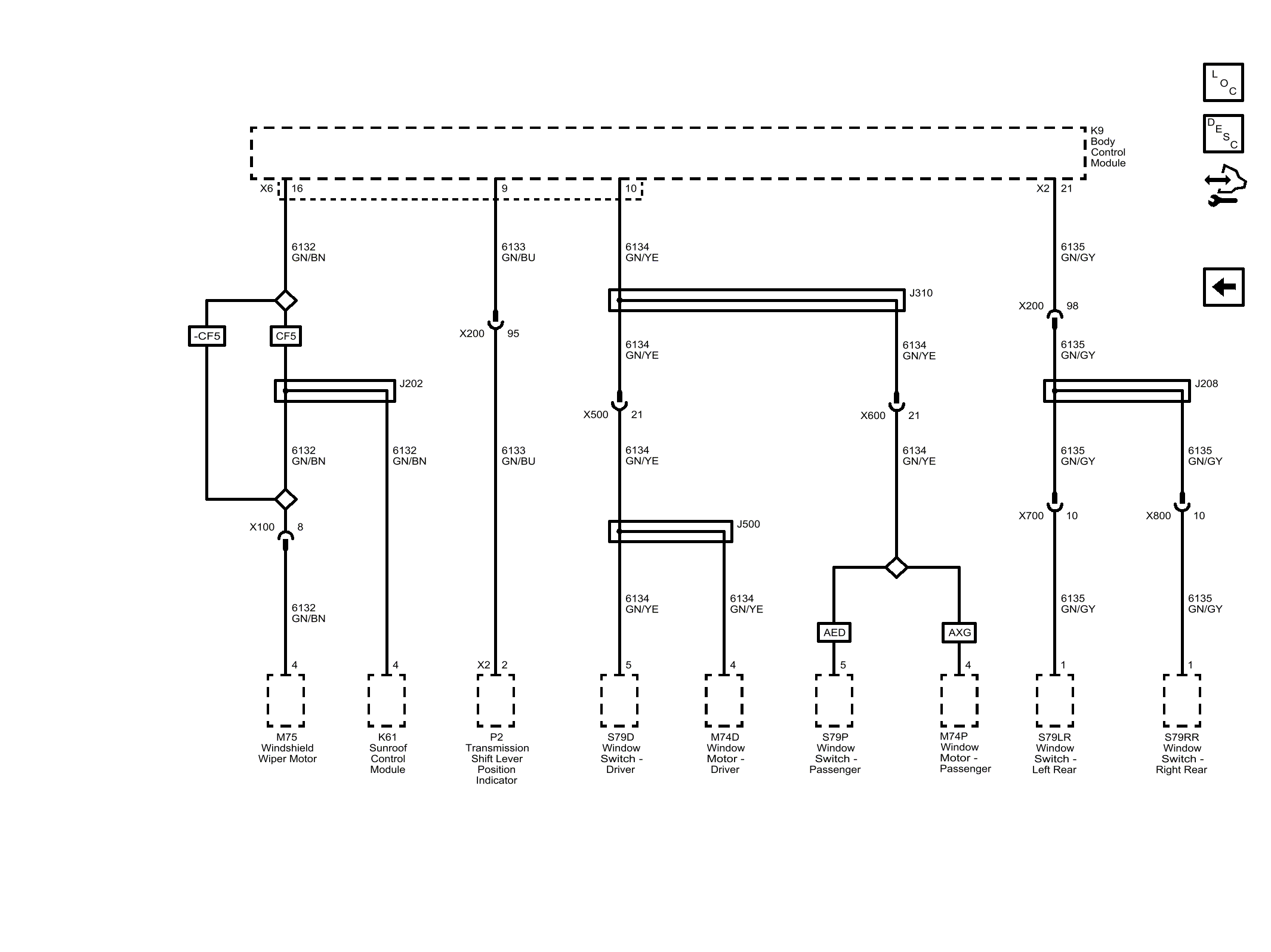

Fig 1: Linear Interconnect Network (LIN) Wiring Schematic
GM3336851Courtesy of GENERAL MOTORS COMPANY
