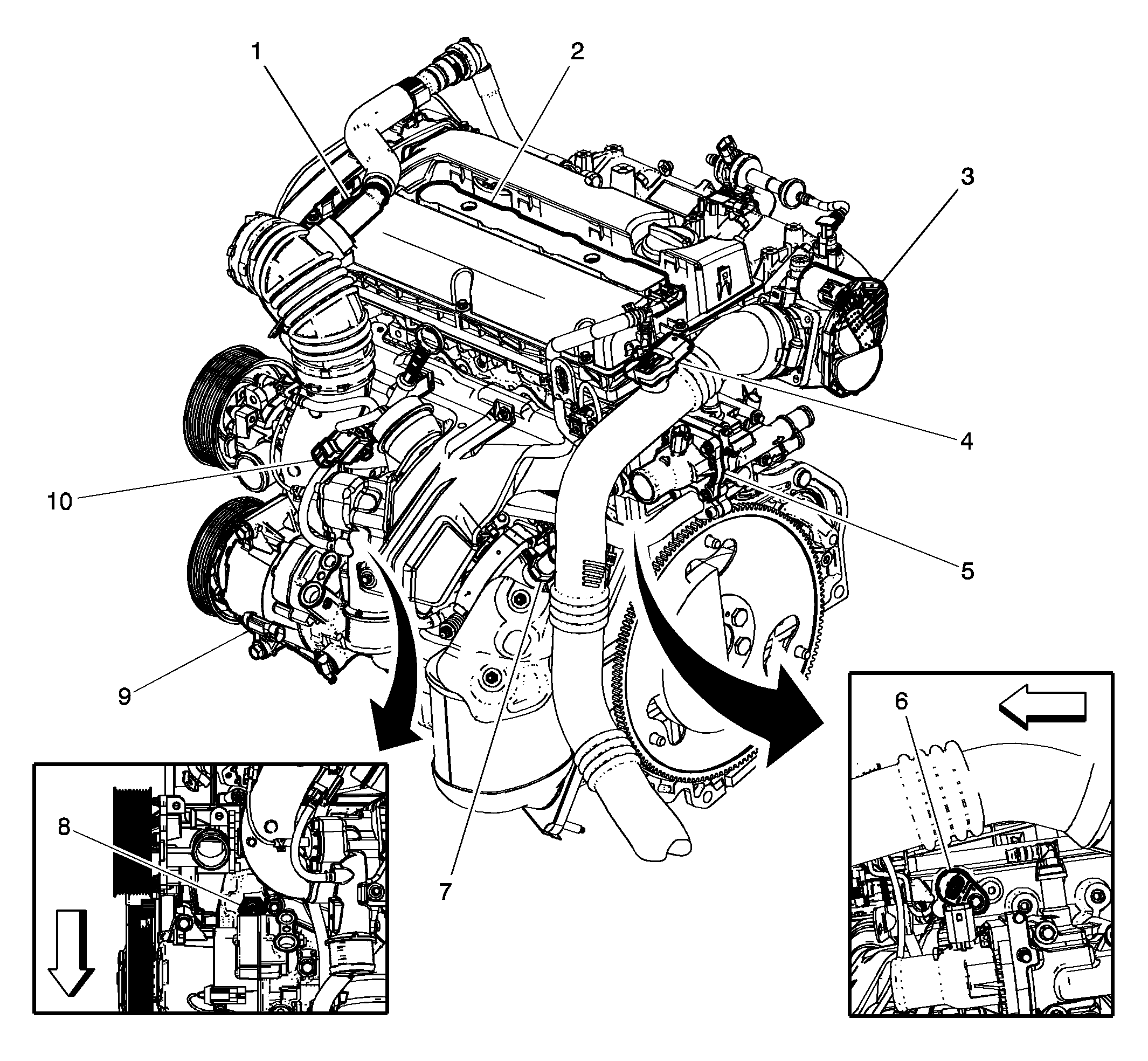

Engine Components - Front (LLU)
Engine Components - Front (LLU)
| Items |
|---|
| 1: E45 Positive Crankcase Ventilation Heater (LLU) E45 Positive Crankcase Ventilation Heater LLU |
| 2: K35 Ignition Coil Module (LLU) |
| 3: Q38 Throttle Body |
| 4: B111B Turbocharger Boost/Intake Air Temperature Sensor (LDK/LTG/LLU) |
| 5: E41 Engine Coolant Thermostat Heater (LLU) |
| 6: B23 Camshaft Position Sensor (LLU) B23 Camshaft Position Sensor LLU |
| 7: B52A Heated Oxygen Sensor 1 |
| 8: B37 Engine Oil Pressure Switch |
| 9: Q46 A/C Compressor Solenoid Valve |
| 10: Q42 Turbocharger Wastegate Solenoid Valve (LTG/LDK/ LLU) |
