Outside Rearview Mirror Glass Replacement

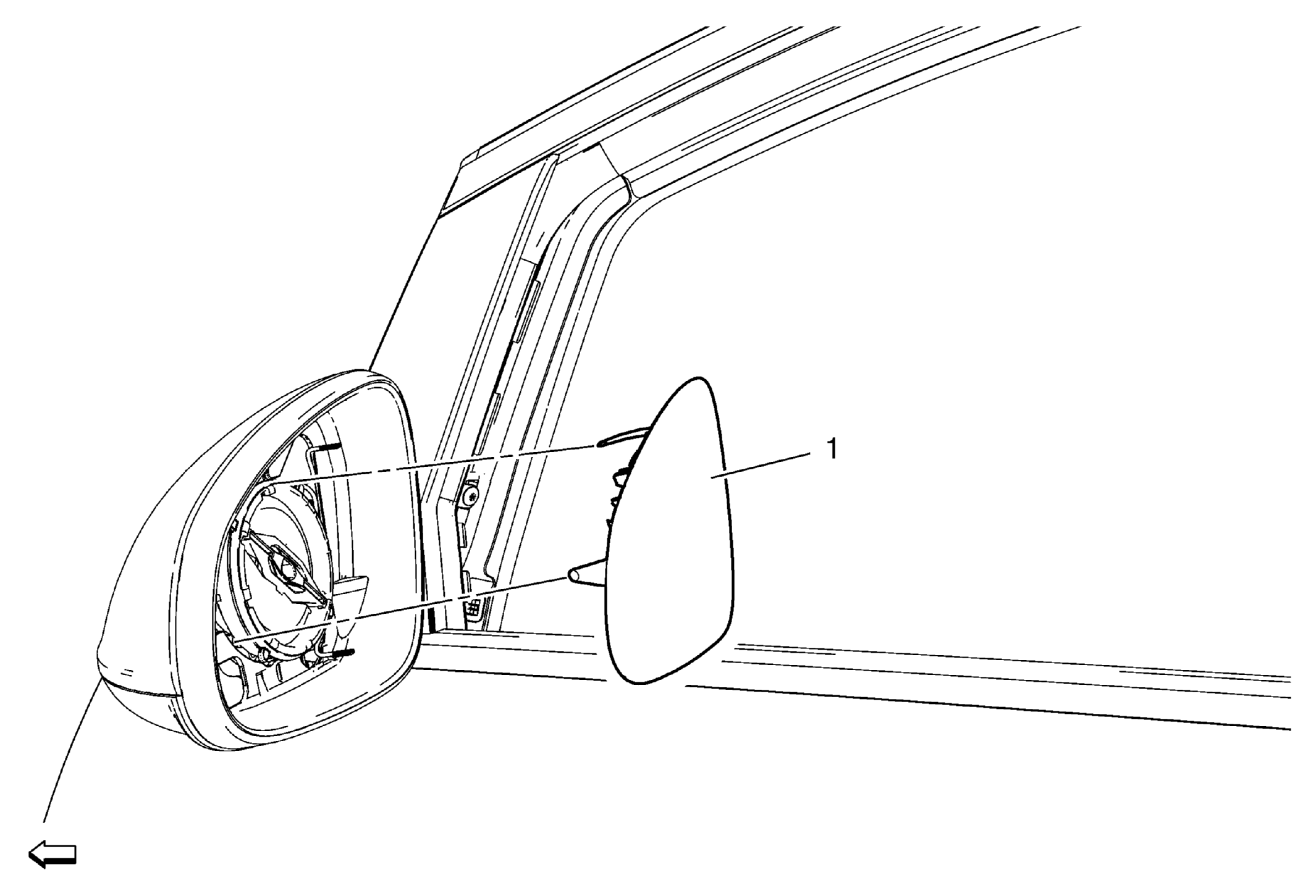

Fig 1: Outside Rearview Mirror Glass

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Outside Rearview Mirror Glass WARNING: Refer to Glass and Sheet Metal Handling Warning . Procedure Release the mirror glass backing from the mirror housing by pulling outward. Disconnect the power wire harness electrical connector.
