Rear Side Door Window Regulator Replacement

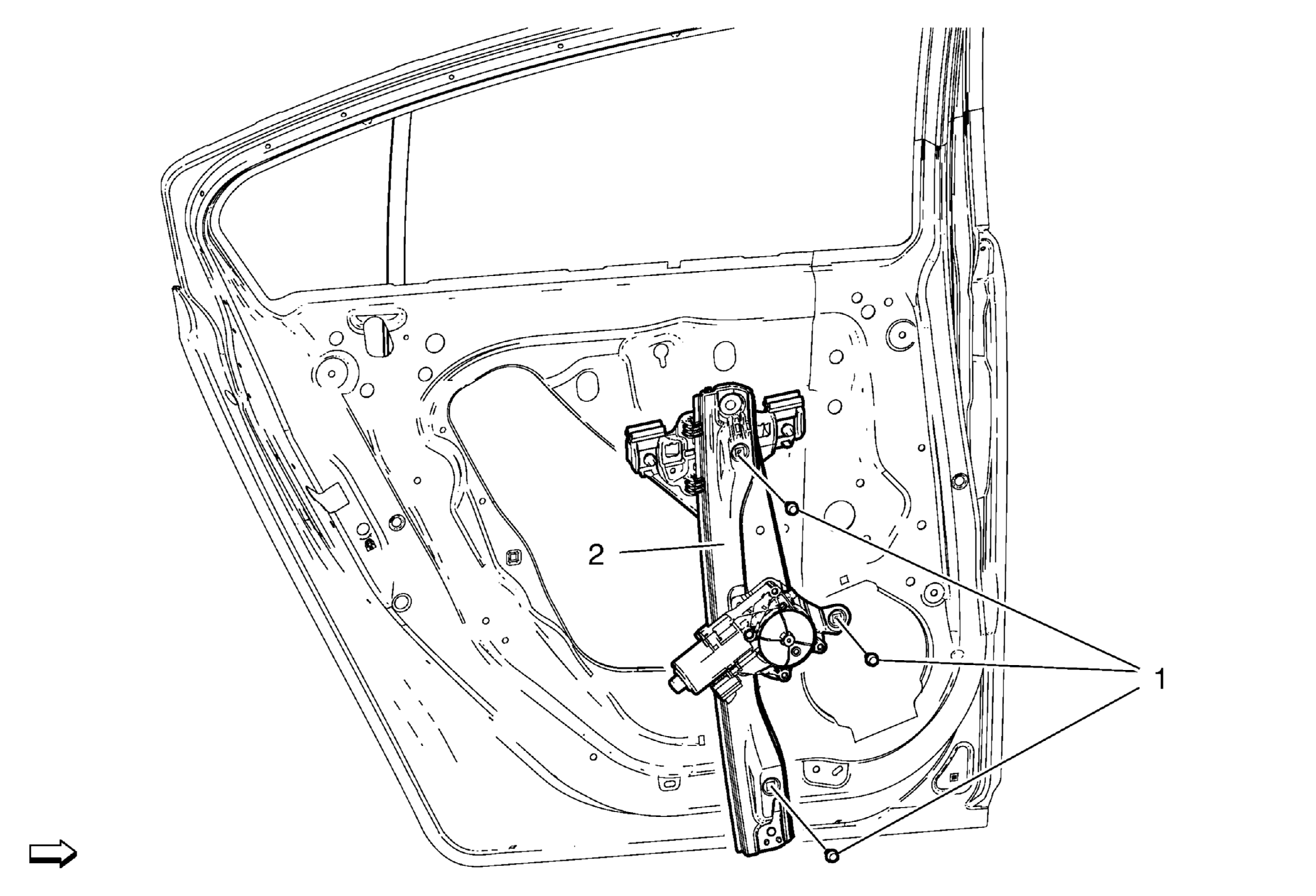

Fig 1: Rear Side Door Window Regulator Assembly

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the rear side door water deflector. Refer to Rear Side Door Water Deflector Replacement .
1	Rear Side Door Window Regulator Screw (Qty: 3) CAUTION: Refer to Fastener Caution . Procedure  After detaching window from regulator, manually move window to it's full up position and securely tape to window frame. Tighten  9 N.m (80 lb in)
2	Rear Side Door Window Regulator Assembly Procedure  Remove all components as needed.
