Home › Buick › 2015 › Verano Base › Repair and Diagnosis › Body & Frame › Windows › Fixed And MOVEABLE Window System › Schematic Wiring Diagrams › Defogger Wiring Schematics › Defogger

Defogger Wiring Schematics: Defogger

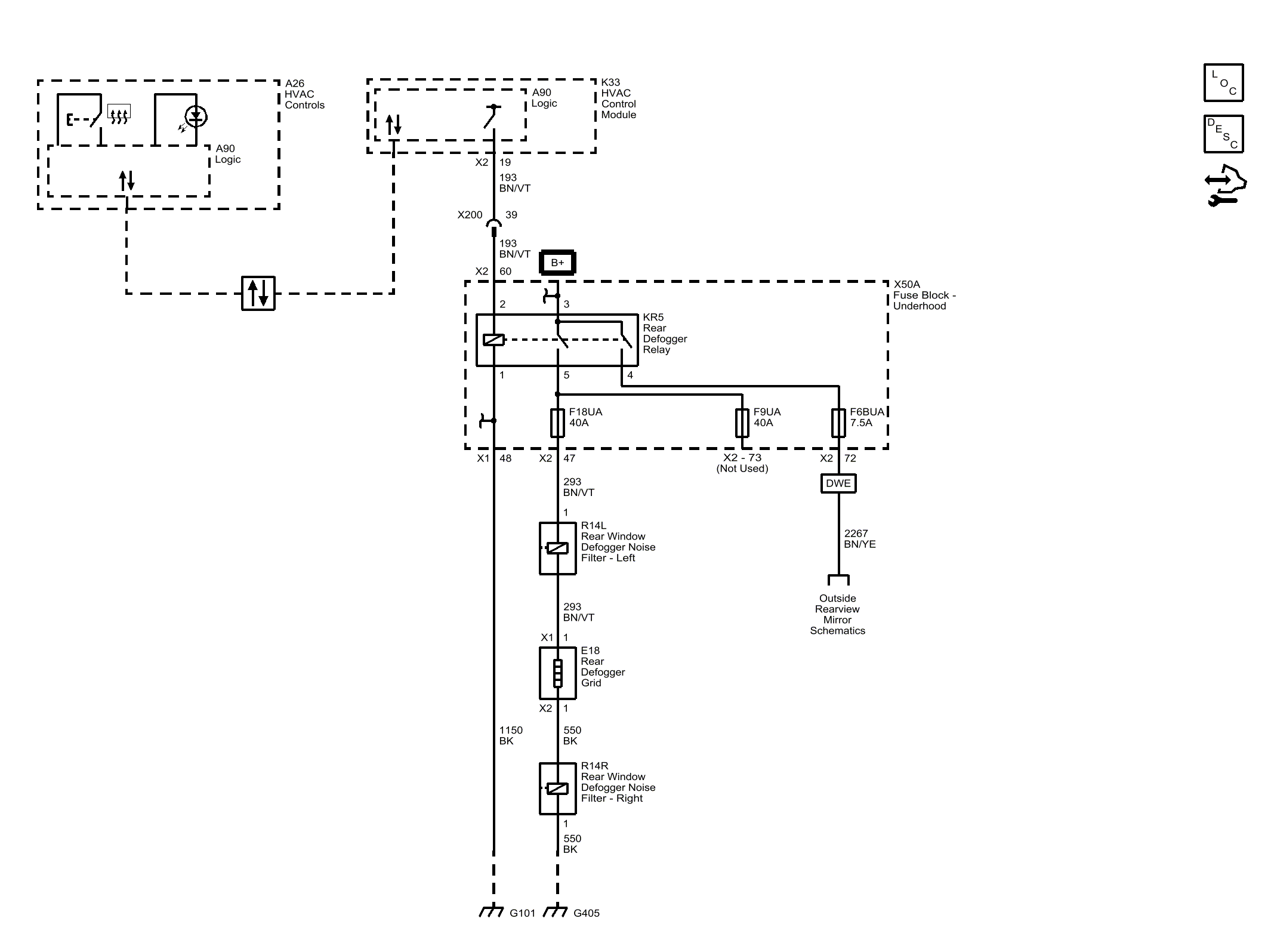

Fig 1: Defogger
GM3801961Courtesy of GENERAL MOTORS COMPANY
