Home › Buick › 2015 › Verano Base › Repair and Diagnosis › Body & Frame › Windows › Fixed And MOVEABLE Window System › Schematic Wiring Diagrams › Moveable Window Wiring Schematics › Driver

Moveable Window Wiring Schematics: Driver

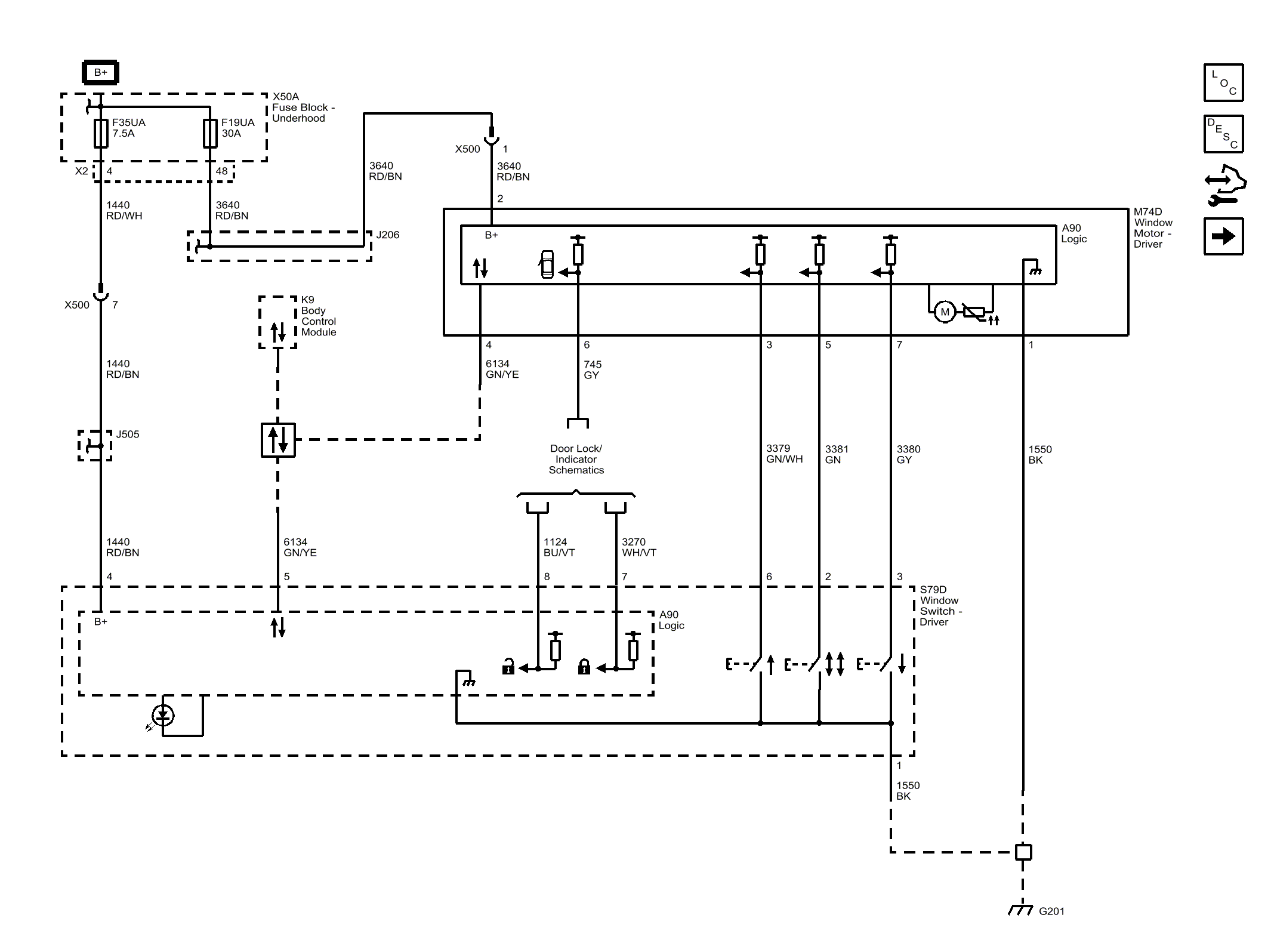

Fig 1: Driver
GM3801960Courtesy of GENERAL MOTORS COMPANY
