Left Front Wheel Well Components

Left Front Wheel Well Components

Items
1: P12 Horn P12 Horn
2: B118B Windshield Washer Fluid Level Switch B118B Windshield Washer Fluid Level Switch
3: G24 Windshield Washer Pump G24 Windshield Washer Pump

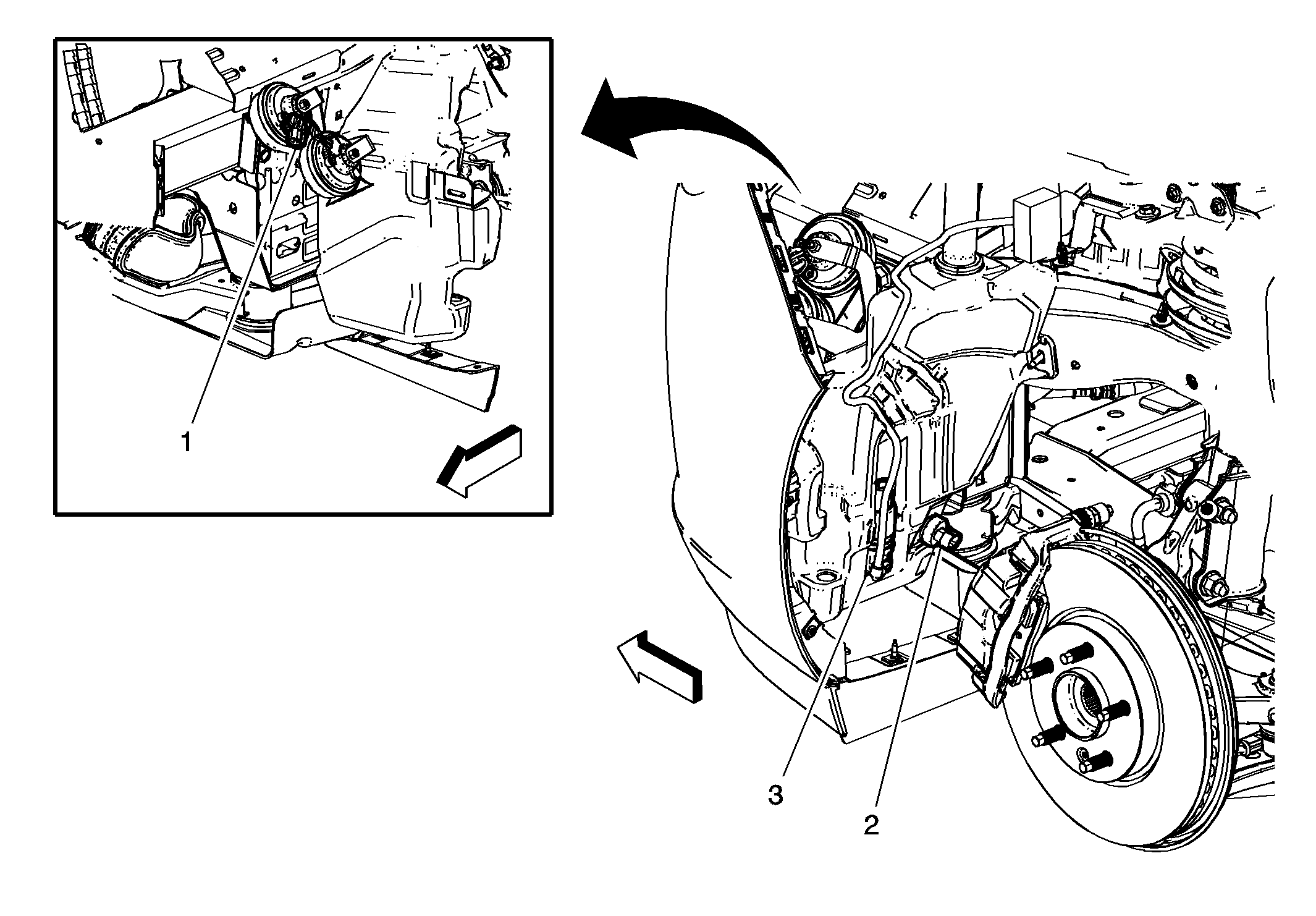

Fig 1: Left Front Wheel Well Components
GM3814962Courtesy of GENERAL MOTORS COMPANY
