Object Detection Wiring Schematics
›
Front and Side Object Sensors (UDP)
Front and Side Object Sensors (UDP)

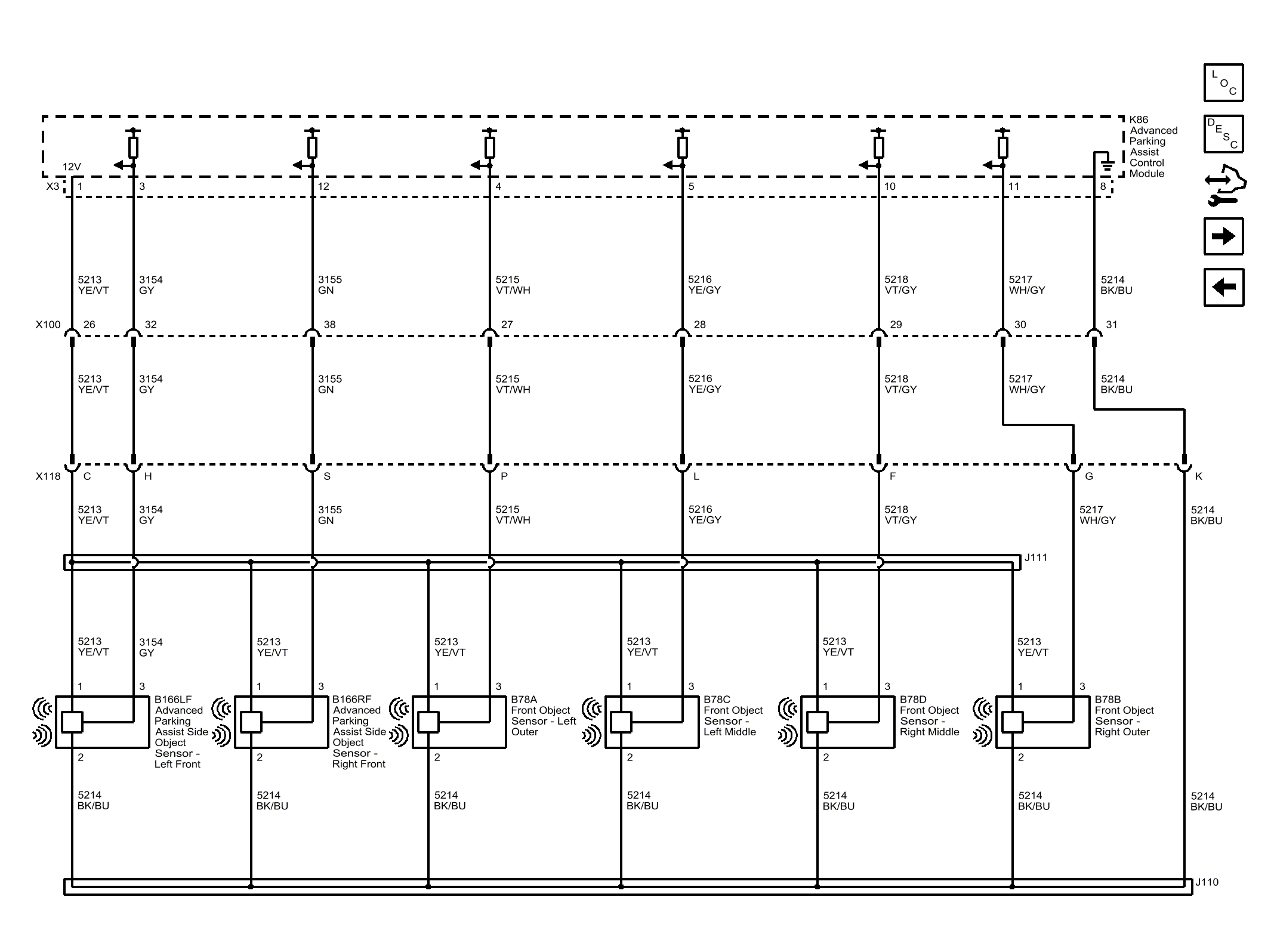

Fig 1: Front and Side Object Sensors (UDP)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
