Buick
›
2016
›
Cascada Base
›
Repair and Diagnosis
›
Accessories & Equipment
›
Collision/Avoidance
›
Object Detection System And Pedestrian Protection System
›
Schematic Wiring Diagrams
›
Object Detection Wiring Schematics
›
Power, Ground, Serial Data, Controls and Display
Power, Ground, Serial Data, Controls and Display

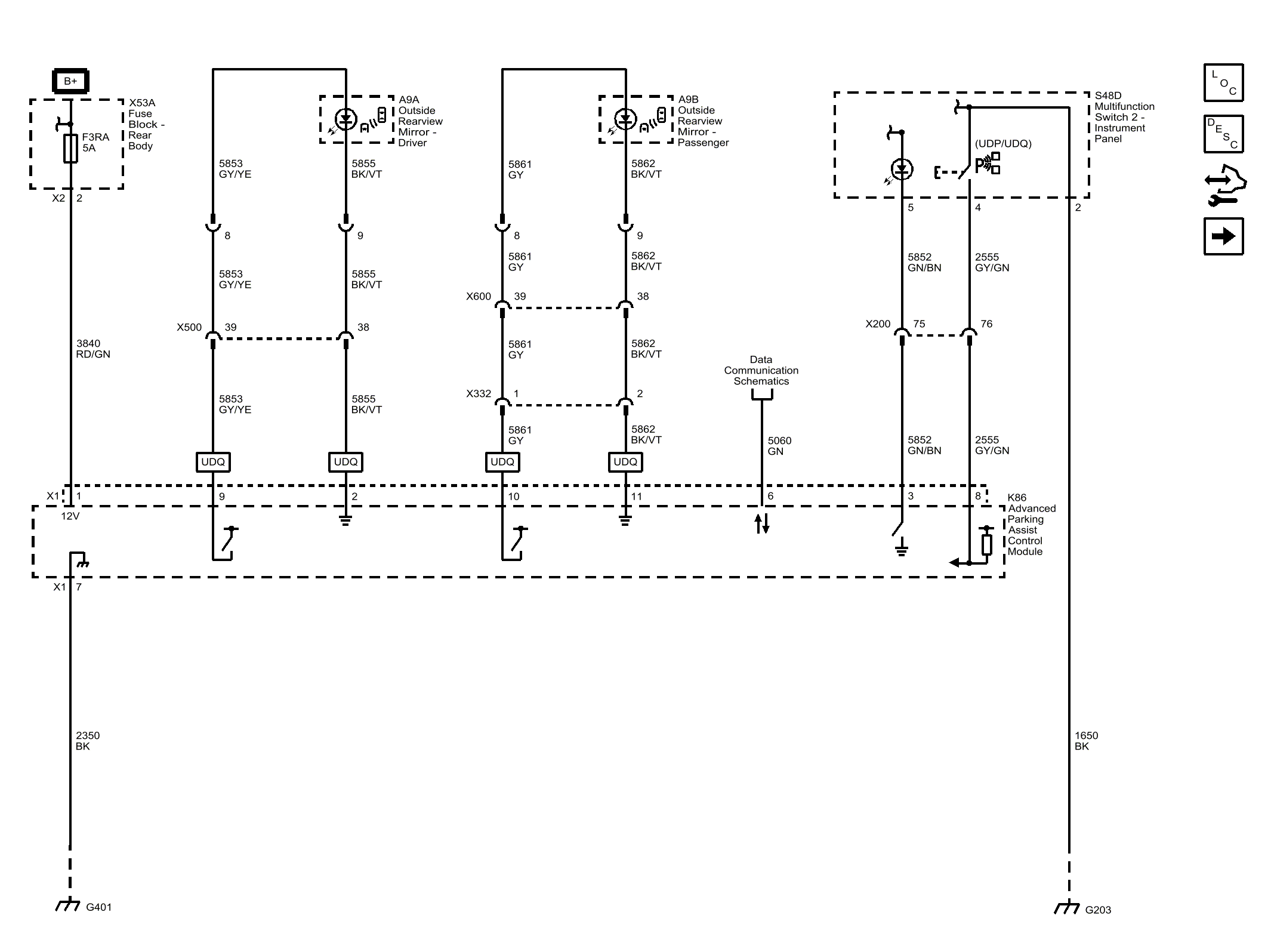

Fig 1: Power, Ground, Serial Data, Controls and Display
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
