Vehicle Direction Camera (UFL)

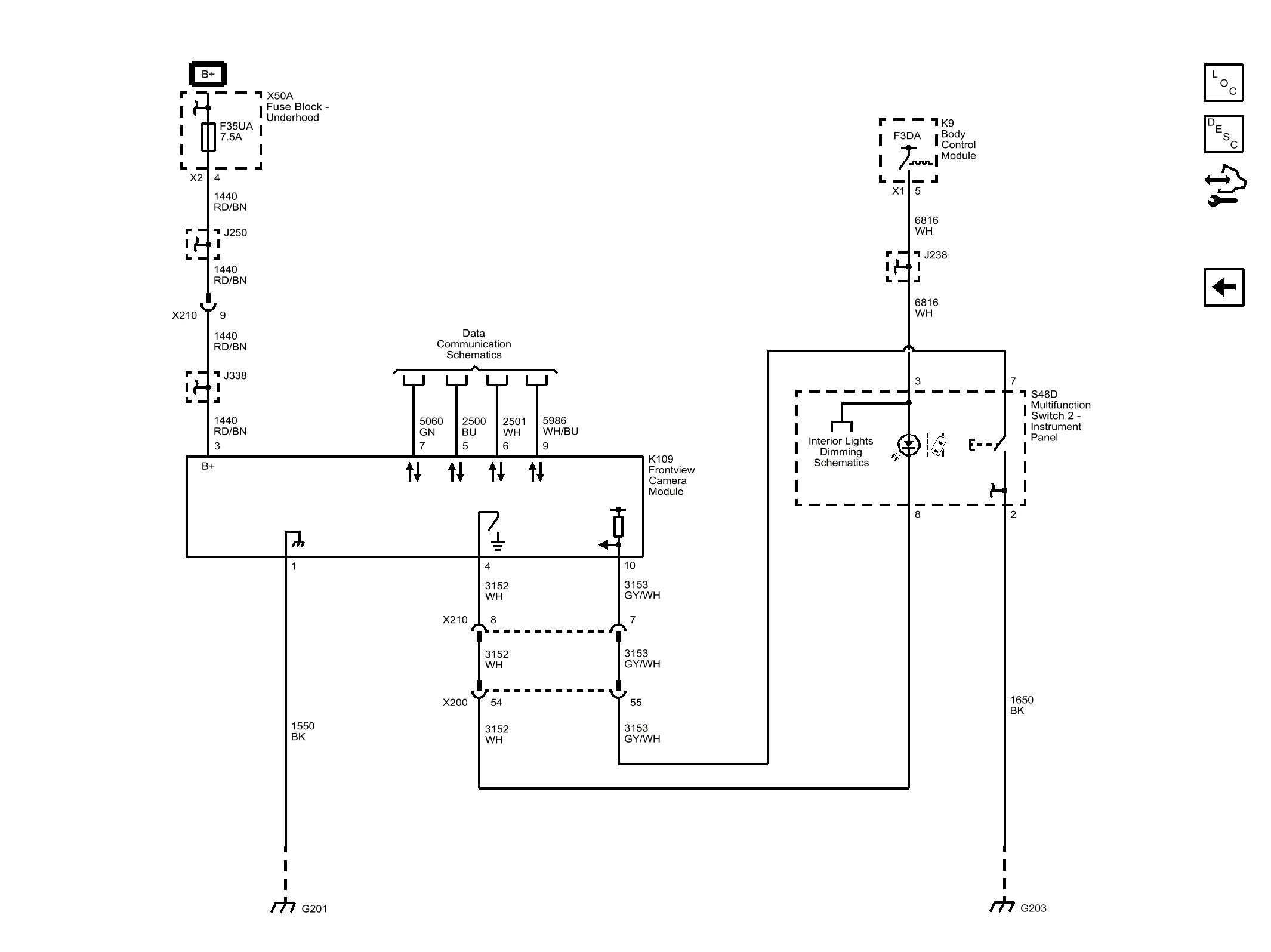

Fig 1: Vehicle Direction Camera (UFL)
GM4212421Courtesy of GENERAL MOTORS COMPANY
