Remote Control Door Lock Receiver Replacement

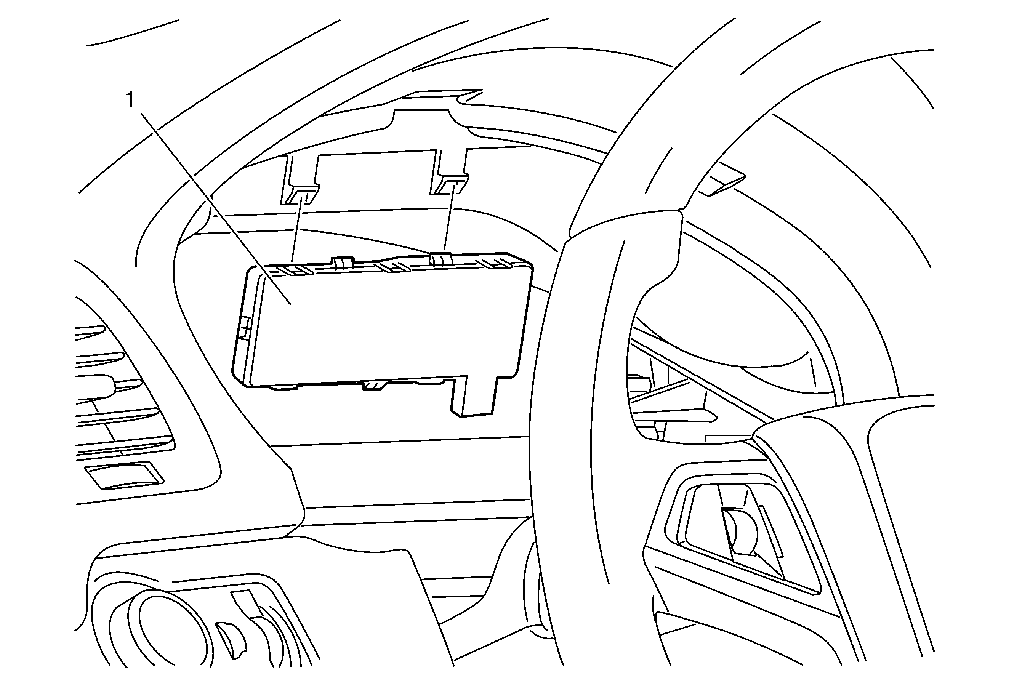

Fig 1: Remote Control Door Lock Receiver
GM2193992Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the instrument cluster. Refer to Instrument Cluster Replacement .
1 Remote Control Door Lock Receiver

Procedure

  1. Disconnect the electrical connector.
  2. Unsnap the lock receiver from the instrument panel.
