Removal Procedure

    Fig 1: Quarter Inner Trim Finish Panel - Left Side
    GM2949064Courtesy of GENERAL MOTORS COMPANY
  1. Remove the quarter inner trim finish panel - left side (4). Refer to Quarter Inner Trim Finish Panel Replacement - Left Side .
    2. Fig 2: Rear Seat Back Armrest Hinge Bracket And Clip
    GM3011724Courtesy of GENERAL MOTORS COMPANY
  2. Remove the retainer clip (2).
  3. Remove the rear seat back armrest hinge bracket (1).
    4. Fig 3: Fuse Block Bracket Nuts And Electrical Connectors
    GM3011723Courtesy of GENERAL MOTORS COMPANY
  4. Remove the 3 fuse block bracket nuts (2).
  5. Disconnect the wiring harness plug (1).

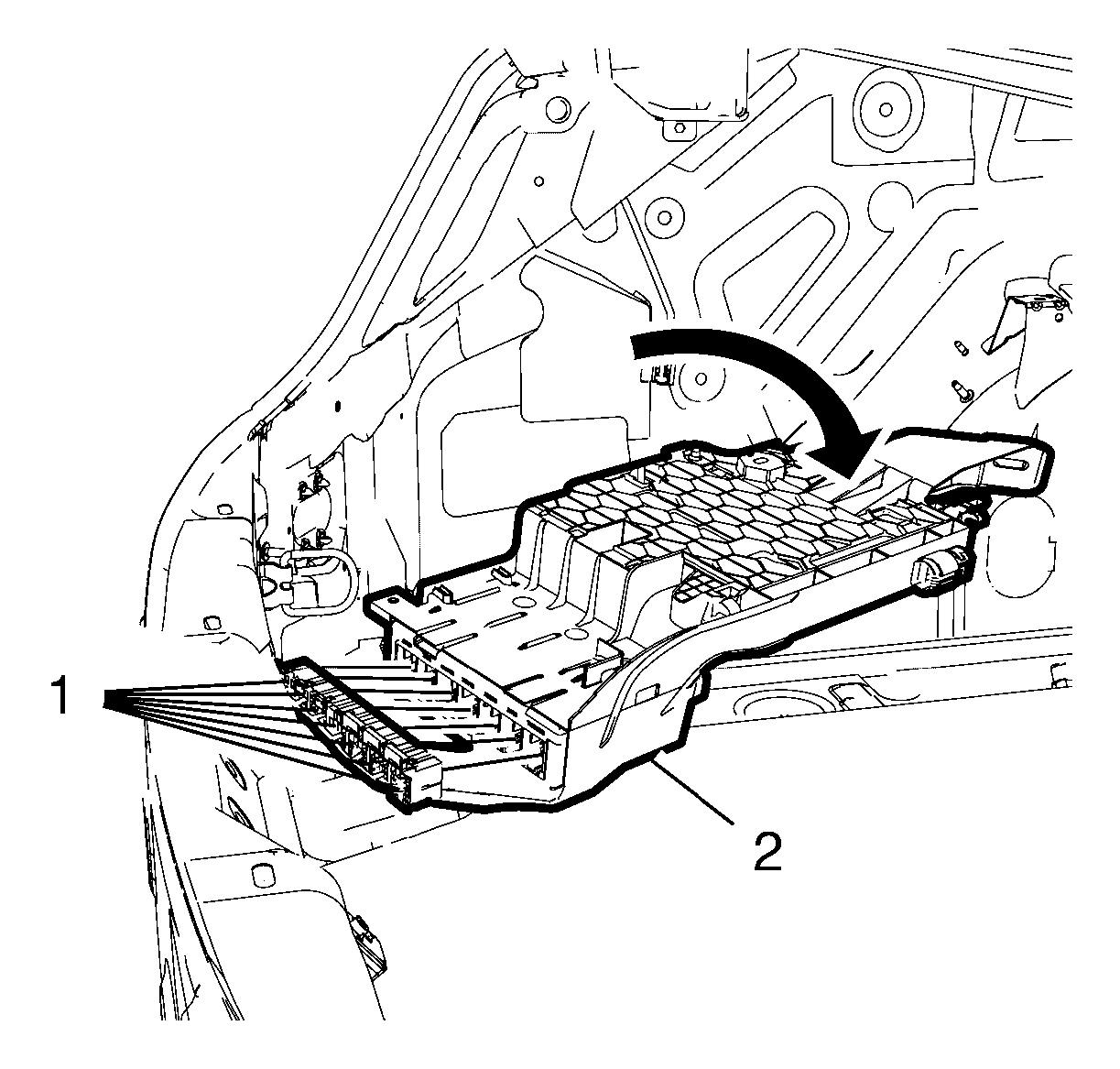

    6. Fig 4: Fuse Block Bracket
    GM3011726Courtesy of GENERAL MOTORS COMPANY
  6. Flip the fuse block bracket (2) down in a horizontal position.
  7. Disconnect 7 wiring harness plugs (1).

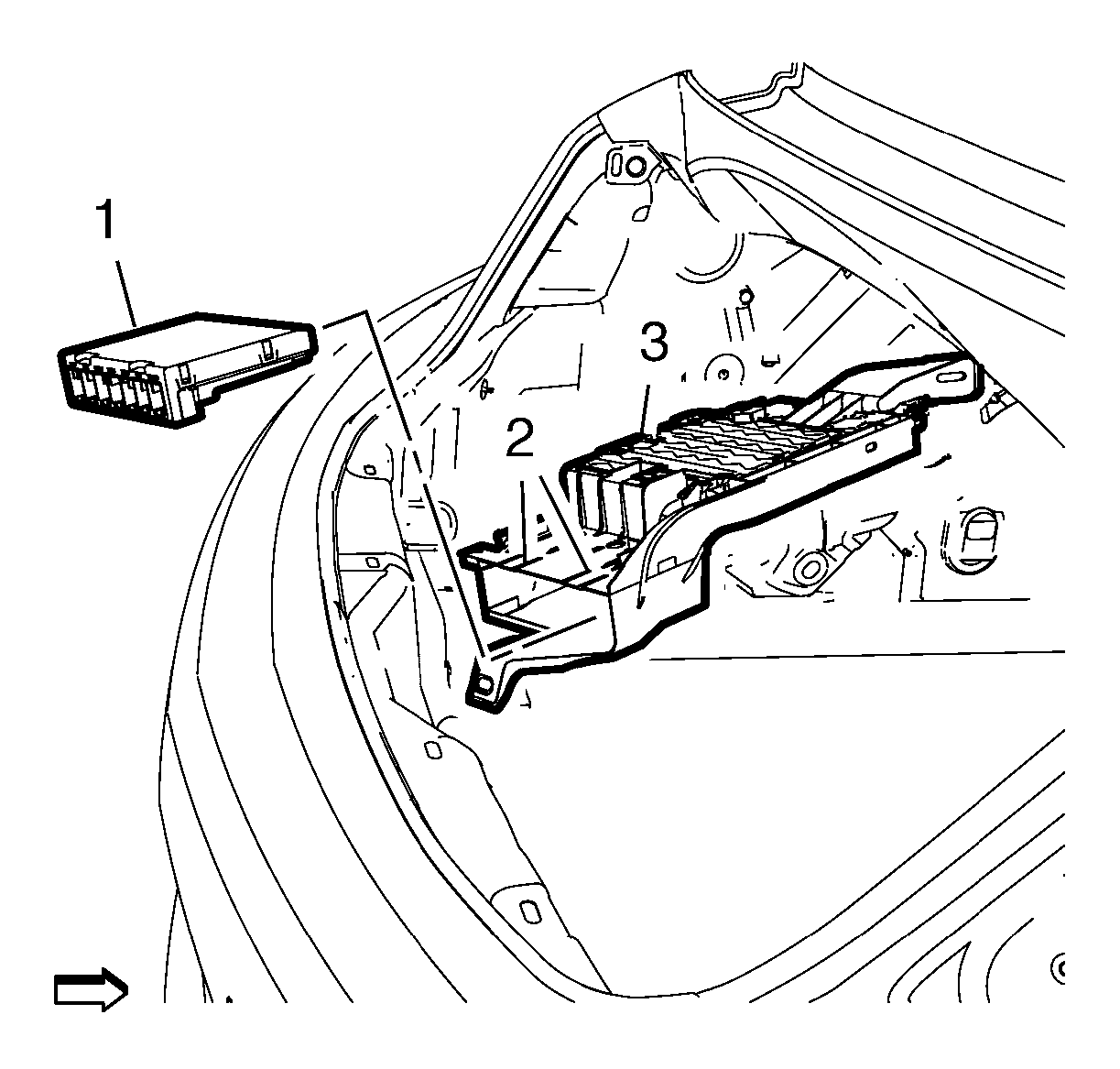

    8. Fig 5: Folding Top Multifunction Control Module
    GM3011722Courtesy of GENERAL MOTORS COMPANY
  8. Unlock the 2 mounting brackets with an suitable tool.
  9. Push the folding top multifunction control module (1) out of the fuse block bracket (3).
