Engine Coolant Temperature Sensor Replacement - Radiator Side

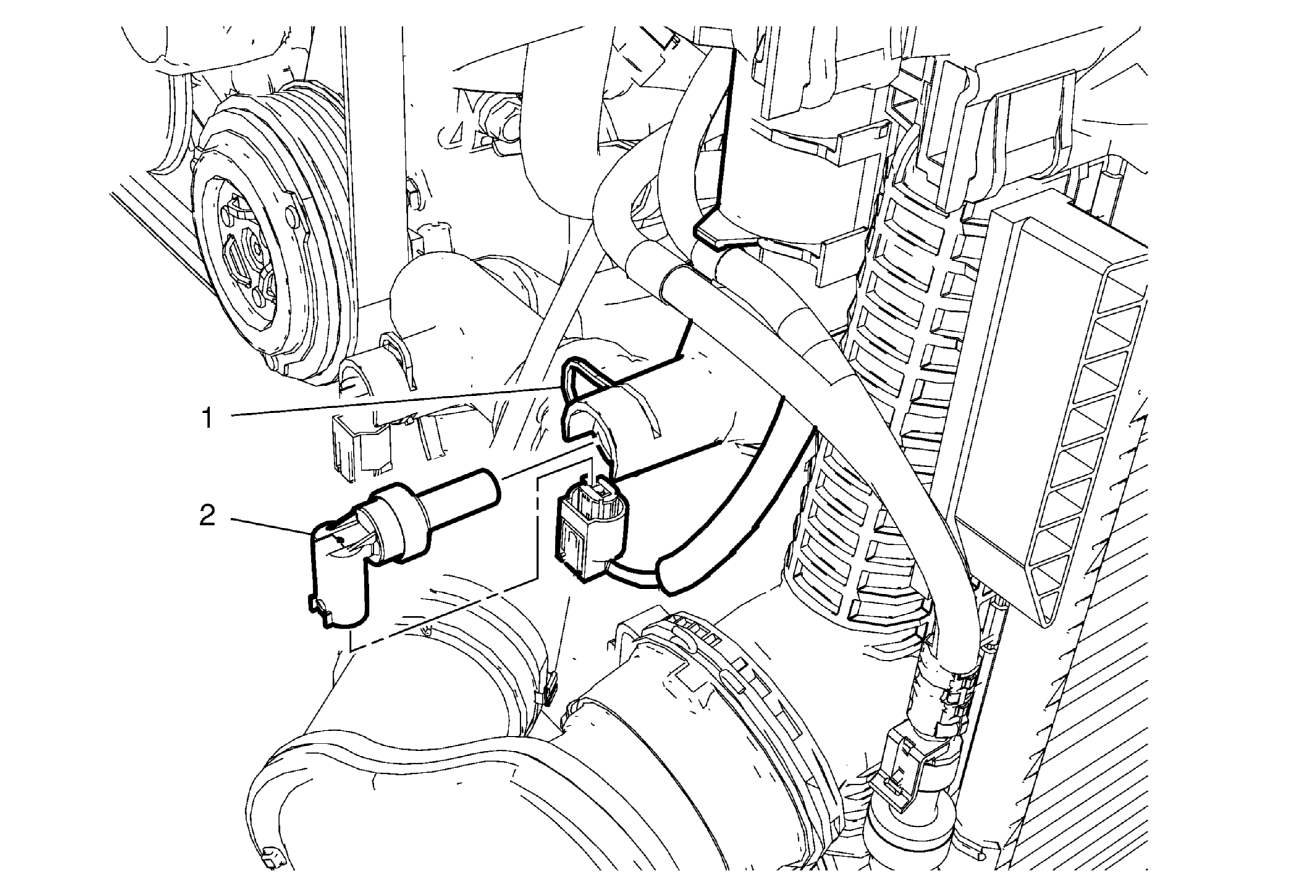

Fig 1: Engine Coolant Temperature Sensor - Radiator Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Drain the cooling system. Refer to Cooling System Draining and Filling . Remove the front pumper fascia. Refer to Front Bumper Fascia Replacement Disconnect the electrical connector.
1	Retaining Clamp
2	Engine Coolant Temperature Sensor - Radiator Side

Callout

Component Name

Preliminary Procedures

Retaining Clamp

Engine Coolant Temperature Sensor - Radiator Side
