Installation Procedure

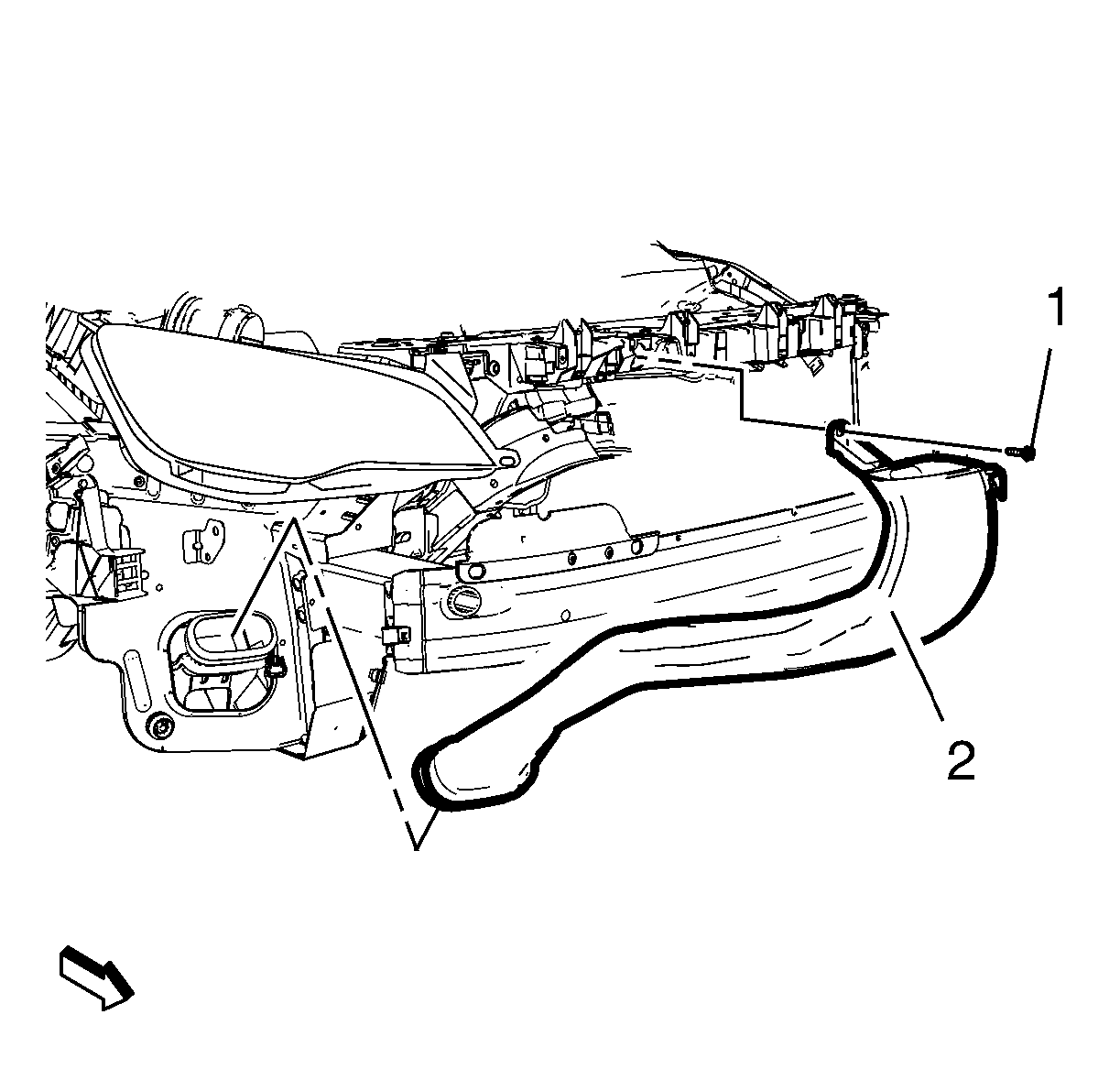

    Fig 1: Front Intake Air Duct Bolt
    GM2190229Courtesy of GENERAL MOTORS COMPANY
  1. Install the front intake air duct (2).
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install and tighten the front intake air duct bolt (1).

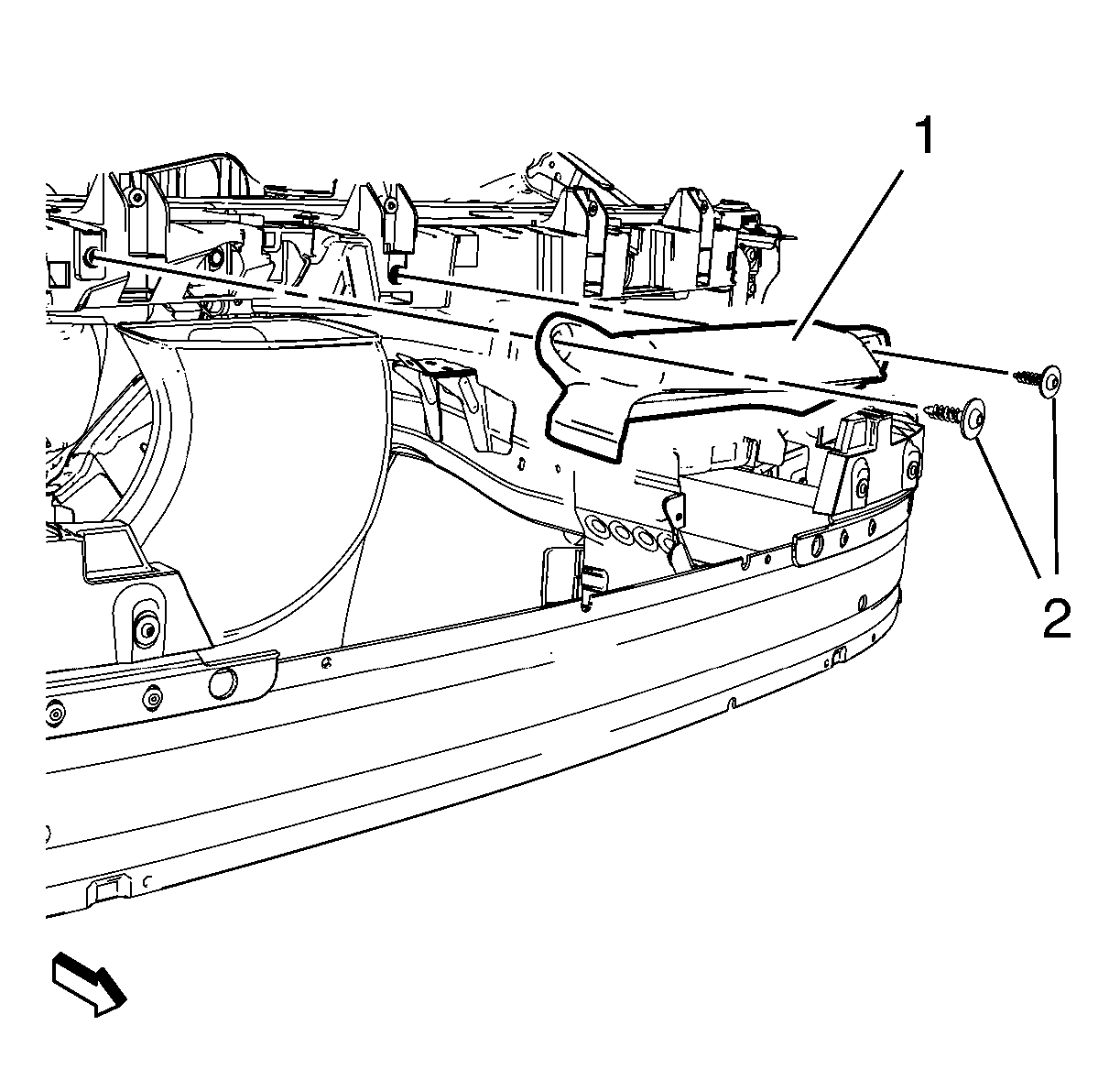

    3. Fig 2: Front Intake Air Duct Splash Shield Bolts
    GM2190228Courtesy of GENERAL MOTORS COMPANY
  3. Install the front intake air duct splash shield (1).
  4. Install and tighten the 2 front intake air duct splash shield bolts (2).
  5. Install the front bumper fascia. Refer to Front Bumper Fascia Guide Replacement (Inner)Front Bumper Fascia Guide Replacement (Outer) .
  6. Install the front bumper fascia. Refer to Front Bumper Fascia Replacement .
