Communication Enable Distribution

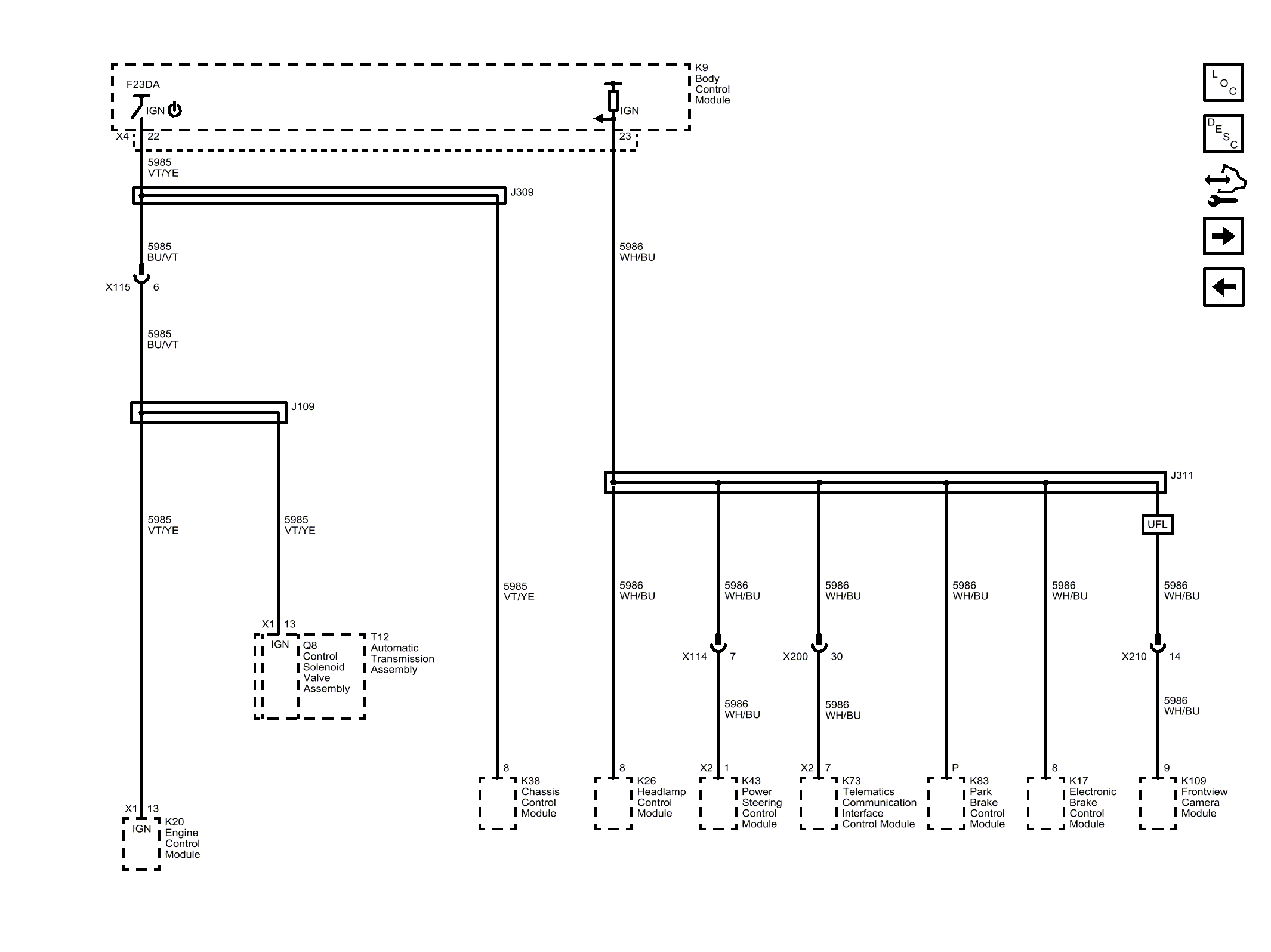

Fig 1: Communication Enable Distribution
GM4212014Courtesy of GENERAL MOTORS COMPANY
