Low Speed CAN
Low Speed CAN

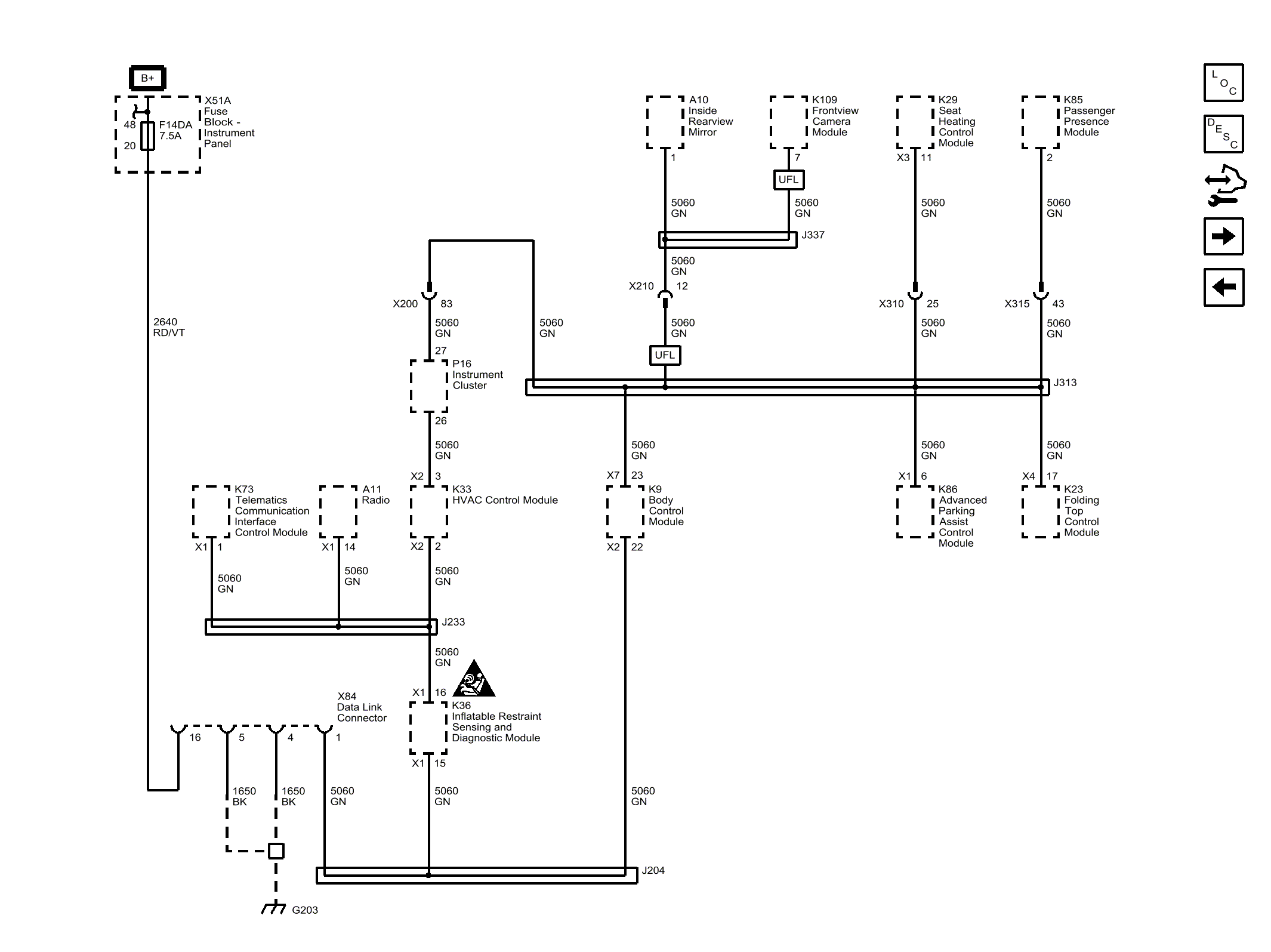

Fig 1: Low Speed CAN
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
